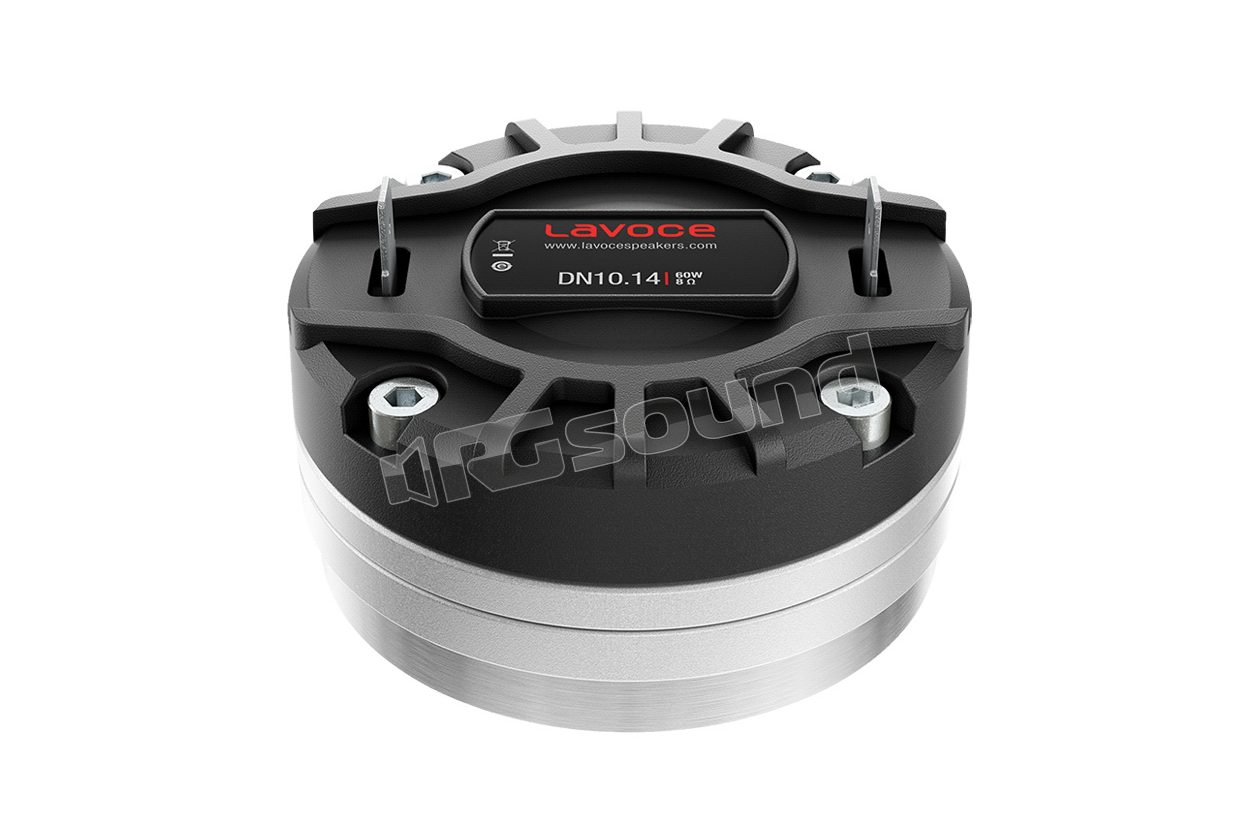

DN10.14 1"/25mm High Frequency Tweeter

LaVoce
Your price:
€ 75,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
1500-20000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
0,5 Kg
Voice Coil Diameter
36 mm

LaVoce DN10.14 High Frequency Tweeter 1"/25mm


LaVoce code 70R03103

DN10.14 Features

  • Voice coil approx. 1.4 inch edgewound
  • Sensitivity 107 db/spl
  • Program power handling 60 w
  • Motor, phaseplug and diaphragm optimized fem
  • Frequency range 1500 - 20000 hz
  • High temperature polymeric diaphragm

Notes

  • Program power is defined as 3 dB higher than AES power.
  • Test with horn load for 2 hours with continuous pink noise limited in band (1700-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on axis at 2.83 V, 1 m, speaker loaded with HD1003 horn, average SPL in the frequency range 1500 - 20000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

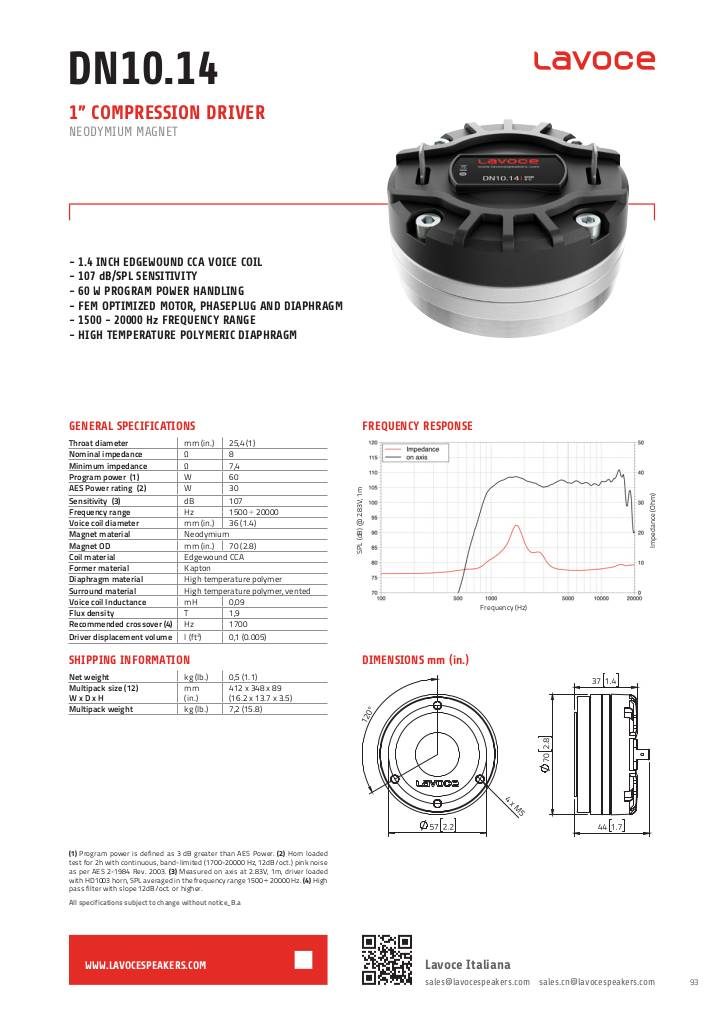

scheda tecnica

1549117683-dn1014-1.pdf

LaVoce DN10.14 Technical Specifications

  • Throat diameter mm (in) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.4
  • Program power (1) W 60
  • AES power (2) W 30
  • Sensitivity (3) dB 107
  • Frequency range Hz 1500 ÷ 20000
  • Voice coil diameter mm (in) 36 (1.4)
  • Magnet material Neodymium
  • Coil material CCA edgewound
  • Diaphragm material Kapton
  • Dome material High temperature polymer
  • Coating material High temperature polymer, vented
  • Magnet OD mm (in) 70 (2.8)
  • Voice coil inductance mH 0.09
  • Flux density T 1.9
  • Recommended crossover (4) Hz 1700
  • Driver displacement volume l (ft³) 0.1 (0.005)
  • Multipack weight kg (lb) 7.2 (15.8)
  • Multipack dimensions L x W x H 412 x 348 x 89 (16.2 x 13.7 x 3.5)
  • Net weight kg (lb) 0.5 (1.1)
