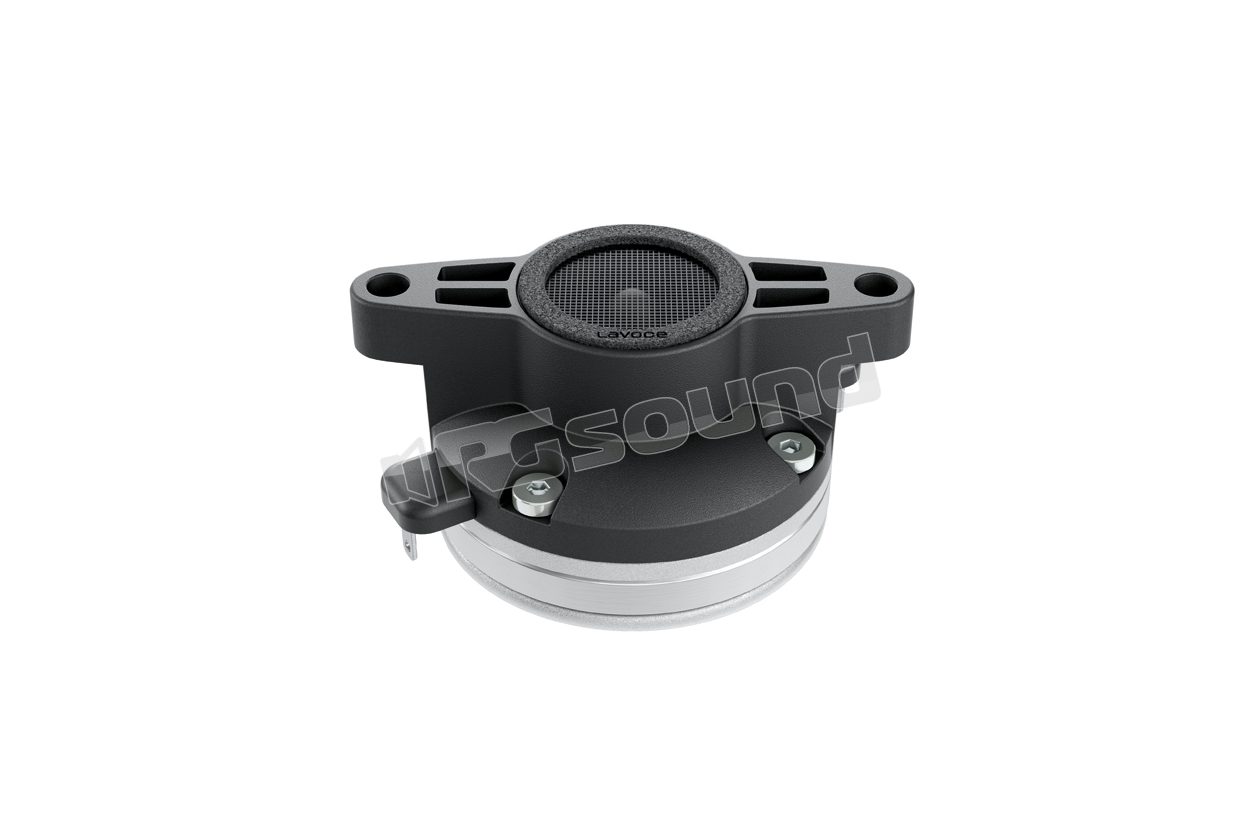

DN07.10LM 0.7"/18mm High Frequency Tweeter

LaVoce
Your price:
€ 33,10
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
2000 - 18000 Hertz
Sensitivity
109 dB
Impedance
8 Ohm
Weight
0,15 Kg
Voice Coil Diameter
25,4 mm

LaVoce DN07.10LM High Frequency Tweeter 0.7"/18mm

LaVoce code 70R53070

DN07.10LM Features

  • 1 inch CCAW voice coil
  • Sensitivity 109 db/spl
  • Program power handling 20 w
  • Motor, phaseplug and diaphragm optimized Fem
  • Frequency range 2000 - 18000 hz
  • Polyester diaphragm

Notes

  • Program power is defined as 3 dB above AES power.
  • Test with horn load for 2 hours with continuous pink noise and band limited (2500-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on-axis at 2.83 V, 1 m, speaker loaded with 60°x 40° horn, average SPL in the frequency range 2000 ÷ 18000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

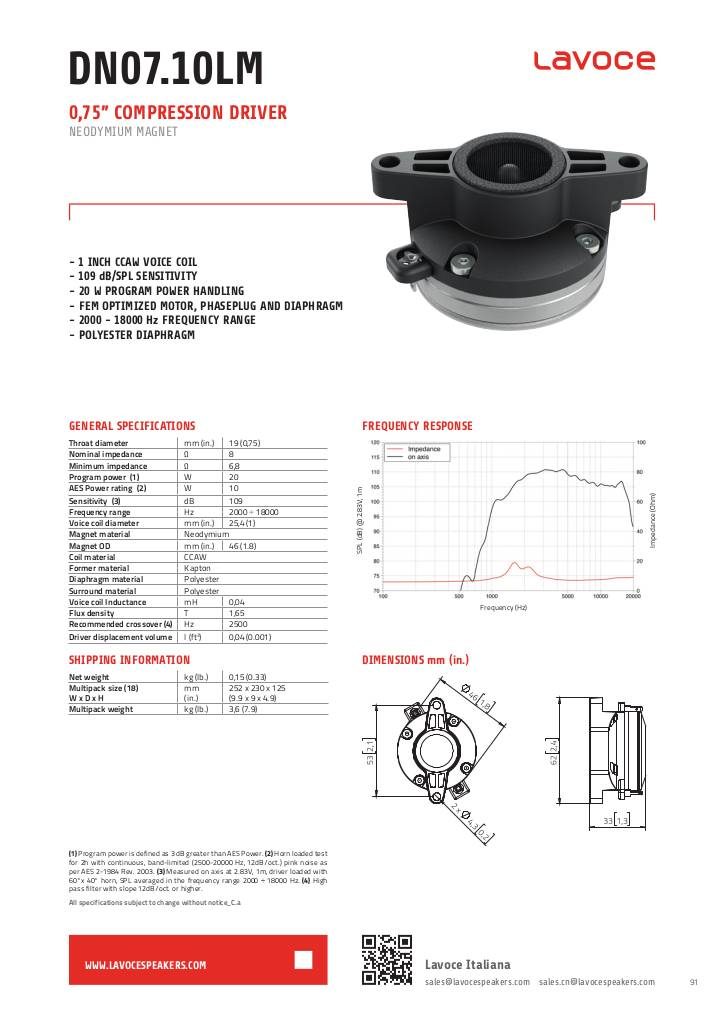

scheda tecnica

1549117256-dn0710lm-1.pdf

LaVoce DN07.10LM Technical Specifications

  • Throat diameter mm (in) 19 (0.75)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.8
  • Program power (1) W 20
  • AES power (2) W 10
  • Sensitivity (3) dB 109
  • Frequency range Hz 2000 ÷ 18000
  • Voice coil diameter mm (in) 25.4 (1)
  • Magnet material Neodymium
  • Coil material CCAW
  • Membrane material Kapton
  • Diaphragm material Polyester
  • Surround material Polyester
  • Magnet OD mm (in) 46 (1.8)
  • Voice coil inductance mH 0.04
  • Flux density T 1.65
  • Recommended crossover (4) Hz 2500
  • Driver displacement volume l (ft³) 0.04 (0.001)
  • Multipack weight kg (lb) 3.6 (7.9)
  • Multipack dimensions L x W x H 252 x 230 x 125 (9.9 x 9 x 4.9)
  • Net weight kg (lb) 0.15 (0.33)
