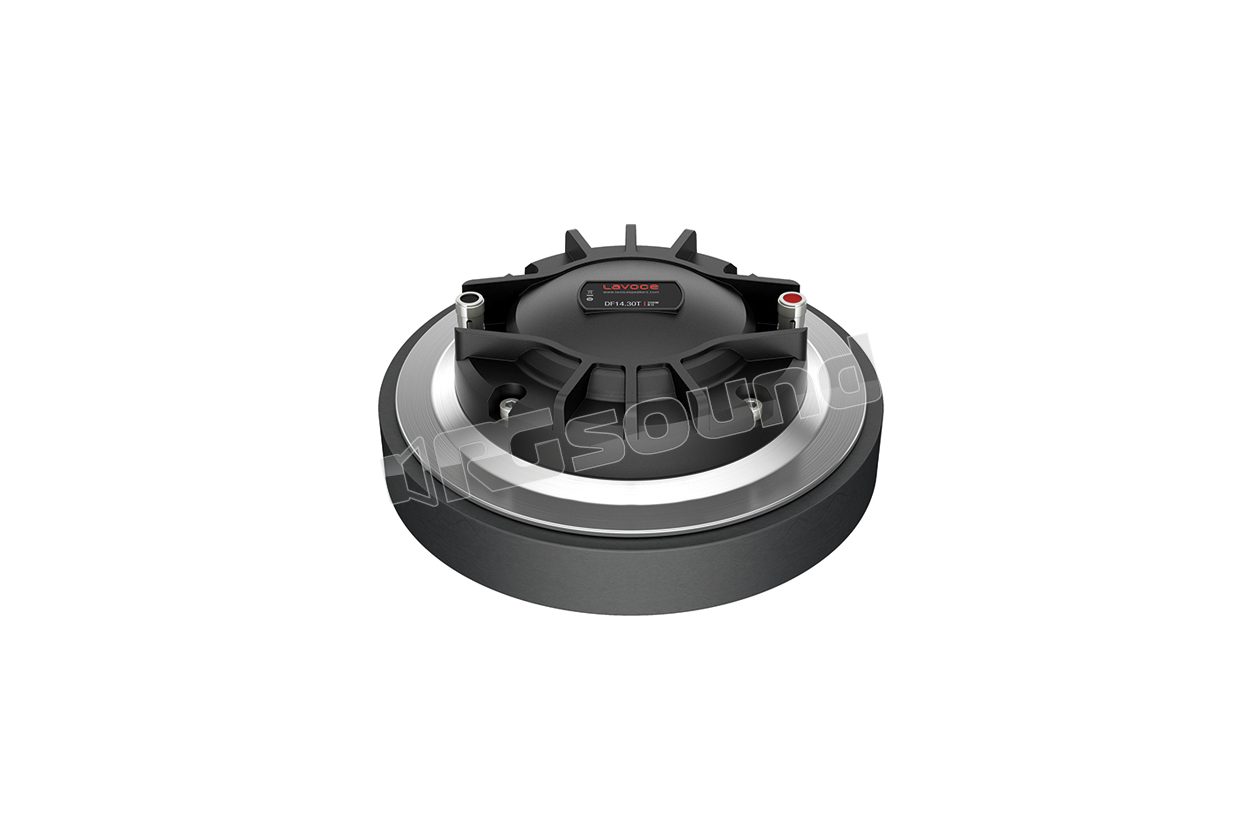

DF14.30T 1.4"/36mm High-Frequency Tweeter

LaVoce
Your price:
€ 170,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
500 - 18000 Hertz
Sensitivity
107,5 dB
Impedance
8 Ohm
Weight
4,2 Kg
Voice Coil Diameter
75 mm

LaVoce DF14.30T High Frequency Tweeter 1.4"/36mm


LaVoce code 70R93142

DF14.30T Features

  • 3 inch CCA edgewound voice coil
  • Sensitivity 107.5 db/spl
  • Program power handling 220 w
  • Motor, phaseplug and diaphragm optimized for FEM
  • Frequency range 500 - 18000 hz
  • Titanium diaphragm

Notes

  • Program power is defined as 3 dB above AES power.
  • Test with horn load for 2 hours with continuous pink noise and band limited (1000-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on-axis at 2.83 V, 1 m, speaker loaded with 80° x 60° horn, average SPL in the frequency range 500 ÷ 18000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

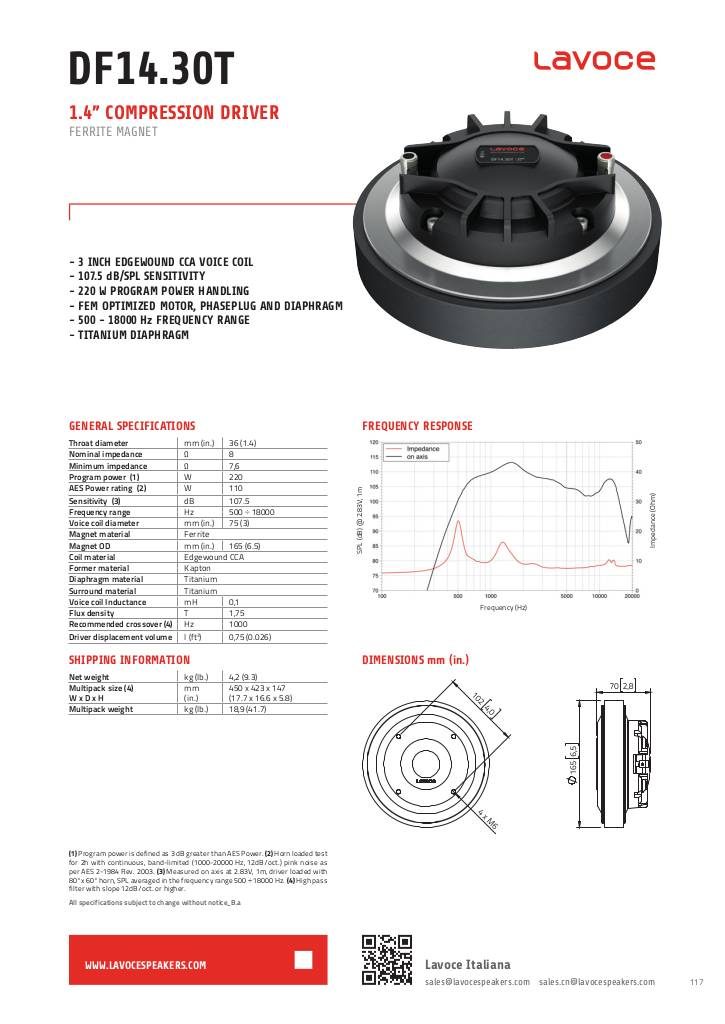

scheda tecnica

1549117178-df1430t-1.pdf

LaVoce DF14.30T Technical Specifications

  • Throat diameter mm (in) 36 (1.4)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.6
  • Program power (1) W 220
  • AES power (2) W 110
  • Sensitivity (3) dB 107.5
  • Frequency range Hz 500 ÷ 18000
  • Voice coil diameter mm (in) 75 (3)
  • Magnet material Ferrite
  • Coil material CCA edgewound
  • Membrane material Kapton
  • Diaphragm material Titanium
  • Surround material Titanium
  • Magnet OD mm (in) 165 (6.5)
  • Voice coil inductance mH 0.1
  • Flux density T 1.75
  • Recommended crossover (4) Hz 1000
  • Driver displacement volume l (ft³) 0.75 (0.026)
  • Multipack weight kg (lb) 18.9 (41.7)
  • Multipack dimensions L x W x H 450 x 423 x 147 (17.7 x 16.6 x 5.8)
  • Net weight kg (lb) 4.2 (9.3)
