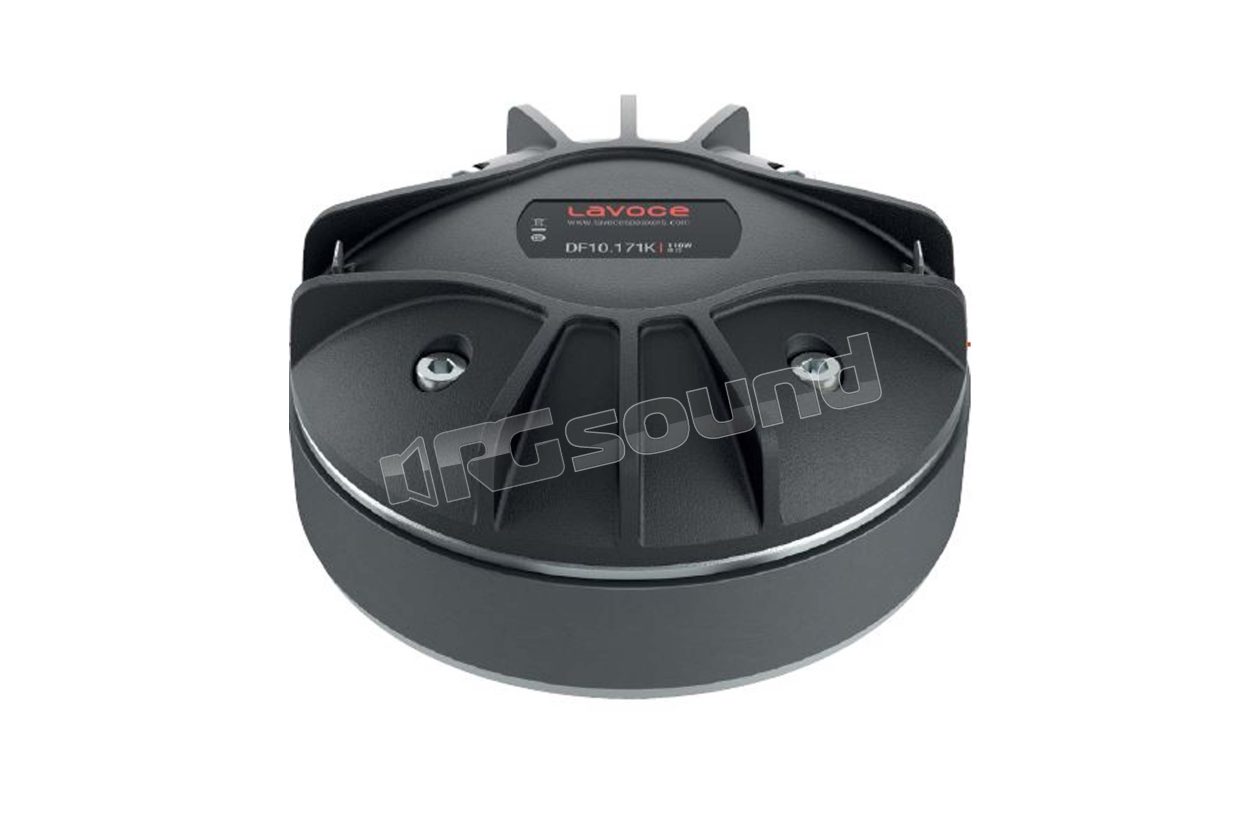

DF10.171K 1" compression tweeter with ferrite magnet

LaVoce
Your price:
€ 78,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
100 mm
MAX Power
110 Watt
RMS Power
55 Watt
Frequency Response
1.200 - 20.000 Hertz
Sensitivity
106,5 dB
Impedance
8 Ohm
Weight
1,6 Kg
Voice Coil Diameter
44 mm

LaVoce DF10.171K 1" compression tweeter with ferrite magnet

Main features of the DF10.171K speaker

  • 1.7" CCA voice coil
  • Sensitivity 106.5 dB SPL
  • Polyimide diaphragm

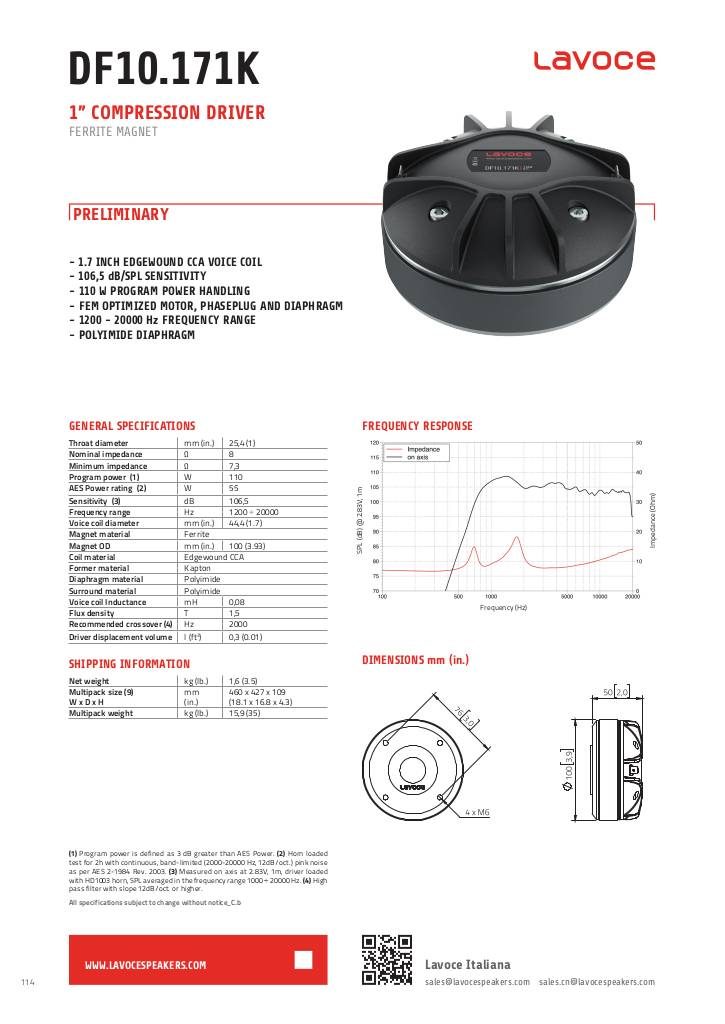

Scheda tecnica

n-20190716123749-1562332356-lavoce-df10-171k-1in-compression-driver.pdf

LaVoce DF10.171K Technical specifications

  • Nominal throat diameter 25.4 mm (1")
  • Nominal impedance 8 Ohm
  • Minimum impedance 7.3 Ohm
  • Maximum power W 110
  • Nominal power W 55
  • Sensitivity dB 106.5
  • Frequency range Hz 1,200 ÷ 20,000
  • Voice coil 44.4 mm (1.7")
  • Mounting hole diameter 100 mm
  • Depth 50 mm
  • Weight 1.6 Kg
€ 78,50 Price incl. VAT
