DF10.14 1"/25mm High Frequency Tweeter

LaVoce
Your price:
€ 53,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
1500 - 20000 Hertz
Sensitivity
106 dB
Impedance
8 Ohm
Weight
1 Kg
Voice Coil Diameter
36 mm

LaVoce DF10.14 High Frequency Tweeter 1"/25mm



LaVoce code 70R03102

DF10.14 Features

  • 1.4 inch CCA voice coil with sharp edge winding
  • Sensitivity 106 Db/Spl
  • Program power handling 60 W
  • Motor, phaseplug and diaphragm optimized FEM
  • Frequency range 1500 - 20000 Hz
  • High temperature polymeric diaphragm

Notes

  • Program power is defined as 3 dB higher than AES power.
  • Test with horn load for 2 hours with continuous pink noise and band limited (1700-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on-axis at 2.83 V, 1 m, speaker loaded with HD1003 horn, average SPL in the frequency range 1500 ÷ 20000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

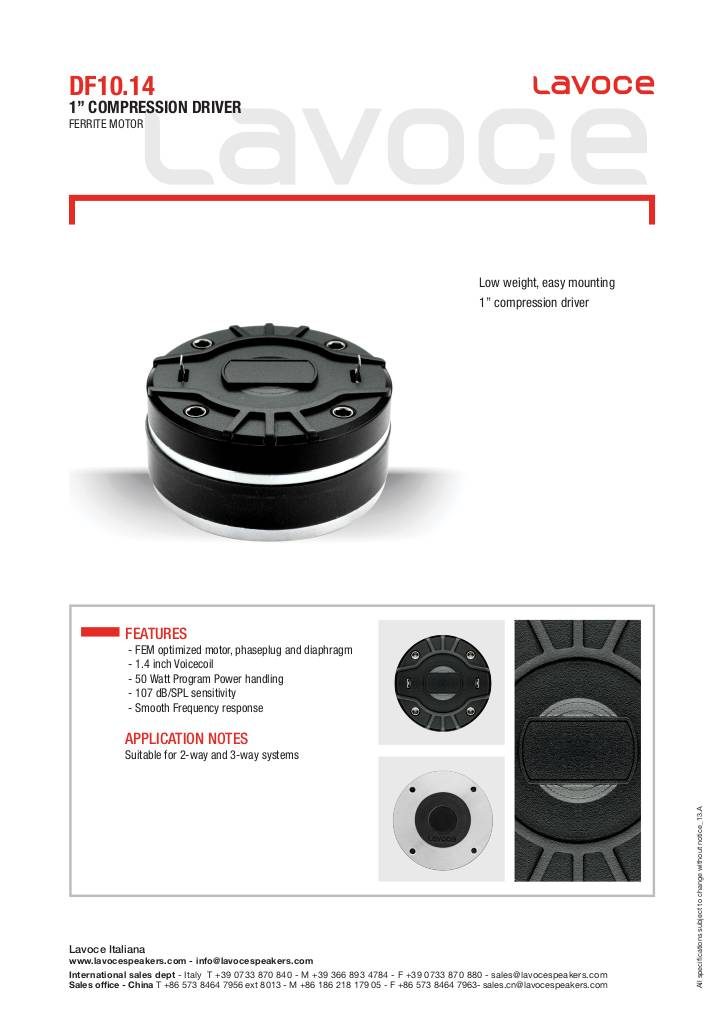

scheda tecnica

1549117436-df1014-1.pdf

LaVoce DF10.14 Technical Specifications

  • Throat diameter mm (in) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.4
  • Program power (1) W 60
  • AES power (2) W 30
  • Sensitivity (3) dB 106
  • Frequency range Hz 1500 ÷ 20000
  • Voice coil diameter mm (in) 36 (1.4)
  • Magnet material Ferrite
  • Coil material CCA wrapped on edge
  • Diaphragm material High temperature polymer
  • Diaphragm material High temperature polymer
  • Covering material High temperature polymer, vented
  • Magnet OD mm (in) 90 (3.5)
  • Voice coil inductance mH 0.09
  • Flux density T 1.5
  • Recommended crossover (4) Hz 1700
  • Driver displacement volume l (ft³) 0.3 (0.010)
  • Multipack weight kg (lb) 13.5 (29.7)
  • Multipack dimensions L x W x H 498 x 412 x 98 (19.6 x 16.2 x 3.9)
  • Net weight kg (lb) 1 (2.2)
