DF10.10L 1"/25mm High Frequency Tweeter

LaVoce
Your price:
€ 34,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
1500 - 18000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
0,8 Kg
Voice Coil Diameter
25,4 mm

LaVoce DF10.10L High Frequency Tweeter 1"/25mm


LaVoce code 70R03101

DF10.10L Features

  • 1 inch voice coil in CCAW
  • Sensitivity 107 db/spl
  • 40 w of program power handling
  • Motor, phaseplug and diaphragm optimized for FEM
  • Frequency range 1500 - 18000 hz
  • High temperature polymeric diaphragm

Notes

  • Program power is defined as 3 dB above AES power.
  • Tested for 2 hours using a continuous band-limited pink noise signal (2500-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on-axis at 2.83 V, 1 m, loudspeaker mounted on 80° x 80° horn, SPL averaged in the frequency range 2000 ÷ 18000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

scheda tecnica

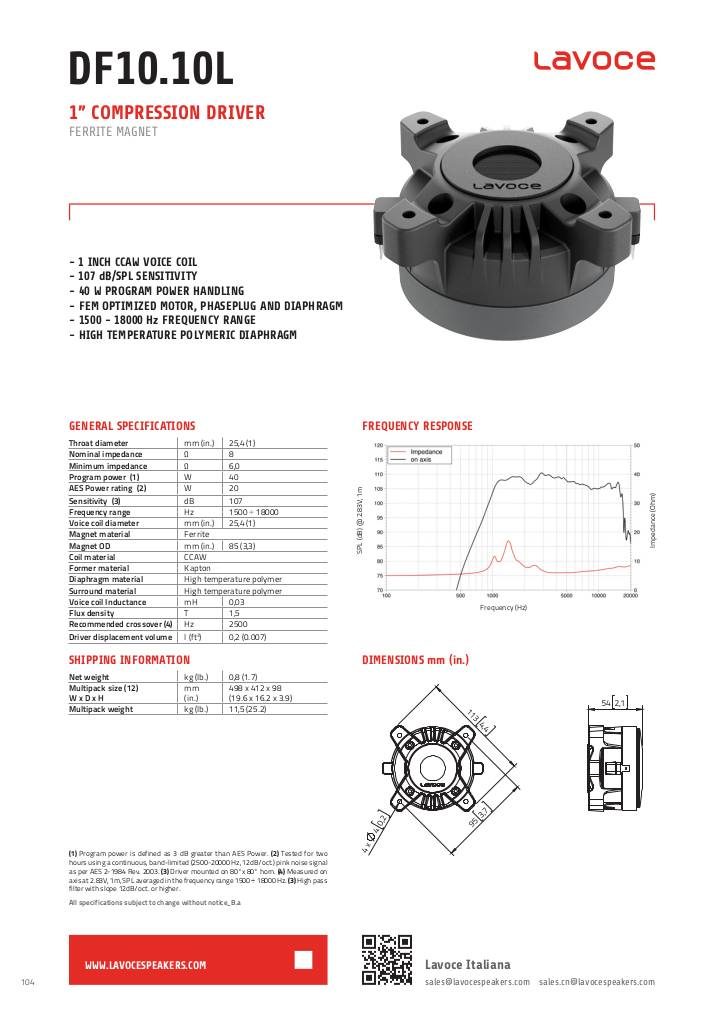

1549117446-df1010l-1.pdf

LaVoce DF10.10L Technical Specifications

  • Throat diameter mm (in) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power (1) W 40
  • AES power (2) W 20
  • Sensitivity (3) dB 107
  • Frequency range Hz 1500 ÷ 18000
  • Voice coil diameter mm (in) 25.4 (1)
  • Magnet material Ferrite
  • Coil material CCAW
  • Diaphragm material High temperature polymer
  • Diaphragm material High temperature polymer
  • Surround material High temperature polymer
  • Magnet OD mm (in) 85 (3.3)
  • Voice coil inductance mH 0.03
  • Flux density T 1.5
  • Recommended crossover (4) Hz 2500
  • Driver displacement volume l (ft³) 0.2 (0.007)
  • Multipack weight kg (lb) 11.5 (25.2)
  • Multipack dimensions L x W x H 498 x 412 x 98 (19.6 x 16.2 x 3.9)
  • Net weight kg (lb) 0.8 (1.7)
