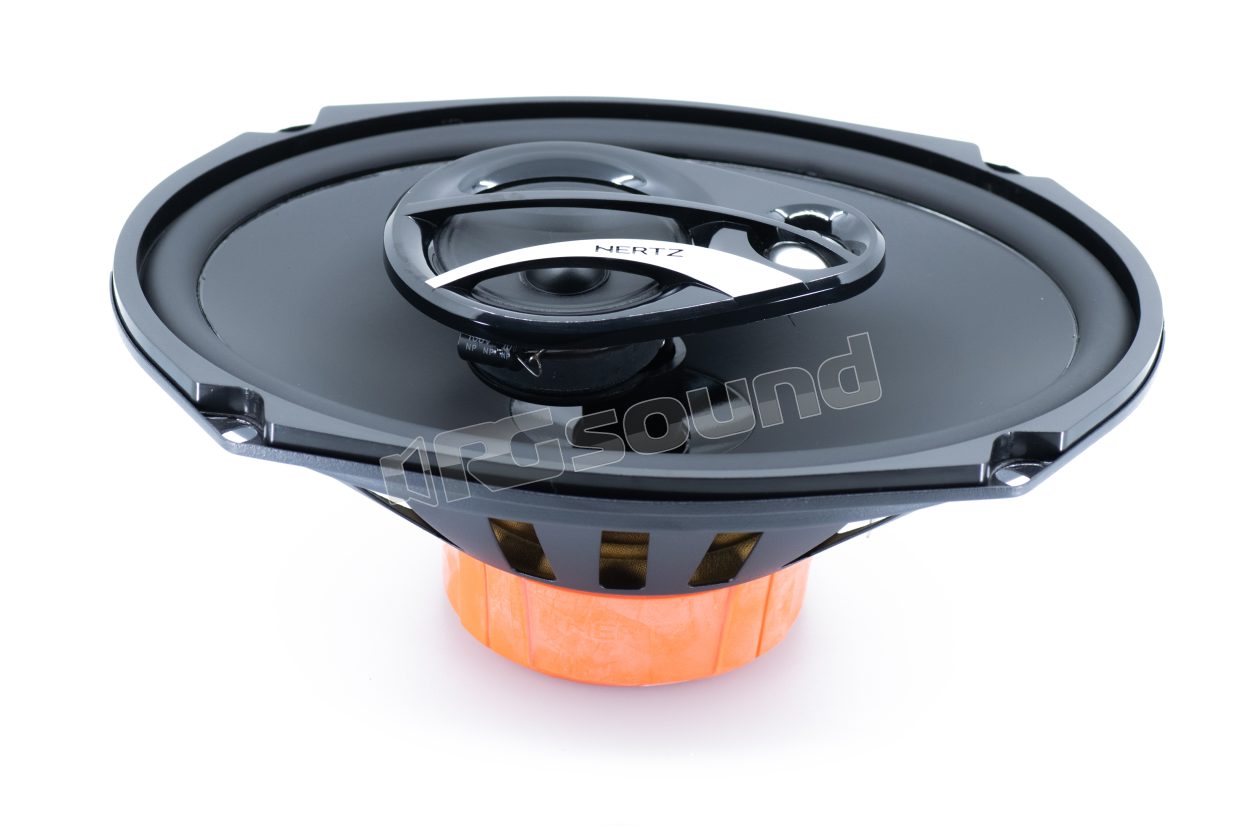

DCX 690.3 singolo altoparlante 6x9" coaxial

Hertz
Your price:
€ 45,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
2-way
Frequency Response
45 - 21000 Hertz
MAX Power
180 Watt
RMS Power
90 Watt
Sensitivity
98 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
PEI

Hertz DCX 690.3 elliptical coaxial speaker 6x9" three-way

The DCX 690.3 speakers use an oversized magnet assembly, a TPU (thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. Born from the union of a 6x9" woofer with 60mm midrange and 15mm dome tweeter. Excellent dynamics and audio quality even with simple pairing with the original amplifier of common car stereos.

DCX 690.3 Features

  • Oversized magnet assembly for energetic mobile equipment control.
  • Pure copper voice coil, wound on Conex support, for maximum lightness.
  • Cellulose fiber cone treated with water-repellent.
  • TPU suspension, for the benefit of wide excursions and damping of resonances.
  • 60 mm tweeter with paper cone and ferrite magnet.
  • Supertweeter with PEI dome, to have compactness and energy at high frequencies.
  • Basket to DIN standards, protected from abrasion and corrosion with powder coating.
  • High-current terminals, tin plated.
  • Silver braided strands with finest weave for maximum reliability and conductivity.
  • Protective covering in butyl rubber, anti-corrosion and anti-scratch.
  • Basket-motor assembly coupling in epoxy glue.
  • Pole plates with low carbon content for maximum magnetic permeability and high heat dissipation.

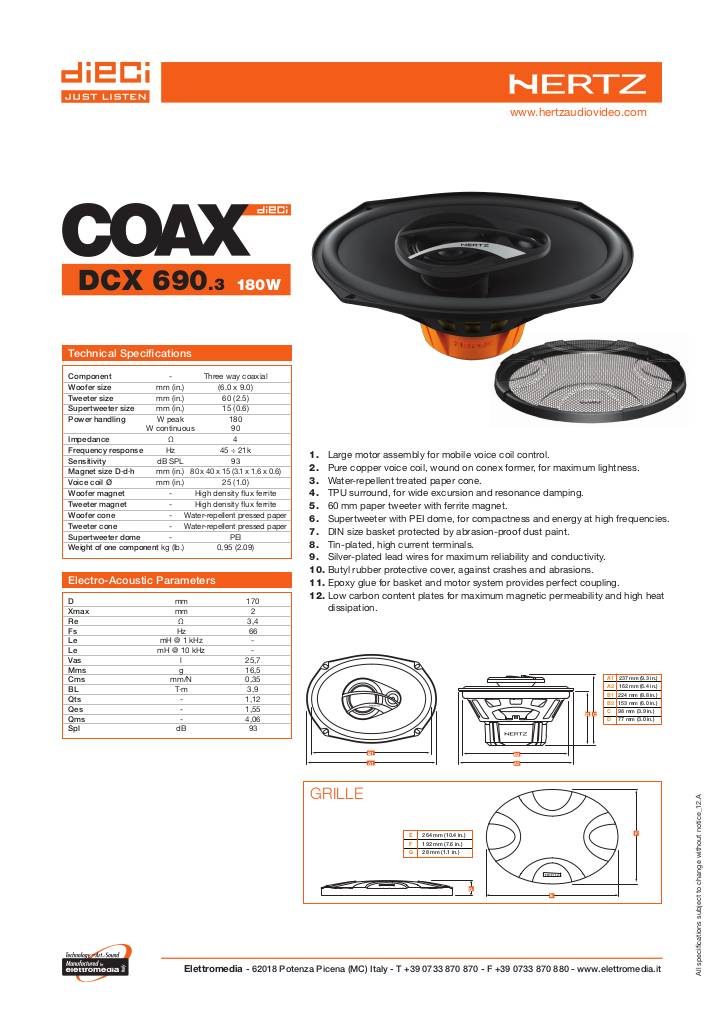

Scheda tecnica

20150422172200-hertz-dieci-dcx-690-tech.pdf

Hertz DCX 690.3 Technical Specifications

  • Three-way Coaxial Component
  • Size mm (in.) (6 x 9)
  • Power handling - continuous W 90
  • Power handling - Peak W 180
  • Impedance Ohm 4
  • Depth mm (in.) 98 (3.9)
  • Woofer voice coil Ø mm (in.) 25 (1.0)
  • Frequency response Hz 45 ÷ 21k
  • Woofer magnet size D x d x h mm (in.) 80 x 40 x 15 (3.1 x 1.6 x 0.6)
  • Weight per speaker kg (lb.) 0.95 (2.09)
  • Woofer magnet High flux density Ferrite
  • Tweeter magnet High flux density Ferrite
€ 45,90 Price incl. VAT
