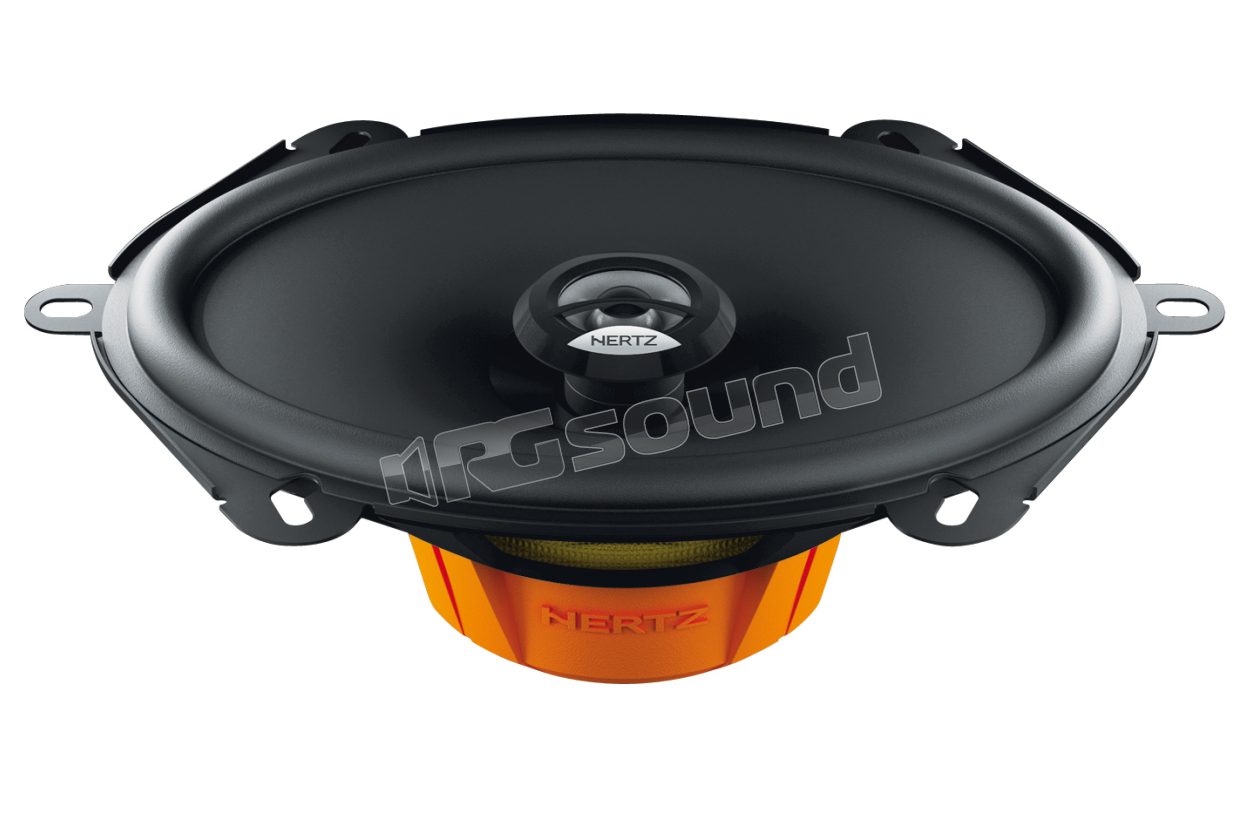

DCX 570.3 Pair of 5x7" two-way coaxial speakers

Hertz
Your price:
€ 72,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
5x7''
Coaxial Type
2-way
Frequency Response
60 - 21000 Hertz
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

Hertz DCX 570.3 Pair of two-way coaxial speakers 5x7"

Coaxial speakers Hertz DCX 570.3 equipped with neodymium magnet, PEI dome tweeter, built-in crossover, TPU (thermoplastic polyurethane) surround and voice coil in copper wound on a conex support. The extremely lightweight but rigid structure ensures linear frequency response and high sensitivity. These 2-way coaxial speakers are designed to meet specific installation and listening needs.

DCX 570.3 Features

  • Oversized magnetic group for energetic control of the mobile assembly.
  • Pure copper voice coil, wound on Conex support, for maximum lightness.
  • Cellulosa fiber cone treated with water-repellent.
  • TPU suspension, for the benefit of wide excursions and damping of resonances.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • Basket according to DIN standards, protected from abrasion and corrosion with powder coating.
  • High current terminals, tin plated.
  • Silver-plated braids in very fine weave for maximum reliability and conductivity.
  • Protective rubber covering in butyl, anti-corrosion and anti-scratch.
  • Basket-motor assembly coupling with epoxy glue.
  • Polar plates with low carbon content for maximum magnetic permeability and high heat dissipation.

Hertz DCX 570.3 Technical Specifications

  • Two-way coaxial component
  • Dimensions mm (in.) (5 x 7)
  • Continuous power handling W 60
  • Peak power handling W 120
  • Impedance Ohm 4
  • Depth mm (in.) 66 (2,6)
  • Woofer voice coil Ø mm (in.) 25 (1,0)
  • Frequency response Hz 60 ÷ 21k
  • Woofer magnet dimensions D x d x h mm (in.) 80 x 40 x 15 (3,1 x 1,6 x 0,6)
  • Weight of one speaker kg (lb.) 0,76 (1.67)
  • Woofer magnet High density flux ferrite
  • Tweeter magnet Neodymium
  • Cone Water-repellent pressed paper
  • Dome PEI
€ 72,90 Price incl. VAT
