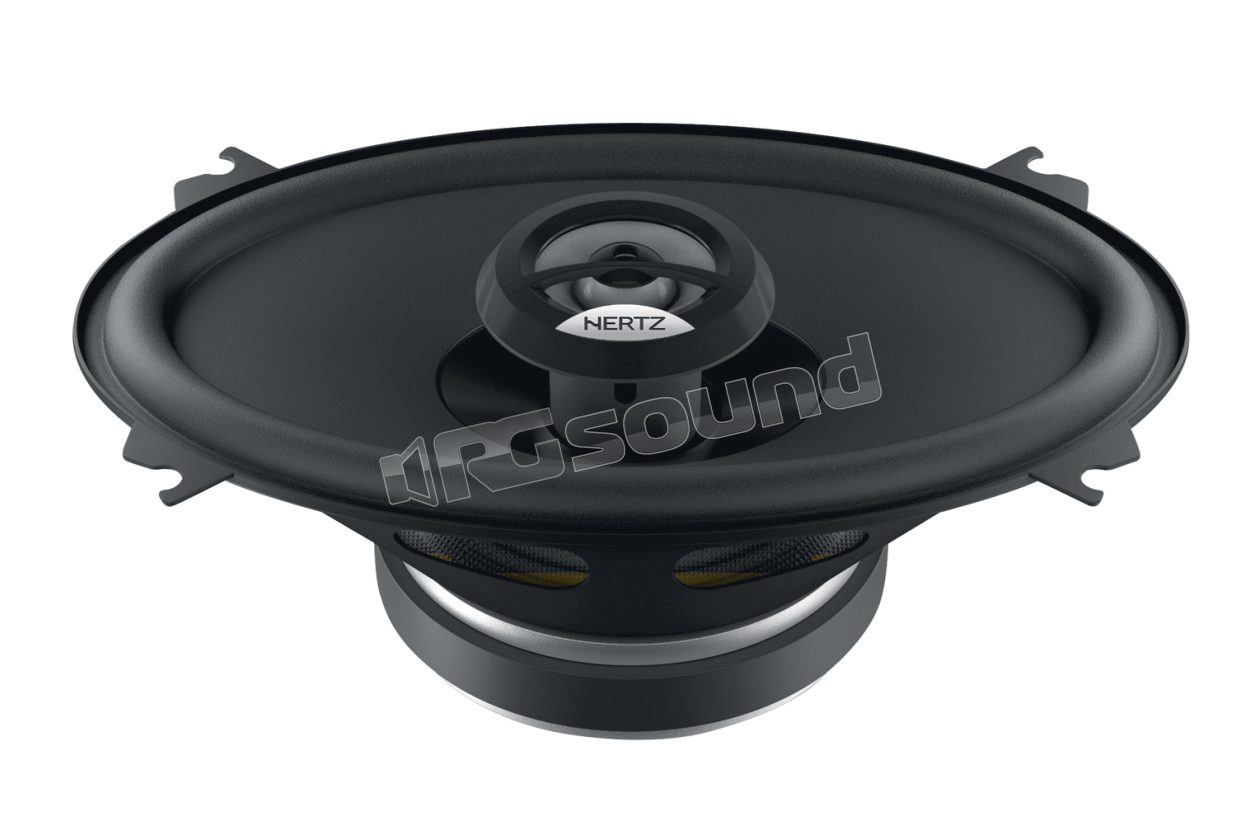

DCX 460.3 Pair of 4x6" two-way coaxial speakers

Hertz
Your price:
€ 62,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
4x6''
Coaxial Type
2-way
Frequency Response
65 - 21000 Hertz
MAX Power
80 Watt
RMS Power
40 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

Hertz DCX 460.3 Pair of two-way coaxial speakers 4x6"


Pair of 2-way coaxial speakers Hertz DCX 460.3 designed to meet specific installation and listening needs. Equipped with a neodymium magnet tweeter with PEI dome and integrated crossover, with a TPU (Thermoplastic polyurethane) surround and voice coil in copper wound on Conex support; an extremely lightweight yet rigid architecture that guarantees linear frequency response and high sensitivity level. RMS power 40W, maximum 80W.

DCX 460.3 Features

  • Oversized magnetic group for energetic control of the moving assembly.
  • Voice coil in pure copper, wound on Conex support, for maximum lightness.
  • Cone in water-repellent treated cellulose fiber.
  • TPU suspension, for the benefit of wide excursions and damping of resonances.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • Basket to DIN standards, protected from abrasion and corrosion with powder paint.
  • High current terminals, tin plated.
  • Silver braids in finest weave for maximum reliability and conductivity.
  • Basket-motor unit coupling in epoxy glue.
  • Polar plates with low carbon content for maximum magnetic permeability and high thermal dissipation.

Scheda tecnica

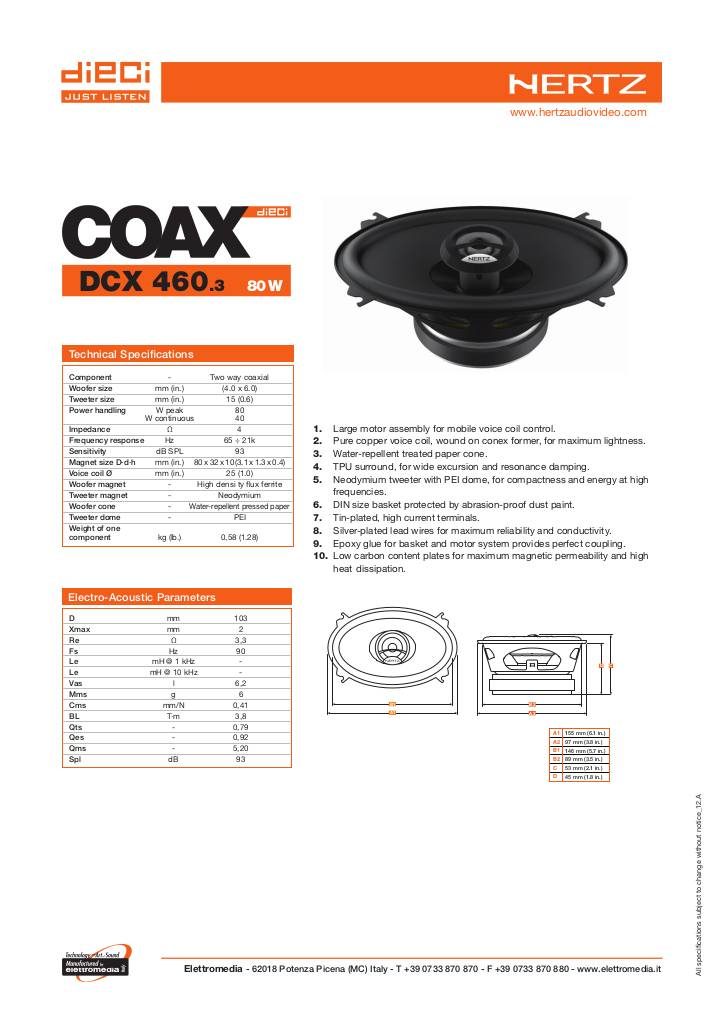

20120817105327-hertz-dieci-dcx-460-tech.pdf

Hertz DCX 460.3 Technical Specifications

  • Two-way coaxial component
  • Size mm (in.) (4 x 6)
  • Power handling - continuous W 40
  • Power handling - Peak W 80
  • Impedance Ohm 4
  • Depth mm (in.) 53 (2.1)
  • Woofer voice coil Ø mm (in.) 25 (1.0)
  • Frequency response Hz 65 ÷ 21k
  • Woofer magnet size D x d x h mm (in.) 80 x 32 x 10 (3.1 x 1.3 x 0.4)
  • Weight per speaker kg (lb.) 0.58 (1.28)
  • Woofer magnet High flux density Ferrite
  • Tweeter magnet Neodymium
  • Cone Water-repellent pressed paper
  • Dome PEI
€ 62,90 Price incl. VAT
