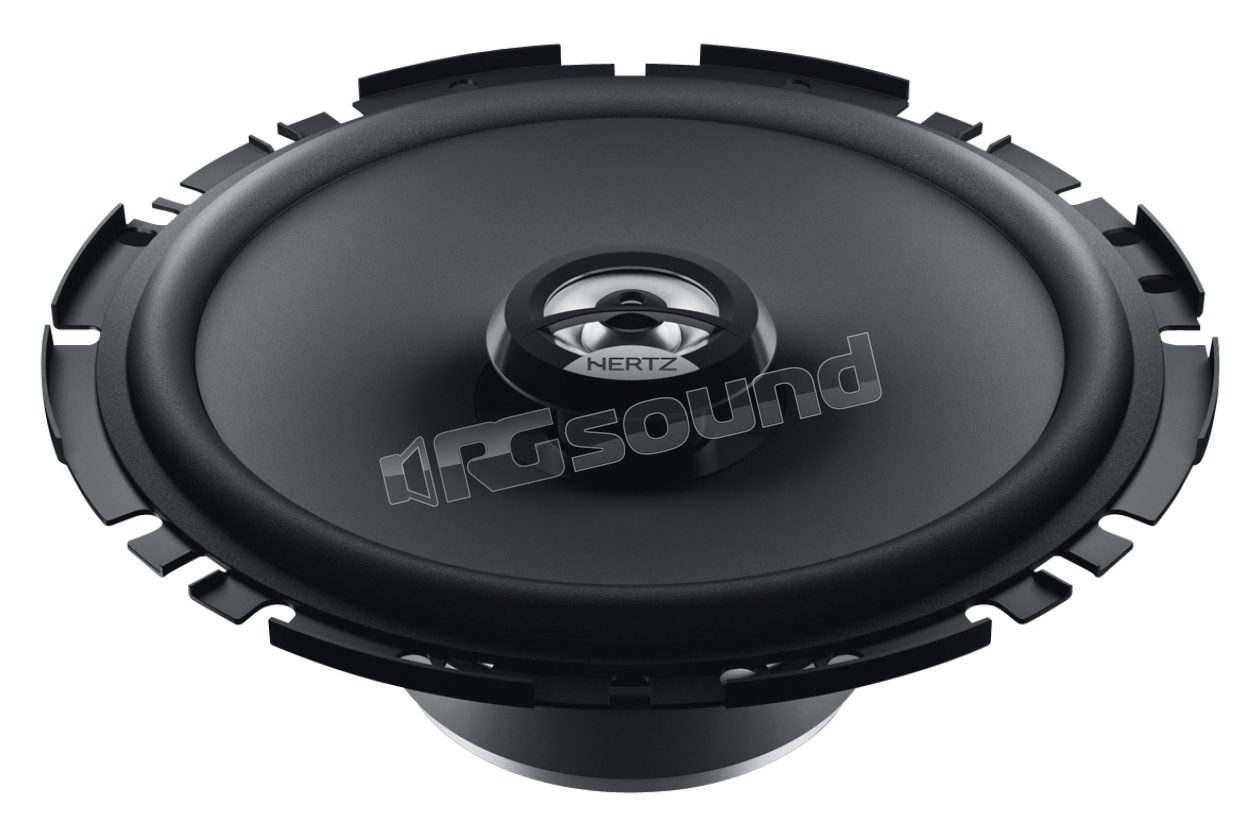

DCX 170.3 165mm ultra-slim two-way coaxial speakers

Hertz
Your price:
€ 62,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
60 - 21000 Hertz
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

Hertz DCX 170.3 Ultra-flat two-way coaxial 165mm

The ultra-flat coaxial DCX 170.3 (maximum depth of 51 mm) are optimized to be installed in the door or in other tight spaces, without compromising sound quality. Equipped with a tweeter with neodymium magnet, PEI dome and integrated crossover, TPU surround (Thermoplastic polyurethane) and a copper voice coil wound on conex support.

DCX 170.3 Features

  • Flat profile to facilitate replacement of factory speakers.
  • Pure copper voice coil, wound on Conex support, for maximum lightness.
  • Cone in water-repellent treated cellulose fiber.
  • TPU suspension, for the benefit of wide excursion and damping of resonances.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • Basket to DIN standards, protected from abrasion and corrosion with powder paint.
  • High current terminals, tin plated.
  • Silver-plated braids in very fine weave for maximum reliability and conductivity.
  • Basket-motor coupling in epoxy glue.
  • Low carbon polar plates for maximum magnetic permeability and high heat dissipation.

Hertz DCX 170.3 Technical Specifications

  • Two-way coaxial
  • Size mm (in.) 170 (6.7)
  • Power handling - continuous W 50
  • Power handling - Peak W 100
  • Impedance Ohm 4
  • Depth mm (in.) 51 (2.0)
  • Woofer voice coil Ø mm (in.) 25 (1.0)
  • Frequency response Hz 60 ÷ 21k
  • Woofer magnet size D x d x h mm (in.) 80 x 32 x 10 (3.1 x 1.3 x 0.4)
  • Weight of one speaker kg (lb.) 0.56 (1.23)
  • Woofer magnet High flux density Ferrite
  • Tweeter magnet Neodymium
  • Cone Water-repellent pressed paper
  • Dome PEI
€ 62,90 Price incl. VAT
