DCX 165.3 Pair of 165 mm two-way coaxial speakers

Hertz
Your price:
€ 62,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
60 - 21000 Hertz
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

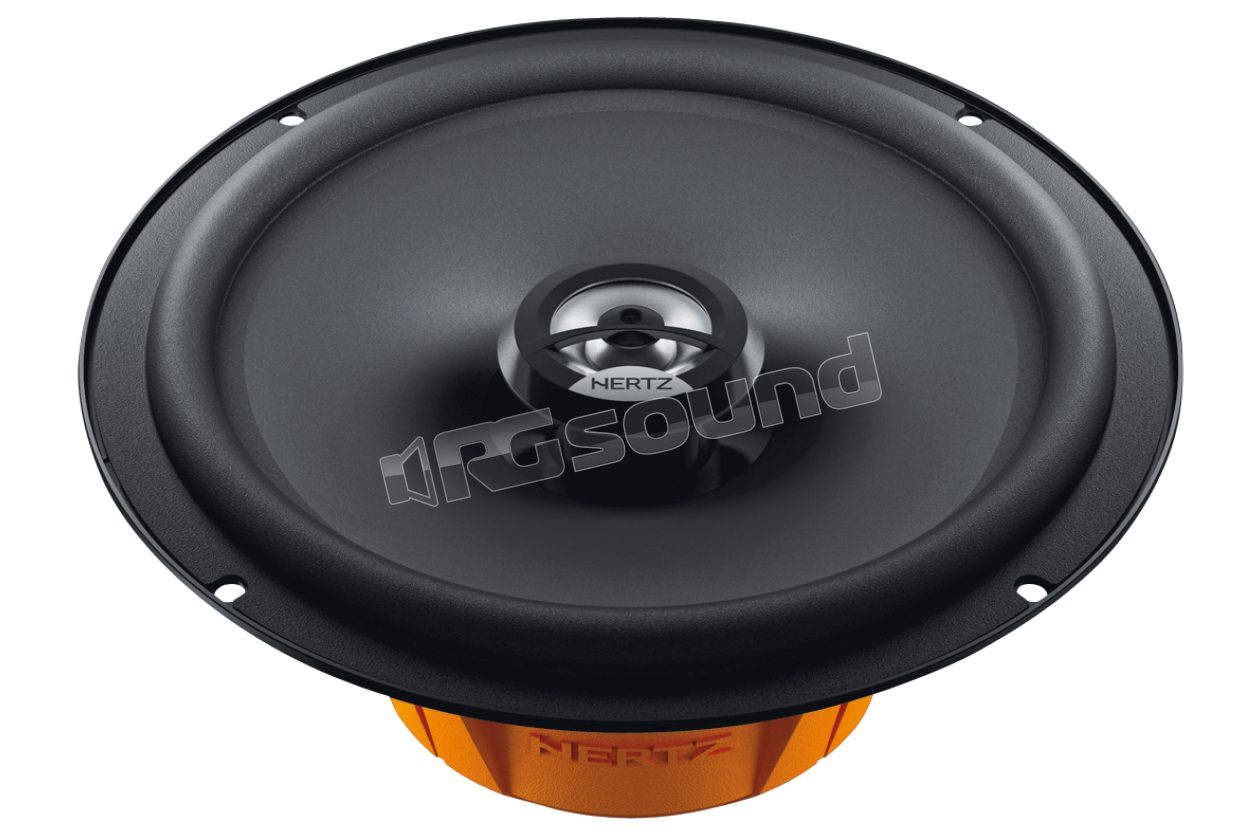

Hertz DCX 165.3 Pair of universal 165 mm two-way coaxial speakers

The coaxial speakers Hertz DCX 165.3 have been designed with care to offer linear response, high reliability and meet every installation requirement without compromising on quality. Tweeter with neodymium magnet, PEI dome and integrated crossover, surround in TPU (Thermoplastic polyurethane) and cone in pressed cellulose for a better solution for sound dynamics.

DCX 165.3 Features

  • Oversized magnetic group for energetic control of the moving assembly.
  • Mobile coil in pure copper, wound on Conex support, for maximum lightness.
  • Cone in cellulose fiber treated water-repellent.
  • TPU suspension, for the benefit of wide excursions and damping of resonances.
  • Tweeter in Neodymium with PEI dome, to have compactness and energy at high frequencies.
  • Basket to DIN standards, protected from abrasion and corrosion with powder paint.
  • High current terminals, tin plated.
  • Silver braids in finest weave for maximum reliability and conductivity.
  • Protective cover in butyl rubber, anti-corrosion and anti-scratch.
  • Basket-motor group coupling in epoxy glue.
  • Polar plates with low carbon content for maximum magnetic permeability and high thermal dissipation.

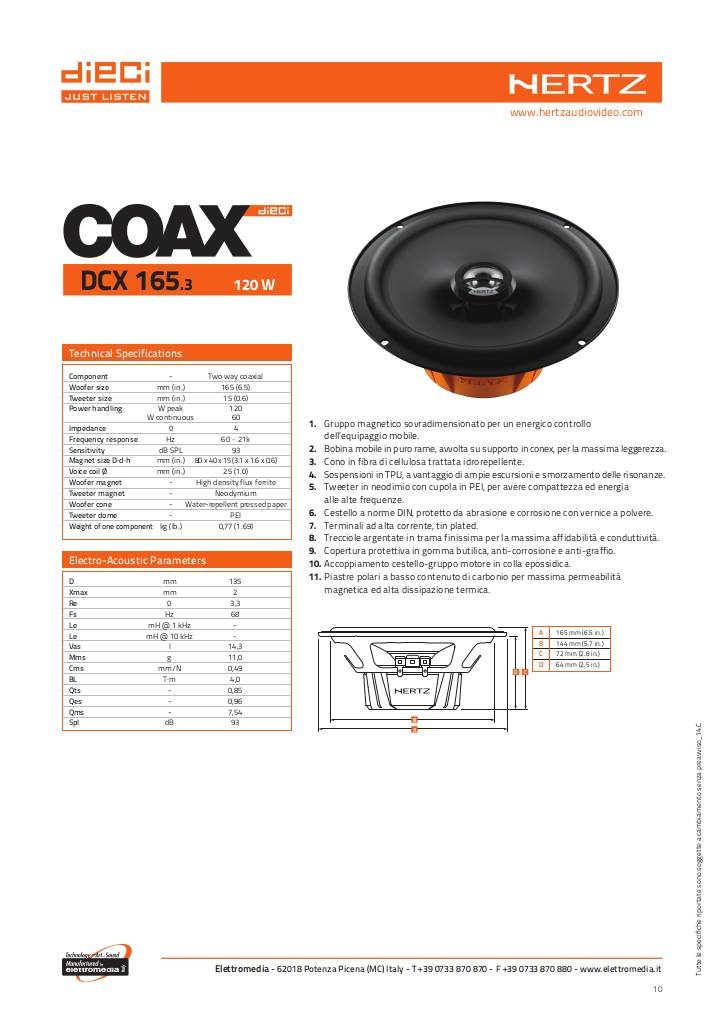

Scheda tecnica

20150423163705-dcx1653-scheda.pdf

Hertz DCX 165.3 Technical Specifications

  • Two-way Coaxial Component
  • Size mm (in.) 165 (6.5)
  • Continuous Power Handling W 60
  • Peak Power Handling W 120
  • Impedance Ohm 4
  • Depth mm (in.) 72 (2.8)
  • Woofer Voice Coil Ø mm (in.) 25 (1.0)
  • Frequency Response Hz 60 ÷ 21k
  • Woofer Magnet Size D x d x h mm (in.) 80 x 40 x 15 (3.1 x 1.6 x 0.6)
  • Weight of one speaker kg (lb.) 0.77 (1.69)
  • Woofer Magnet High density ferric flux
  • Tweeter Magnet Neodymium
  • Cone Water-repellent pressed paper
  • Dome PEI
€ 62,90 Price incl. VAT
