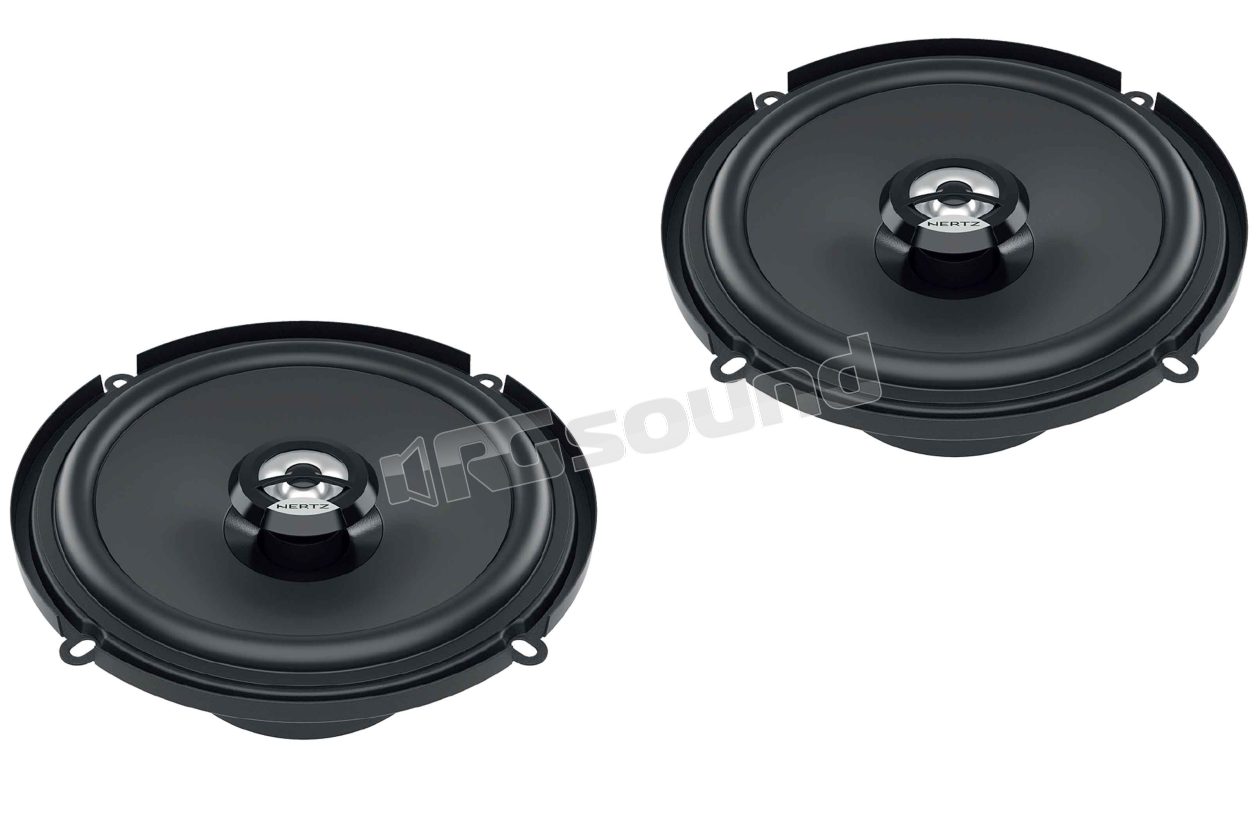

DCX 160.3 Pair of 160 mm coaxial speakers

Hertz
Your price:
€ 62,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
50 - 21.000 Hertz
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cono idrorepellente
Tweeter Material
Magnete al Neodimio

Hertz DCX 160.3 Pair of 160 mm coaxial speakers

To meet all installation needs without sacrificing quality and Hertz performance, the products in the Dieci series have been carefully designed to provide linear frequency response and guarantee high reliability. Tweeter with neodymium magnet PEI dome, built-in crossover, woofer made of TPU (thermoplastic polyurethane) and a pressed paper cone to offer the optimal balance between ease of installation and sound with dynamic and emotional impact. The new Hertz DCX 160.3 (6") coaxial speakers include an adapter ring designed for installation in GM and Honda models with OEM 6" speakers.

DCX 160.3 Features

  • Large motor assembly for mobile voice coil control.
  • Pure copper voice coil, wound on conex ex, for maximum lightness.
  • Water-repellent treated paper cone.
  • TPU surround, for damping of large excursions and resonance.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • DIN-sized basket protected by abrasion-resistant anti-dust paint.
  • High-current tin-plated terminals.
  • Silver-plated cables for maximum reliability and conductivity.
  • Protective butyl rubber cover, against impacts and abrasions.
  • Epoxy glue for basket and motor system provides perfect coupling.
  • Low-carbon plates for maximum magnetic permeability and high heat dissipation.
  • Adapter ring supplied designed for installation in GM and Honda models with 6".

Scheda tecnica

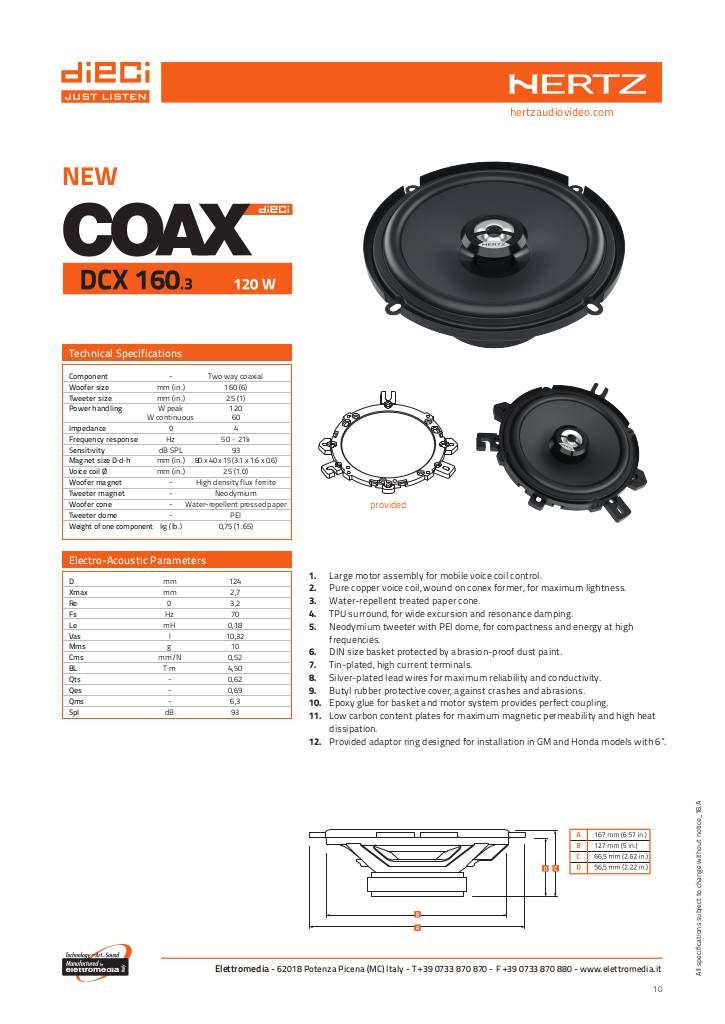

n-20190315114728-hertz-dcx160-3-tech-sheet.pdf

Hertz DCX 160.3 Technical specifications

  • Maximum power handling 120 W
  • Nominal power handling 60 W
  • Impedance 4 Ohm
  • Frequency response Hz 50 ÷ 21k
  • Sensitivity dB SPL 93
  • Woofer size mm 160 (6")
  • Tweeter size mm 15 (0.6")
  • Woofer Voice coil Ø mm 25 (1")
  • Woofer magnet: high-density ferrite flux
  • Tweeter neodymium magnet
  • Woofer cone water-repellent pressed paper
€ 62,90 Price incl. VAT
