DCX 130.3 Pair of 130mm two-way coaxial speakers

Hertz
Your price:
€ 62,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
Frequency Response
65 - 21000 Hertz
MAX Power
80 Watt
RMS Power
40 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

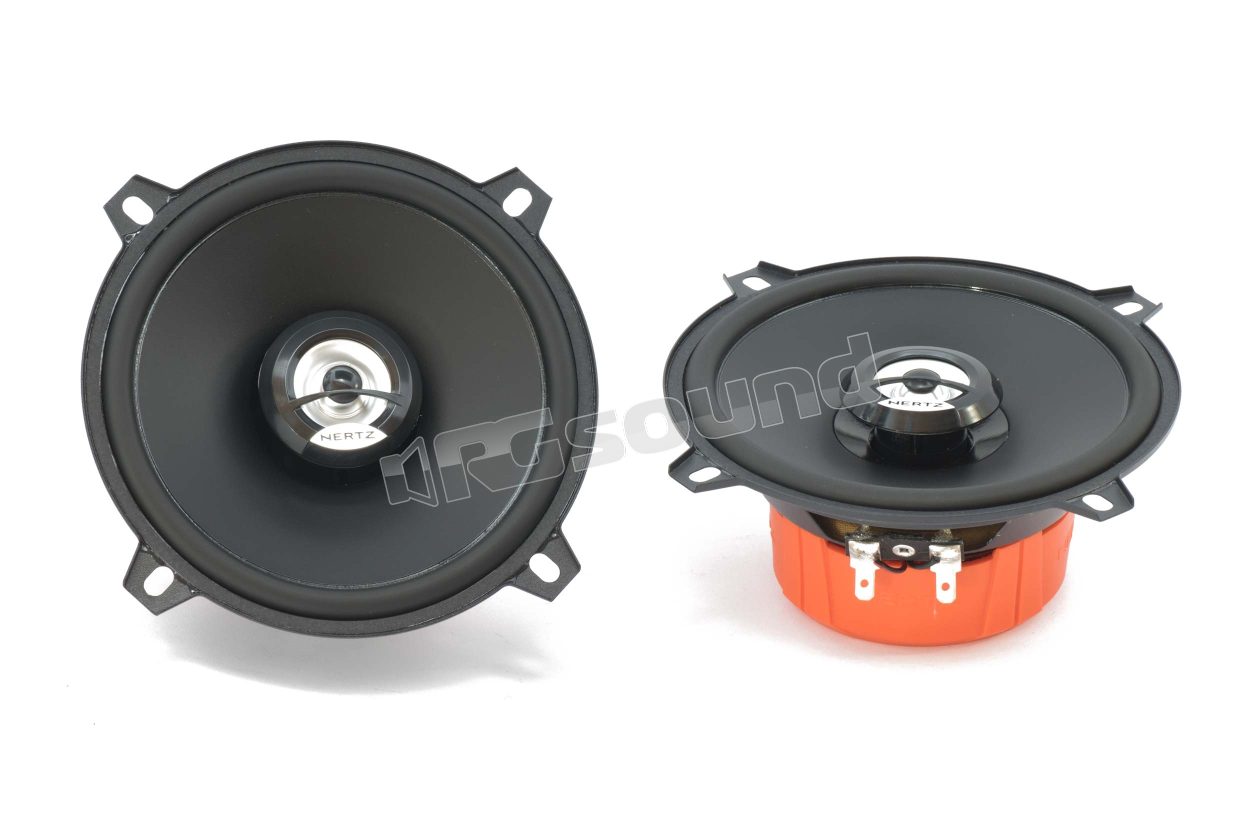

Hertz DCX 130.3 Pair of two-way 130mm coaxial speakers

The Hertz DCX 13.3 coaxials have been designed with care to offer linear response, high reliability and meet every installation need without sacrificing quality. Tweeter with neodymium magnet, PEI dome and integrated crossover, TPU (Thermoplastic polyurethane) surround and pressed cellulose cone for a better solution for sound dynamics.

DCX 130.3 Features

  • Oversized magnetic group for energetic control of the moving assembly.
  • Pure copper voice coil, wound on Conex support, for maximum lightness.
  • Cellulose fiber cone treated with water-repellent.
  • TPU suspension, for the benefit of wide excursions and resonance damping.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • DIN-standard basket, protected from abrasion and corrosion with powder coating.
  • High current terminals, tin plated.
  • Silver-plated braids in finest weave for maximum reliability and conductivity.
  • Protective rubber cover in butyl rubber, anti-corrosion and anti-scratch.
  • Basket-motor assembly coupling in epoxy glue.
  • Low carbon pole plates for maximum magnetic permeability and high heat dissipation.

ATTENTION: Grilles not included.

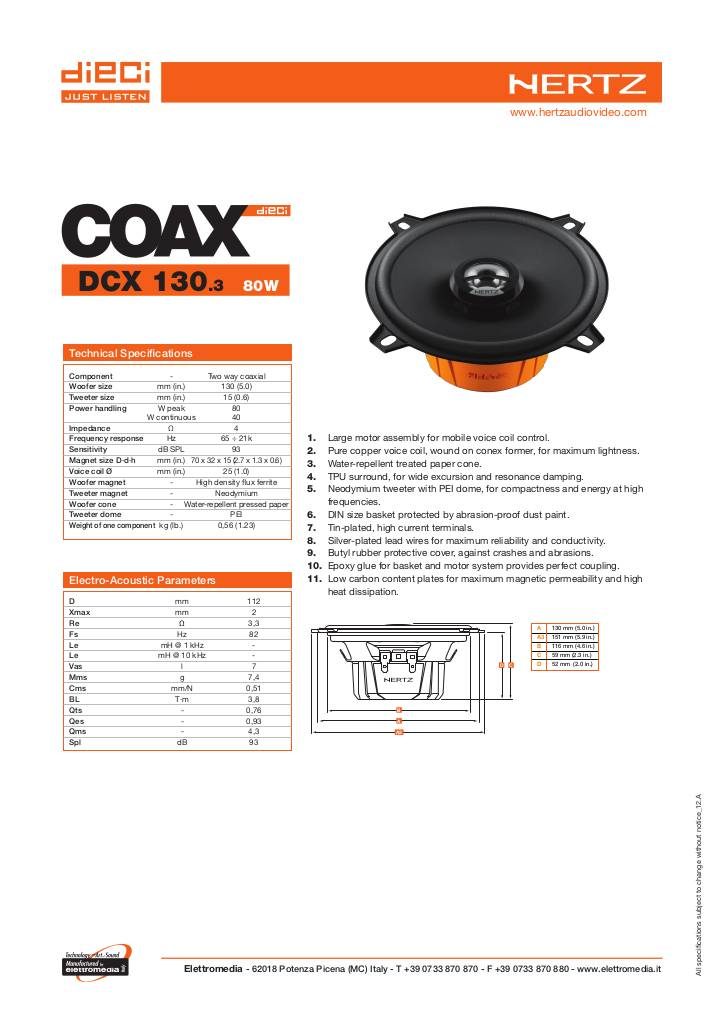

Scheda tecnica

20150422173408-hertz-dieci-dcx-130-tech.pdf

Hertz DCX 130.3 Technical Specifications

  • Two-way Coaxial Component
  • Size mm (in.) 130 (5)
  • Power handling - continuous W 40
  • Power handling - Peak W 80
  • Impedance Ohm 4
  • Depth mm (in.) 59 (2.3)
  • Frequency response Hz 65 ÷ 21k
  • Woofer magnet size D x d x h mm (in.) 70 x 32 x 15 (2.7 x 1.3 x 0.6)
  • Weight per speaker kg (lb.) 0.56 (1.23)
  • Woofer magnet High flux density Ferrite
  • Tweeter magnet Neodymium
  • Cone Water-repellent pressed paper
  • Dome PEI
€ 62,90 Price incl. VAT
