DCX 100.3 Pair of universal coaxial speakers

Hertz
Your price:
€ 52,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
70 - 21000 Hertz
MAX Power
60 Watt
RMS Power
30 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

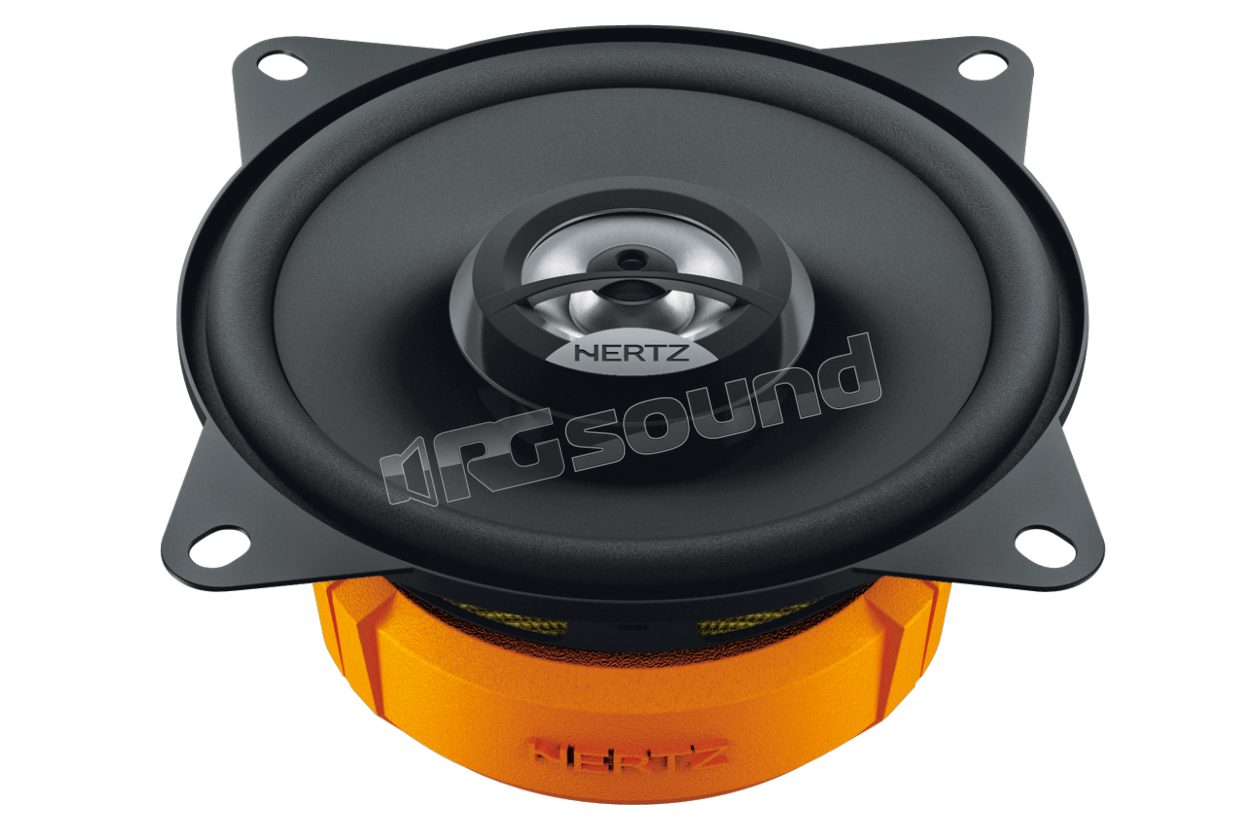

Hertz DCX 100.3 Pair of universal 100 mm coaxial speakers

The Hertz DCX 100.3 speakers have been designed with care to offer linear response, high reliability and meet every installation need without compromising on quality. Tweeter with neodymium magnet, PEI dome and integrated crossover, surround in TPU (Thermoplastic polyurethane) and pressed cellulose cone for a better solution for sound dynamics.

DCX 100.3 Features

  • Oversized magnetic assembly for energetic control of the moving assembly.
  • Pure copper voice coil, wound on Conex support, for maximum lightness.
  • Cone in hydro-repellent treated cellulose fiber.
  • TPU suspension, for the benefit of wide excursions and damping of resonances.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • Basket to DIN standards, protected from abrasion and corrosion with powder coating.
  • High current terminals, tin plated.
  • Silver braids in finest weave for maximum reliability and conductivity.
  • Protective covering in butyl rubber, anti-corrosion and anti-scratch.
  • Basket-motor assembly coupling in epoxy glue.
  • Low carbon pole plates for maximum magnetic permeability and high heat dissipation.

ATTENTION: Grilles not included

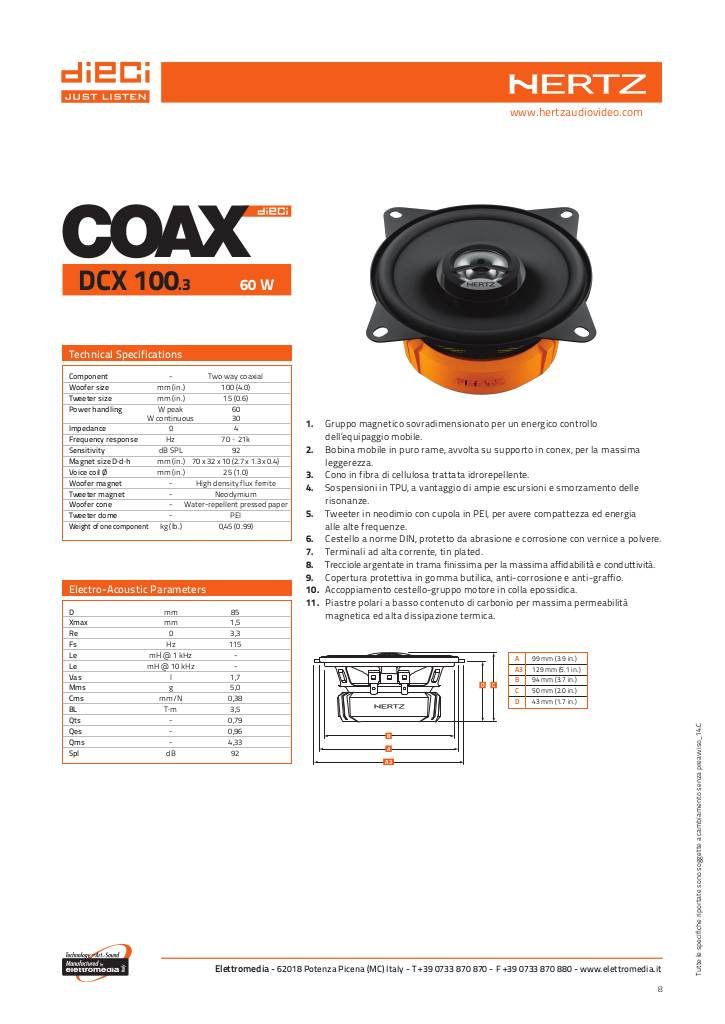

Scheda tecnica

20150423123459-sheda-dcx-100-3.pdf

Hertz DCX 100.3 Technical specifications

  • Dimensions mm (in.) 100 (4)
  • Power handling - continuous W 30
  • Power handling - Peak W 60
  • Impedance Ohm 4
  • Depth mm (in.) 50 (2.0)
  • Frequency response Hz 70 ÷ 21k
  • Woofer magnet dimensions D x d x h mm (in.) 70 x 32 x 10 (2.7 x 1.3 x 0.4)
  • Weight of one speaker kg (lb.) 0.45 (0.99)
  • Woofer magnet High flux density Ferrite
  • Tweeter magnet Neodymium
  • Cone Hydro-repellent pressed paper
  • Dome PEI
€ 52,90 Price incl. VAT
