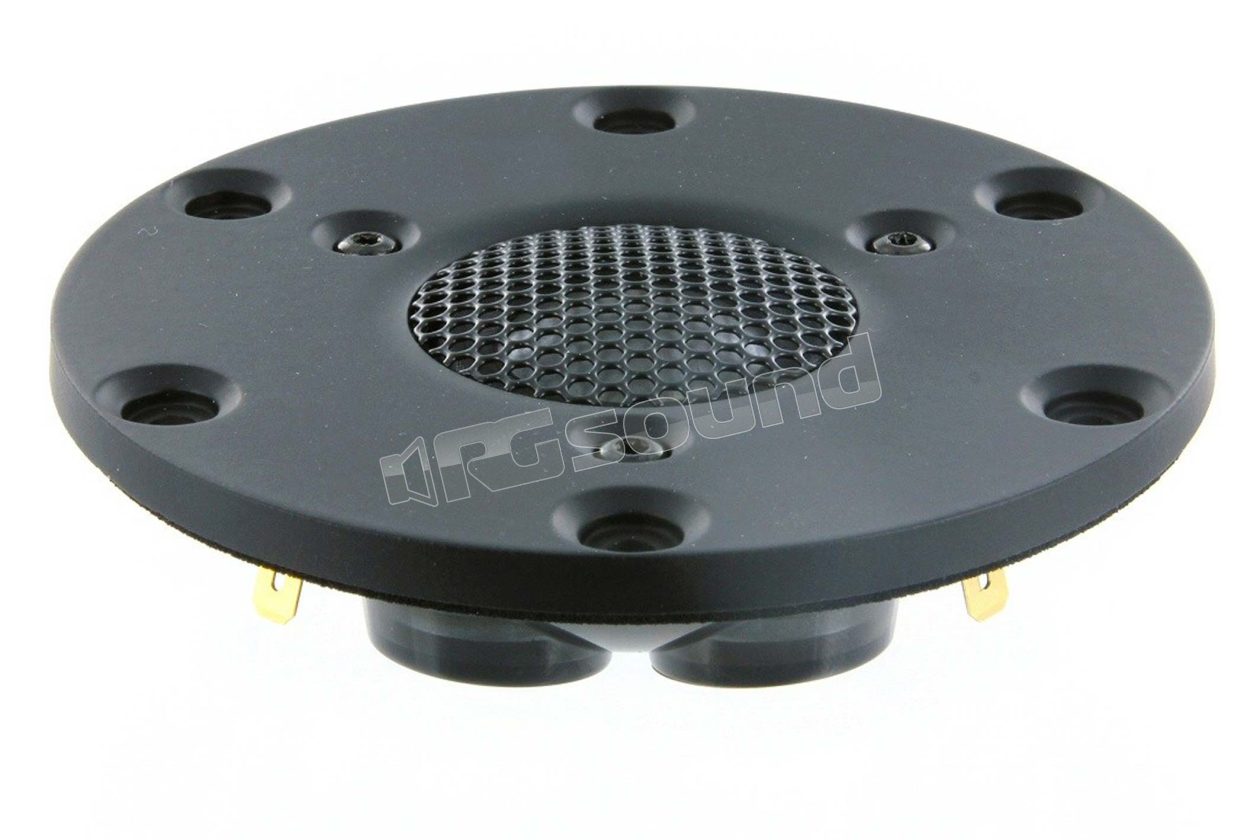

D3004/664000 pair of AirCirc Beryllium 1'' tweeters

Scan Speak
Your price:
€ 899,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
25 mm
MAX Power
150 Watt
RMS Power
90 Watt
Sensitivity
91.5 dB
Impedance
4 Ohm
Outer Diameter
104 mm
Installation Depth
28 mm
Tweeter Material
Berillio

Scan Speak D3004/664000 pair 1" Dome Tweeter - AirCirc Beryllium 4 ohm

Excellent off-axis reproduction, low distortion, dynamic and precise sounds.

This tweeter has excellent high reproduction, featuring absolute level characteristics including: the Beryllium diaphragm and the AirCirc system that provides excellent sound reproduction free from instability and with a flat frequency response of over 40 kHz.

Scan Speak D3004/664000 Technical Features

- 26 mm Beryllium Dome Tweeter
- 4 ohm, Neo, AirCirc, Grill
- Beryllium Diaphragm (99% Pure Be)
- Patented Symmetrical Drive (SD-2) motor
- Black Rubber Painted Die Cast Faceplate
- AirCirc Motor Design w. 6 Neo magnets
- Large Roll Surround f. Wide Dispersion
- Non-Magnetic Protective Grill
- Size (inches) 1
- Fs (Hz) 500
- Re (ohms) 3
- Sensitivity (dB) 91.5
- Qt 0.54
- VAS (ltr) 0.02
- Xmax ± (mm) 0.2

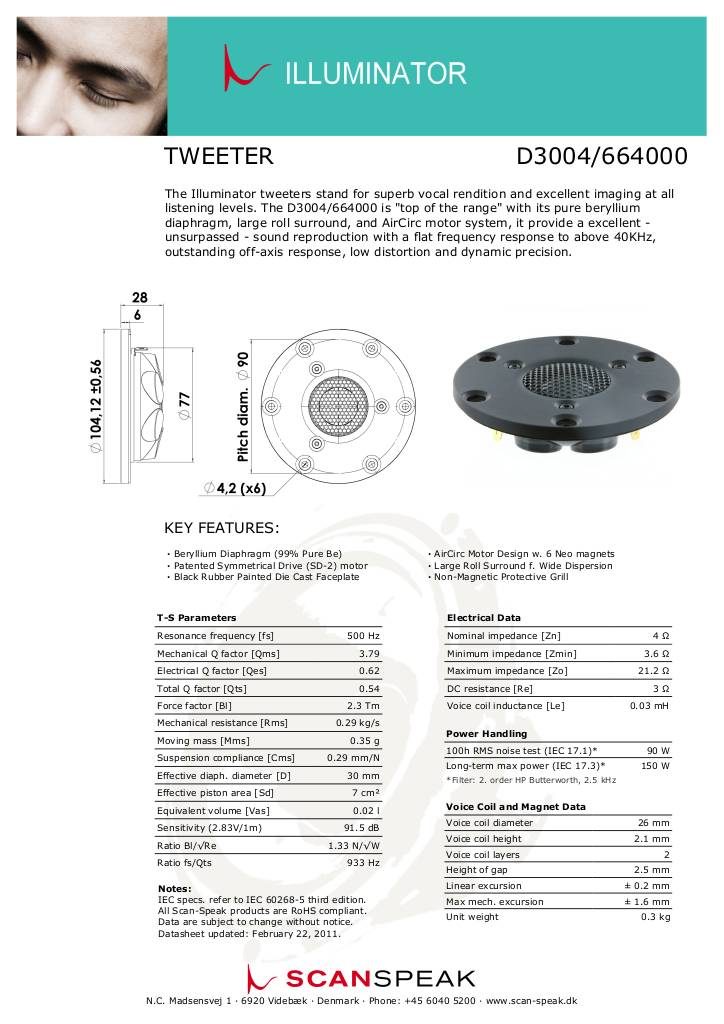

Scheda tecnica

n-20170717122456-d3004-664000.pdf
€ 899,00 Price incl. VAT
