D3004/604010 pair of Beryllium tweeters

Scan Speak

Discontinued

Your price:
€ 674,00
Price per pair (VAT included)
Type
Tweeter
Dome Size
25 mm
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
90.5 dB
Impedance
4 Ohm
Outer Diameter
62 mm
Installation Depth
55 mm
Tweeter Material
Berillio

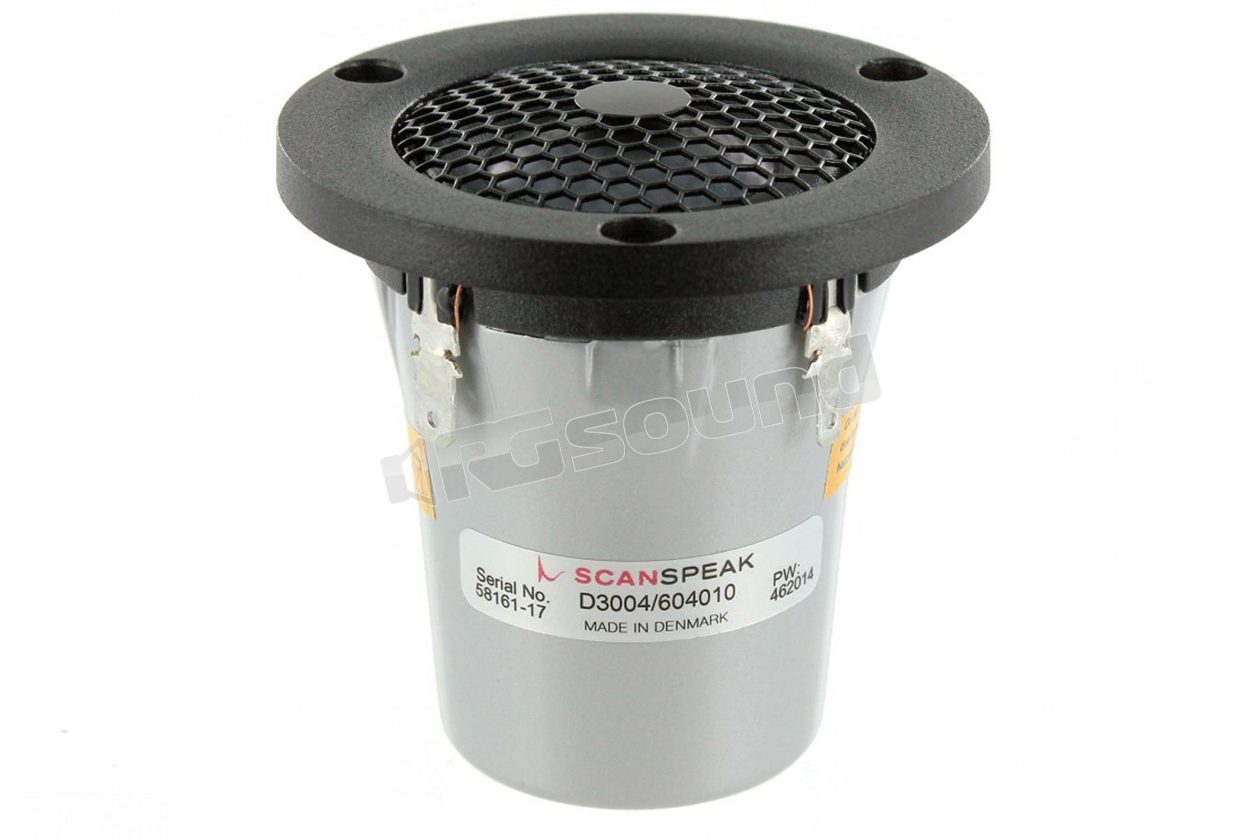

Scan Speak D3004/604010 pair of tweeters in Beryllium, impedance 4 Ohm, rated power 50 W RMS

This compact 1" Beryllium tweeter is an example of how great sound can be enclosed in a small body. Because beryllium is a material characterized by great rigidity, lightness and high damping, the tweeter diaphragm, specially made of beryllium, offers all the properties necessary to reproduce excellent sound. And indeed the D3004/604010 tweeter has very low distortion and treble clarity perfect for all types of music.

Scan Speak D3004/604010 Technical Features

- 1" Beryllium diaphragm (99% pure BE)
- Large non resonant aluminium enclosure
- Sound transparant protective grill
- Patented symetrical drive (SD-2) motor
- Large roll surround f. wide dispersion
- Applicable for HiFi and automotive
- Size 1"
- Fs (Hz) 450
- Re (ohms) 3
- Sensitivity (dB) 90.5
- Qt 0.7
- VAS (ltr) 0.03
- Xmax ± (mm) 0.2

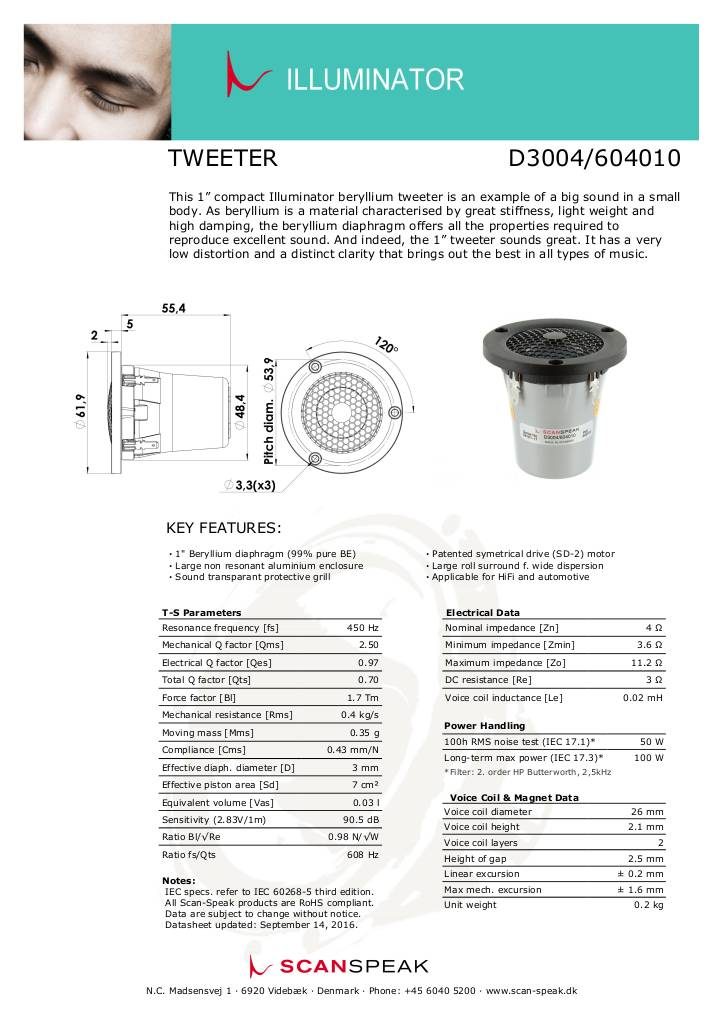

Scheda tecnica

n-20170717110744-d3004-604010.pdf
Discontinued
