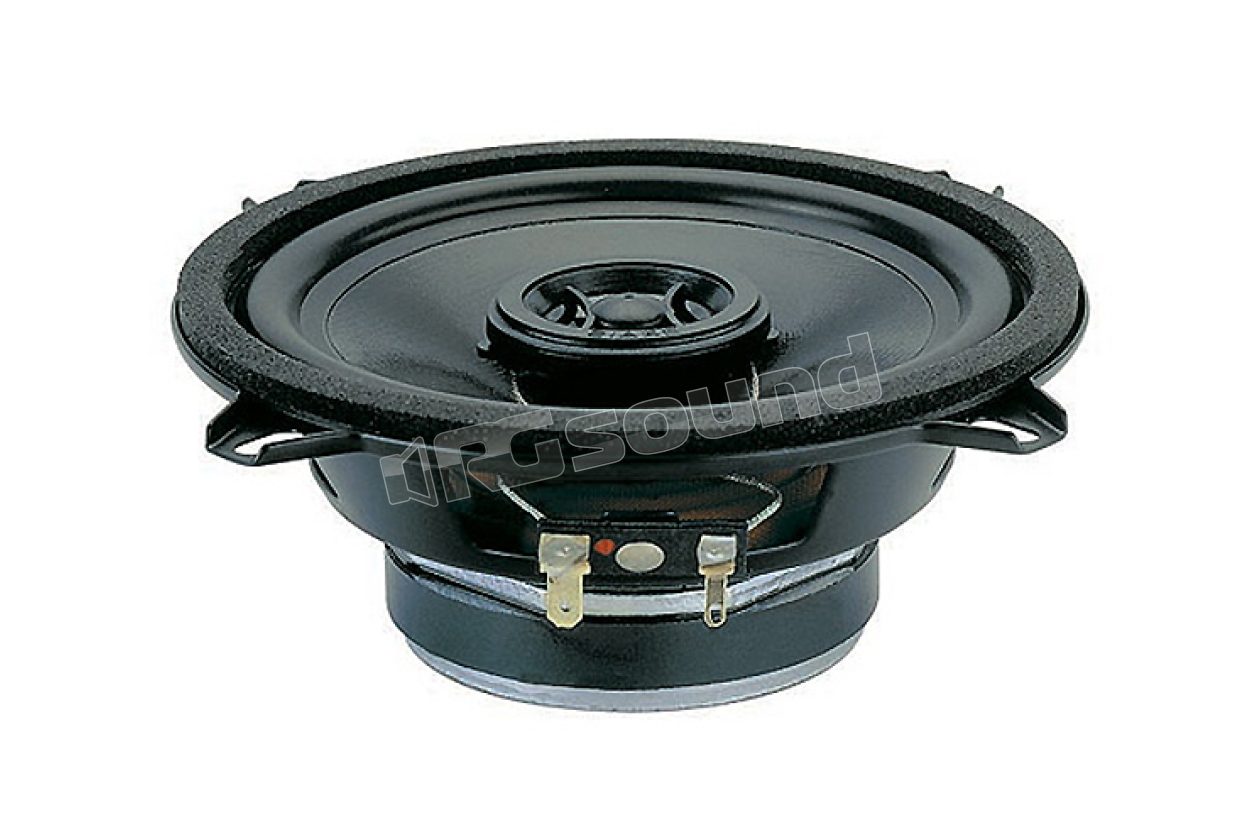

CZ131 Cz Series

Ciare
Your price:
€ 26,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Acciaio
Tweeter Material
Neodimio

Ciare CZ131 two-way coaxial 130mm Cz Series with damped cellulose woofer membrane, neodymium tweeter. Coaxial with excellent quality-to-price ratio, great frequency response linearity and reliability at the price. Ciare is a company constantly keeping up with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of each component.

CZ131 Features

  • Max power: 100W
  • Nominal power: 50W
  • Nominal impedance: 4Ω
  • Diameter: 130mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 91 dB

CZ131 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 4 mm

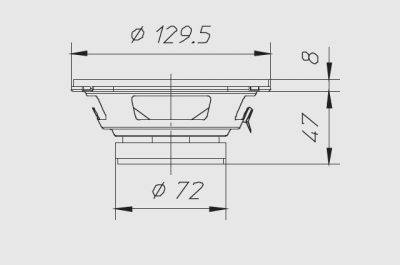

CZ131 Dimensions

  • Outer diameter: 129.5 mm
  • Depth sub-flange: 47 mm
  • Flange thickness: 8 mm
  • Panel hole: 112 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 140
  • Weight with single packaging: 0.51 Kg

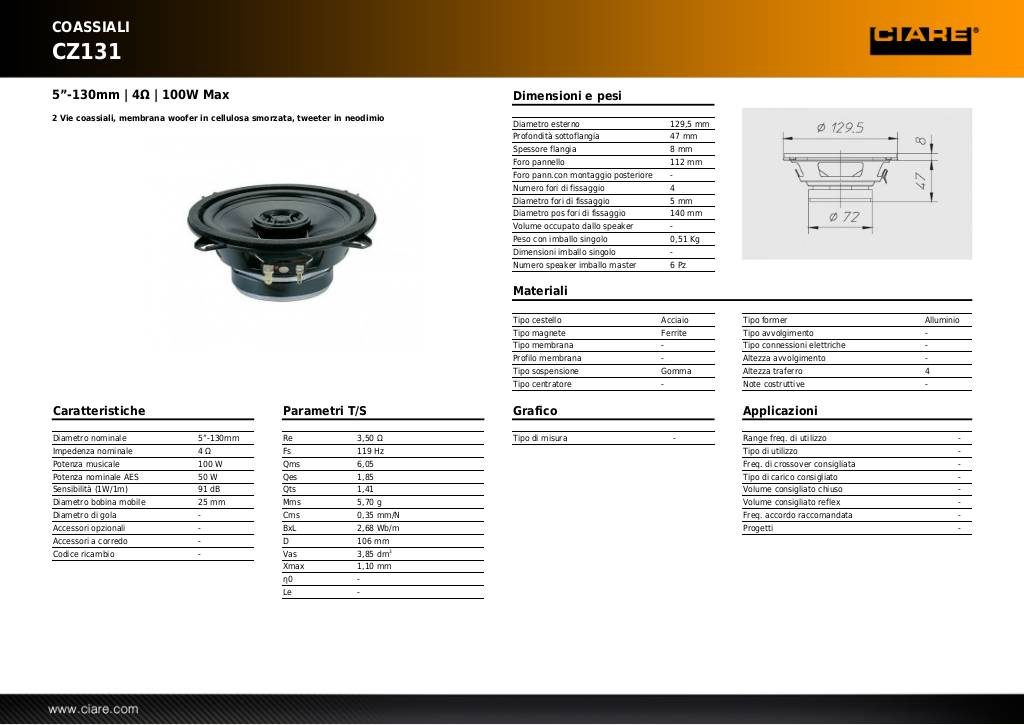

Scheda tecnica

20131030174908-cz131.pdf

1 Ciare CZ131 coaxial speaker
€ 26,00 Price incl. VAT
