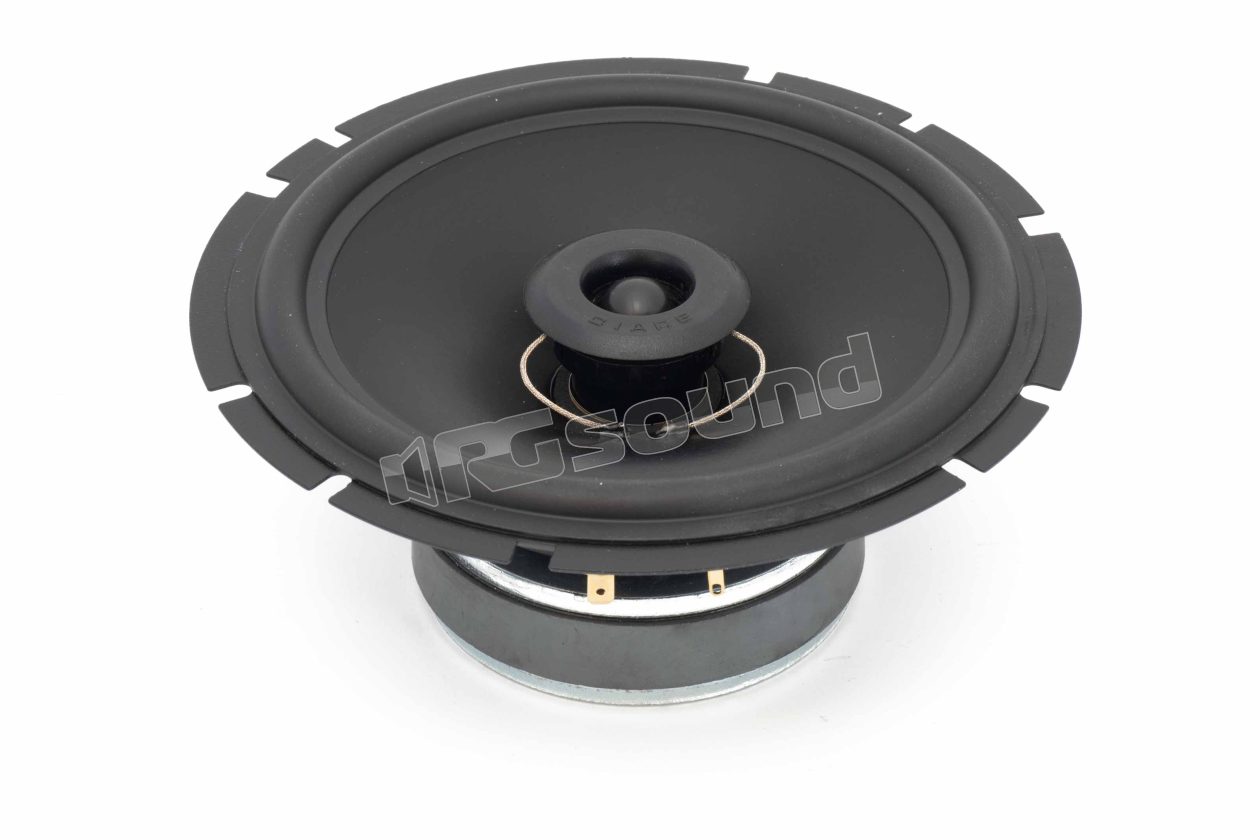

CX171 16.5cm 2-way coaxial CX Series

Ciare
Your price:
€ 46,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
MAX Power
150 Watt
RMS Power
60 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Alluminio
Tweeter Material
Neodimio

CIARE CX171 two-way coaxial 165mm CX Series, damped cellulose woofer membrane and neodymium tweeter. The CX171s are coaxial speakers for factory locations with extended and linear frequency response. Oversized magnet for better control.

The primary use of the Ciare CX171 is as a "full-range" speaker for factory locations, when the vehicle does not have dedicated tweeters for high frequencies. Its structure features a ferrite magnet with a diameter of 86 mm and a steel sheet basket. The depth under flange of this speaker is 64 mm, which allows for easy installation in the door. In fact, the CX171 basket is equipped with 10 mounting slots for speaker installation in the door.

The moving mass of this coaxial includes a damped cellulose woofer membrane, coupled with a rubber suspension kit. The use of rubber makes the suspension life more durable over time, ensuring the integrity of the moving mass for longer. The woofer moving mass is finally completed by the aluminum voice coil, with a diameter of 25 mm (1″). In fact, the power rating declared by Ciare is 60 WattAES, with an average nominal sensitivity of 90 dBSPL 1W/1m. Added to the woofer is a small tweeter with a neodymium magnet, which is responsible for reproducing the highest frequencies. Finally, the nominal impedance of the Ciare CX171 is 4 Ω, a standard value in Car Audio.

CX171 Features

  • Max power: 150W
  • Nominal power: 60W
  • Nominal impedance: 4 Ω
  • Diameter: 165mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 90 dB

CX171 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Gap height: 5 mm

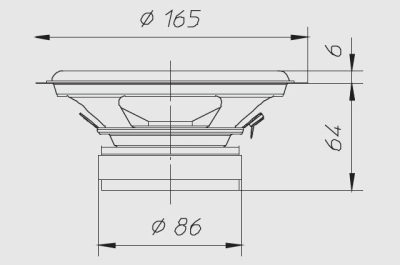

CX171 Dimensions

  • Outer diameter: 165 mm
  • Depth under flange: 64 mm
  • Flange thickness: 6 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 157
  • Weight with single box: 1.06 Kg

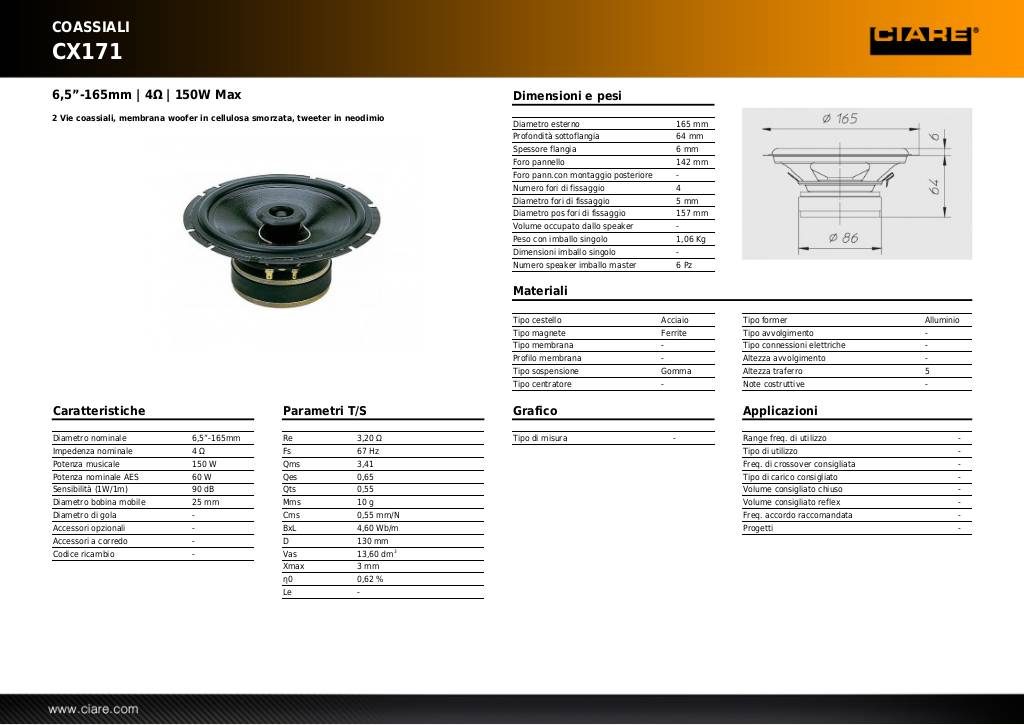

Scheda tecnica

20131030172740-cx171.pdf

1x Ciare CX171 coaxial speaker
€ 46,00 Price incl. VAT
