CX102 CX Series 10cm coaxial

Ciare
Your price:
€ 41,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
MAX Power
100 Watt
RMS Power
40 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Alluminio
Tweeter Material
Neodimio

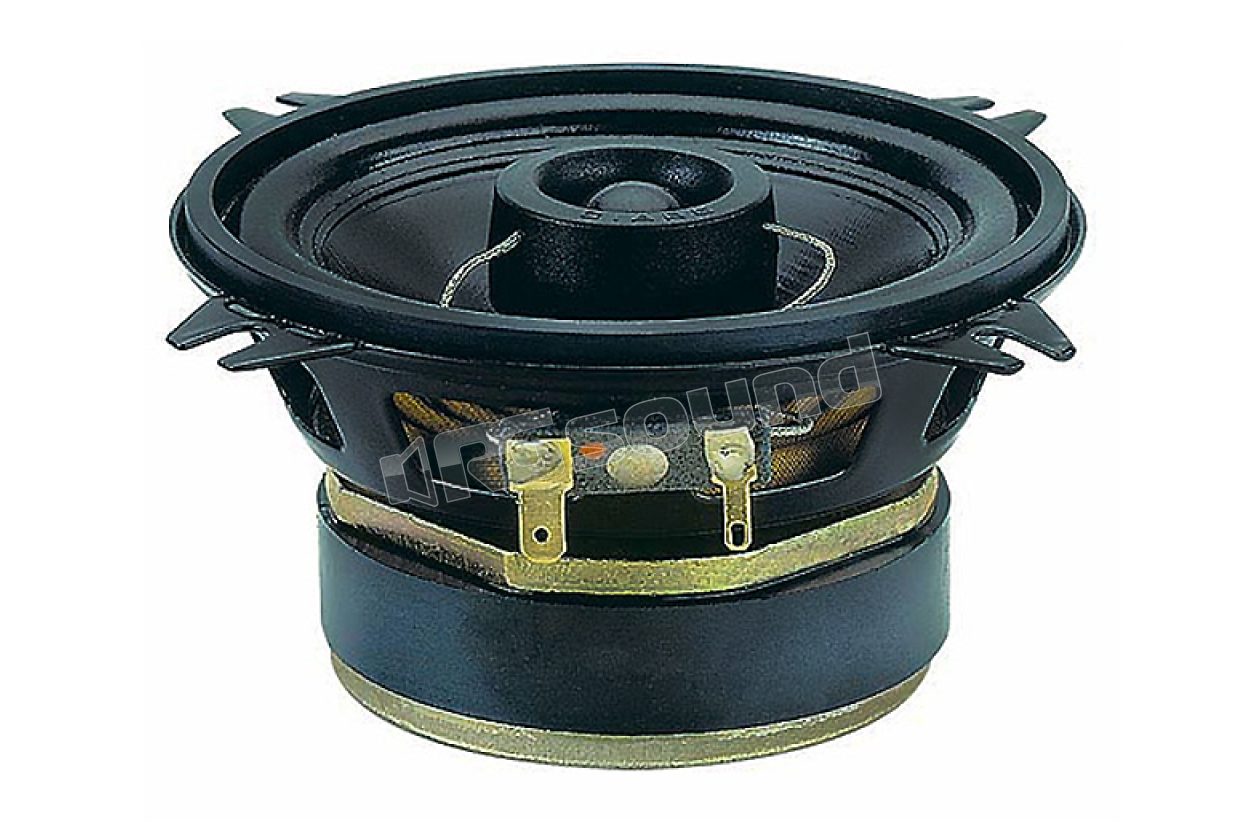

Ciare CX102 two-way coaxial 100mm CX Series with damped cellulose woofer membrane, neodymium tweeter, removable mounting brackets.

The CX102 are coaxial from the assembly with extended and linear frequency response, while the oversized magnet guarantees better control. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CX102 Features

  • Max power: 100W
  • Nominal power: 40W
  • Nominal impedance: 4Ω
  • Diameter: 100mm
  • Mobile coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB

CX102 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Polyurethane
  • Former type: Aluminum
  • Air gap height: 5 mm

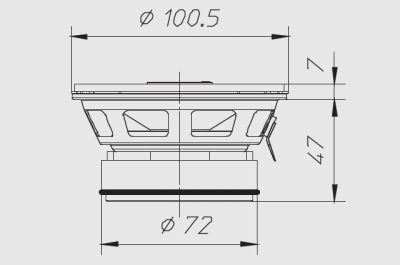

CX102 Dimensions

  • External diameter: 100.5 mm
  • Depth below flange: 47 mm
  • Flange thickness: 7 mm
  • Panel hole: 91 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5.5 mm
  • Mounting hole position diameter: 116
  • Weight with single packaging: 0.73 Kg

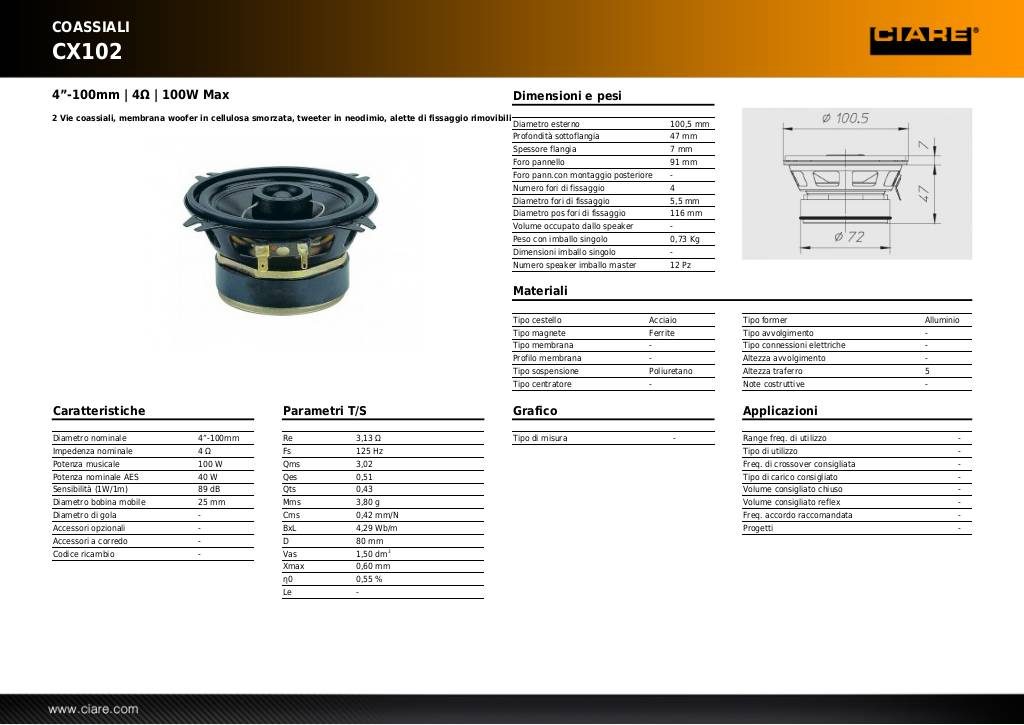

Scheda tecnica

20131030170635-cx102.pdf

1 Ciare CX102 coaxial speaker
€ 41,00 Price incl. VAT
