CX 690 6x9" elliptical coaxial speakers

Hertz
Your price:
€ 139,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
40 - 23.000 Hertz
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
93,5 dB
Impedance
4 Ohm
Woofer Material
Cellulosa e Mica
Tweeter Material
PEI

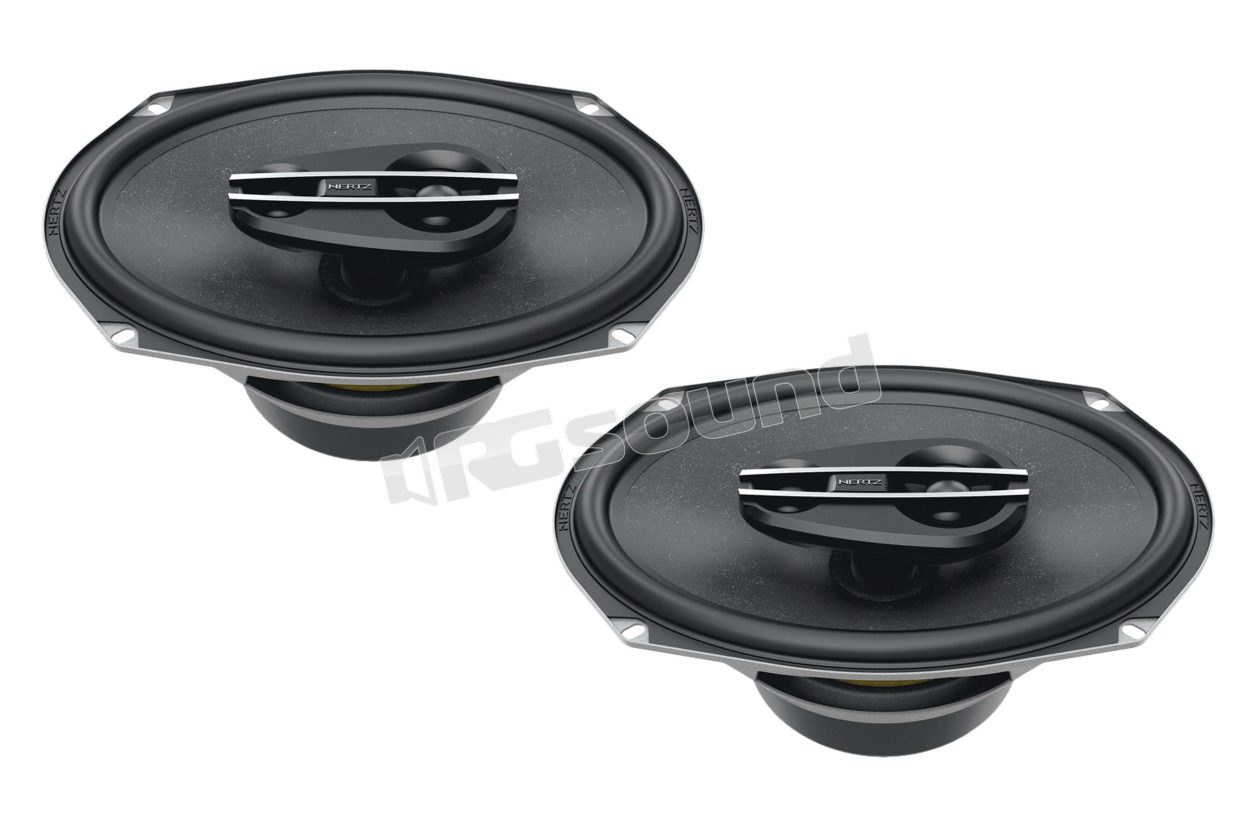

Hertz CX 690 three-way coaxial elliptical speaker with a 6×9 inch cone (grilles included)

Designed to achieve maximum performance in horizontal installations and to offer, even in these difficult conditions, exceptional tonal balance and power handling.

CX 690 Features

  • 6x9 inch elliptical semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enriched with mica powder for excellent balance between lightness and damping.
  • Wide rubber surround designed for long excursion and excellent sound damping.
  • High-density flux ferrite magnet combined with low carbon emission pole plates to reduce distortion at high power levels.
  • Basket with metallic finish acoustically combined with a rubber magnet for complete damping of spurious vibrations.
  • 40 mm (1.58 inch) dome tweeter for efficient reproduction of mid-high frequencies without distortion.
  • 20 mm (0.8 inch) dome supertweeter to maximize the level of very high frequencies in horizontal installations.
  • Tweeter face geometry optimized with FEM (Finite Element Modeling) simulations, to provide an extremely linear frequency response in off-axis installations.
  • Supplied with elegant grilles made with high-strength ABS plastic structure with metallic finish combined with protective metal mesh.

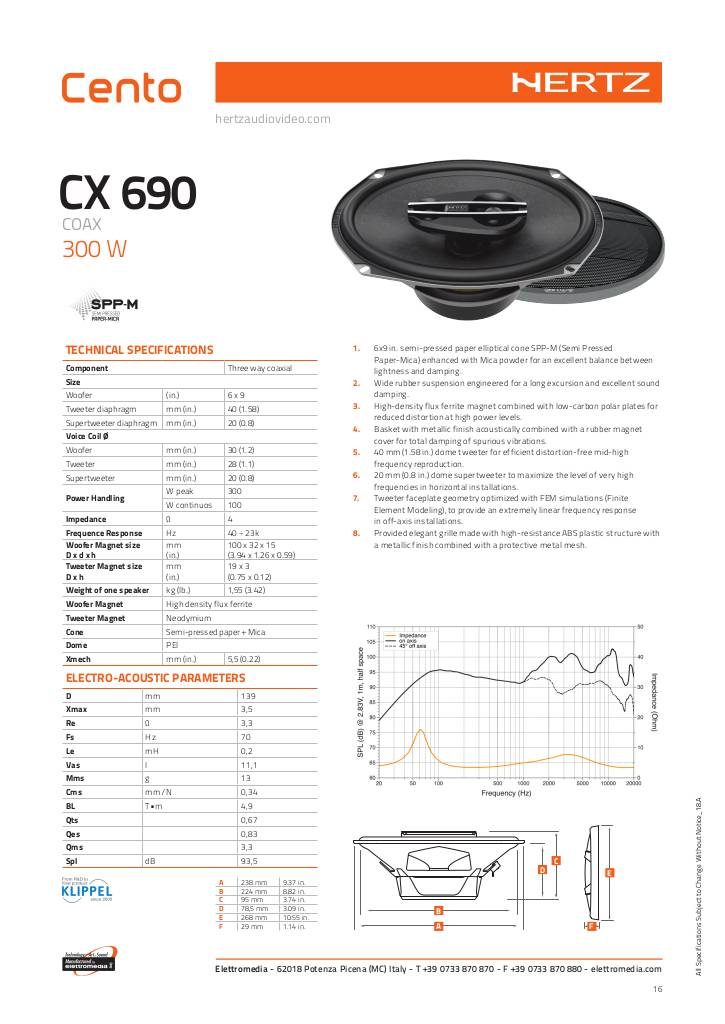

Scheda tecnica

n-20190924150215-hertz-cx690-tech-sheet-rev18a.pdf

Hertz CX 690 Technical Specifications

  • Maximum power handling W 300
  • Nominal power handling W 100
  • Impedance Ω 4
  • Frequency response Hz 40 ÷ 23k
  • Sensitivity dB SPL 93.5
  • Woofer size mm (inches) (6 x 9)
  • Tweeter size mm (inches) 40 (1.58)
  • Supertweeter size mm (inches) 20 (0.8)
  • Woofer voice coil Ø mm (inches) 30 (1.2)
  • Tweeter voice coil Ø mm (inches) 28 (1.1)
  • Woofer magnet High-density flux Ferrite
  • Tweeter magnet Neodymium
  • Woofer cone paper-mica semi-pressed
  • Tweeter dome PEI
  • Supertweeter dome PEI
€ 139,00 Price incl. VAT
