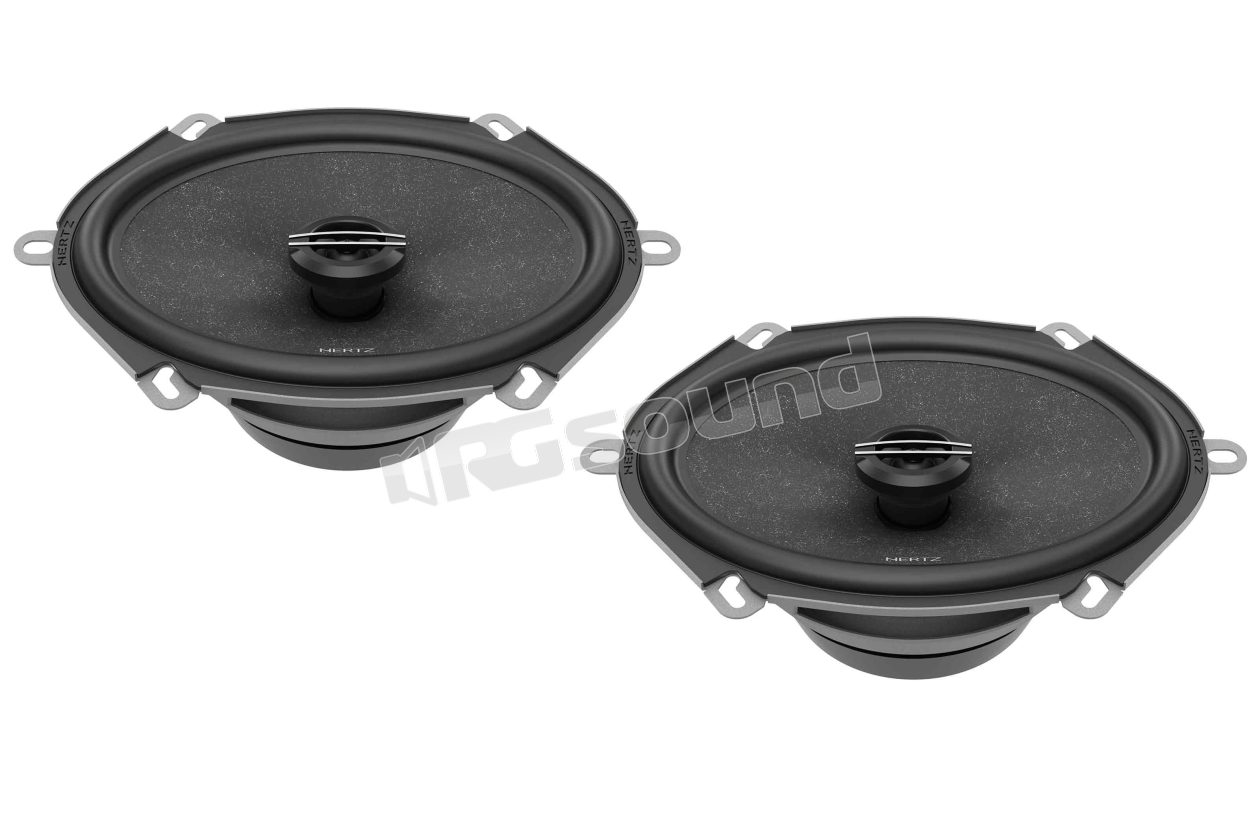

CX 570 5"x7" 2-way elliptical coaxial speakers, Cento Series

Hertz
Your price:
€ 99,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
5x7''
Coaxial Type
2-way
Frequency Response
55 - 22.000 Hertz
MAX Power
210 Watt
RMS Power
70 Watt
Sensitivity
93,5 dB
Impedance
4 Ohm
Woofer Material
Cono in carta semi-pressata
Tweeter Material
Tetolon

Hertz CX 570 Pair of 5"x7" elliptical coaxial speakers 2-way - Cento Series

Coaxial speakers represent a considerable design challenge, and achieving high performance requires major design effort, regularly undertaken by the Hertz R&D team. Hertz CX 570 features a new tweeter with a 24 mm (0.9 in.) Tetolon® dome that delivers more musical and detailed sound compared to more traditional plastic materials. Thanks to the RHFC™ system, the tweeter is adjustable toward the listening point to optimize high frequency response. As with the woofers in two-way systems, coaxial speakers also use SPP-M cones (Semi Pressed Paper-Mica) with superior acoustic and damping characteristics.

CX 570 Features
  • 24 mm (0.9 in.) soft dome tweeter in Tetolon® with ferrofluid-cooled voice coil, for extended and natural high frequencies.
  • RHFC™ tweeter (Rotary High Frequency Contour) adjustable for optimal dispersion and frequency response off-axis at the listening point.
  • Adjustable high frequency system for perfect frequency response toward any listening point.
  • Tweeter faceplate with optimized geometry using FEM (Finite Element Modeling) simulations, to provide extremely linear frequency response off-axis.
  • Woofer voice coil with 25 mm (1 in.) diameter and aluminum former to ensure high excursion and power handling.
  • 5x7 in. SPP-M semi-pressed paper cone (Semi Pressed Paper-Mica) enriched with Mica powder for excellent balance between lightness and damping.
  • High flux density ferrite magnet combined with low-carbon pole plates, for lower distortion at high power levels.
  • Compact four-spoke basket acoustically transparent coupled with a rubber magnet cover for total damping of spurious vibrations.
  • Elegant grille supplied as standard with high-strength ABS plastic structure with metallized finish combined with protective metal mesh.

Hertz CX 570 Technical specifications

  • Woofer size mm (in.) 5 x 7
  • Tweeter diaphragm mm (in.) 24 (0.9)
  • Ø voice coil
  • Woofer mm (in.) 25 (1)
  • Tweeter mm (in.) 13 (0.5)
  • Power handling
  • W peak 210
  • W continuous 70
  • Impedance Ω 4
  • SPL 93.5 dB
  • Frequency response Hz 55 ÷ 22k
  • Woofer magnet dimensions: D x d x h 85 x 32 x 15 mm (3.35" x 1.26" x 0.59")
  • Tweeter magnet dimensions: D x h 13 x 2 mm (0.51" x 0.08")
  • Weight of one speaker kg (lb.) 1.0 (2.2)
  • Woofer magnet High flux density ferrite
  • Tweeter magnet Neodymium
  • Cone Semi-pressed paper + Mica
  • Dome Tetolon
