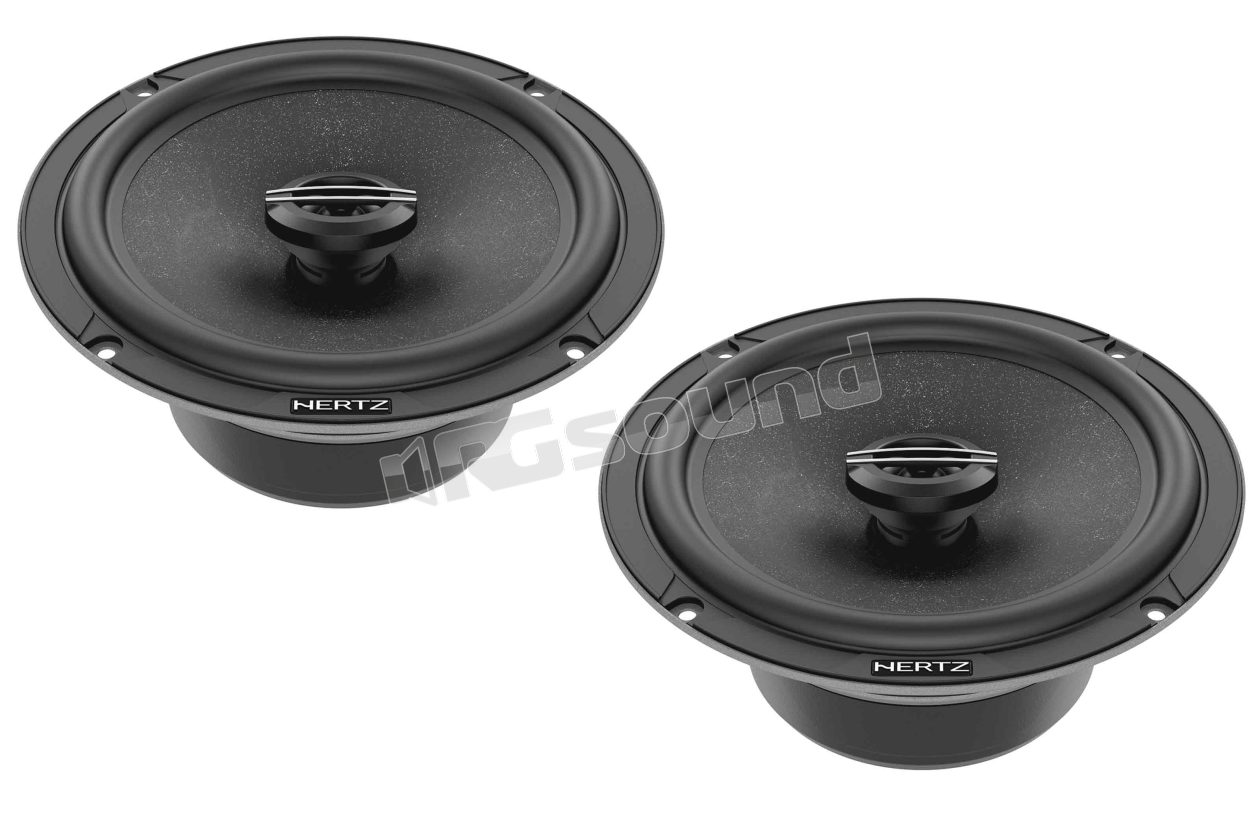

CX 165 165mm Coaxial Speakers Cento Series

Hertz
Your price:
€ 99,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
55 - 22.000 Hertz
MAX Power
210 Watt
RMS Power
70 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cono in carta semi-pressata
Tweeter Material
Tetolon

Hertz CX 165 Pair of 16.5cm coaxial 2-way speakers Cento series

Coaxial speakers represent a significant design challenge, and achieving high performance requires great design effort, regularly undertaken by the Hertz R&D team.


Hertz CX 165 features a new tweeter with 24 mm (0.9 in.) Tetolon® dome that delivers a more musical and detailed sound compared to more traditional plastic materials. Thanks to the RHFC™ system, the tweeter is adjustable toward the listening point to optimize high frequency response. Like the woofers in two-way systems, coaxials also employ SPP-M (Semi Pressed Paper-Mica) cones with superior acoustic and damping characteristics.

CX 165 Features

  • 24 mm (0.9 in.) soft dome tweeter in Tetolon® with ferrofluide cooled coil, for extended and natural high frequencies.
  • RHFC™ (Rotary High Frequency Contour) tweeter angled and adjustable toward the listener for perfect frequency response in any installation scenario.
  • Tweeter faceplate with geometry optimized through FEM (Finite Element Modeling) simulations, to provide extremely linear off-axis frequency response.
  • Woofer coil 25 mm (1 in.) diameter with aluminum former to ensure high excursion and power handling.
  • 165 mm (6.5 in.) semi-pressed paper SPP-M (Semi Pressed Paper-Mica) cone enriched with Mica powder for excellent balance between lightness and damping.
  • High flux density ferrite magnet combined with low carbon content pole plates, for reduced distortion at high power levels.
  • Compact three-spoke basket acoustically transparent coupled with rubber magnet cover for complete damping of spurious vibrations.
  • Elegant optional grille with high-strength ABS plastic structure and metallized finish combined with metal protective mesh.

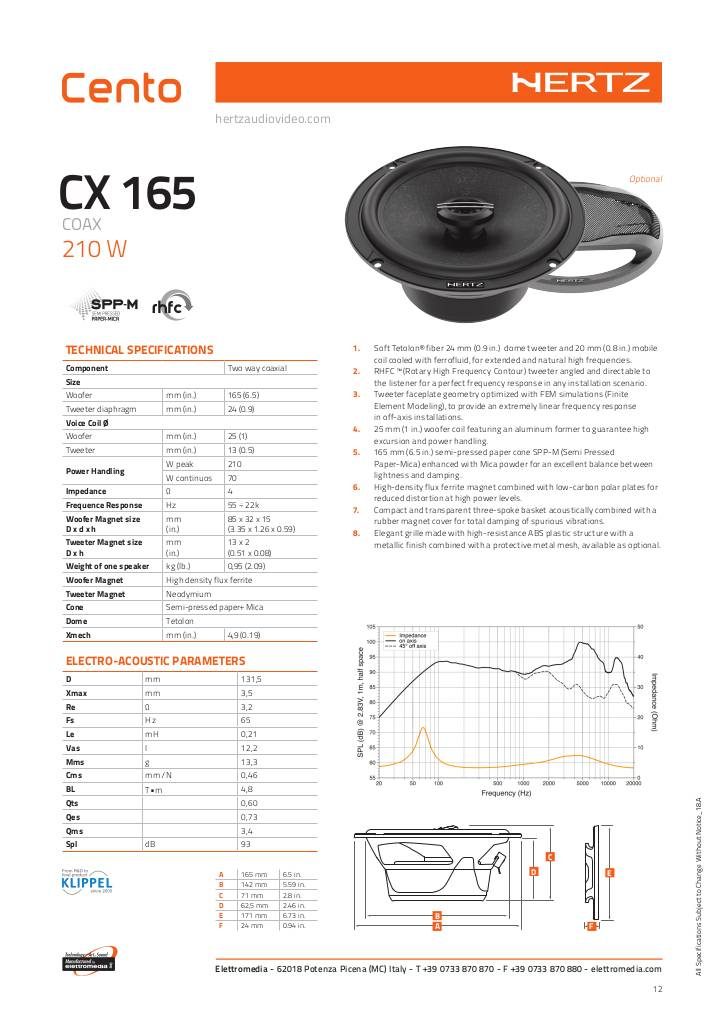

scheda tecnica

n-20190123191628-hertz-cx165-tech-sheet-rev18a-1.pdf

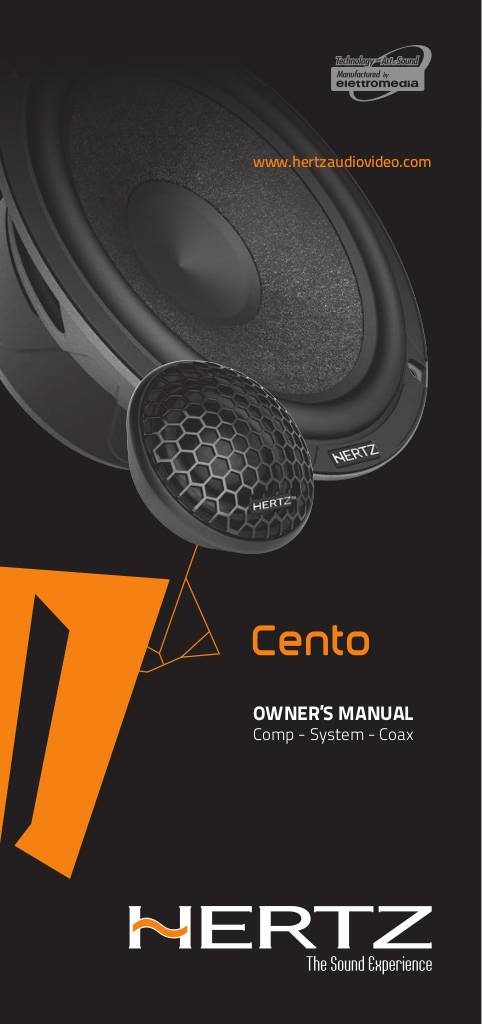

Manuale di installazione

n-20190123191628-hertz-cento-owners-manual-speaker-rev18b2.pdf

Hertz CX 165 Technical Specifications

  • Two-way Coaxial Component
  • Woofer Dimensions mm (inches) 165 (6.5)
  • Tweeter Diaphragm mm (inches) 24 (0.9)
  • Voice Coil Diameter Ø:
    • Woofer mm (inches) 25 (1)
    • Tweeter mm (inches) 13 (0.5)
  • Power Handling
    • W peak 210
    • W continuous 70
  • Impedance Ω 4
  • Frequency Response Hz 55 ÷ 22k
  • Woofer Magnet Dimensions: D x D x H 85 x 32 x 15 mm (3.35 "x 1.26" x 0.59 ")
  • Tweeter Magnet Dimensions D x h 13 x 2 mm (0.51 "x 0.08")
  • Speaker Weight kg (lb.) 0.95 (2.09)
  • Woofer Magnet High flux density ferrite
  • Tweeter Magnet Neodymium
  • Cone Semi-pressed paper + Mica
  • Dome Tetolon
€ 99,00 Price incl. VAT
