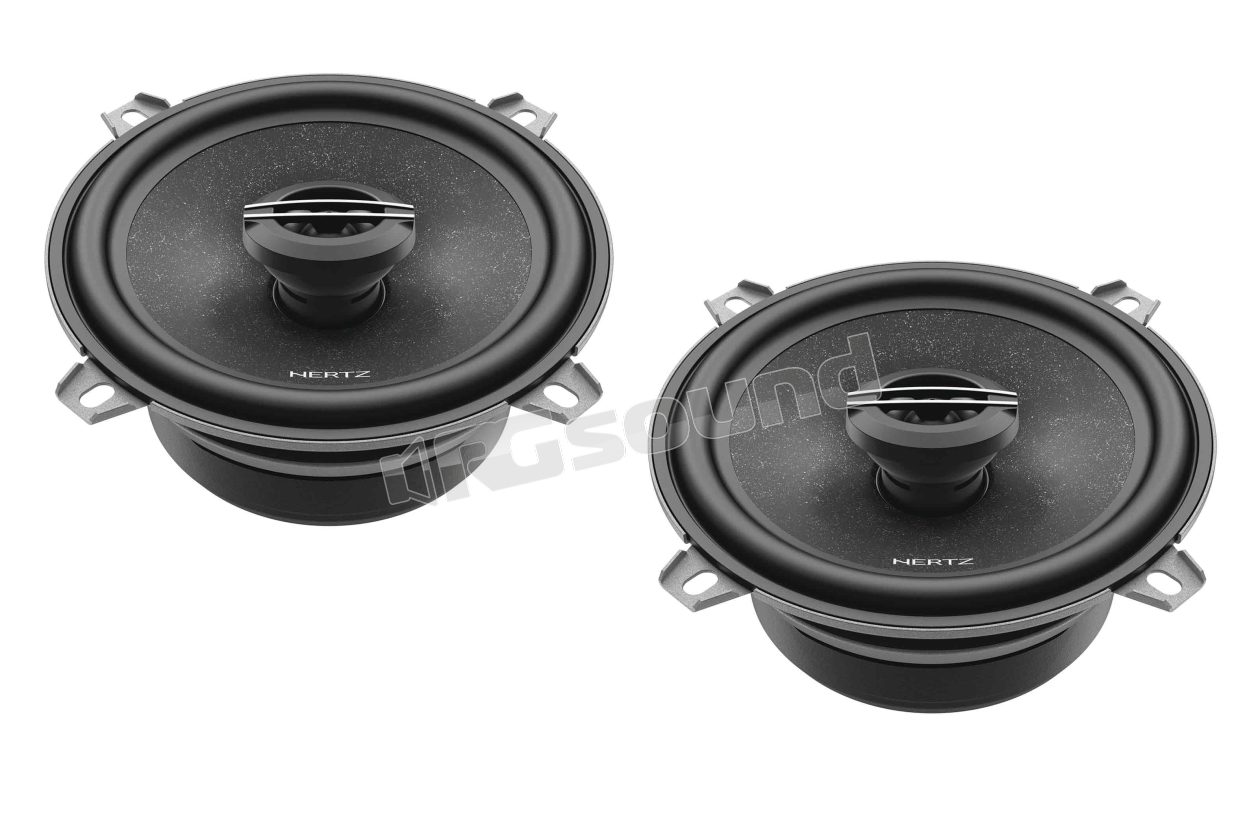

CX 130 Pair of 13cm coaxial speakers - Cento Series

Hertz
Your price:
€ 92,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
Frequency Response
65 - 22.000 Hertz
MAX Power
150 Watt
RMS Power
50 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cono in carta semi-pressata
Tweeter Material
Tetolon

Hertz CX 130 Pair of 13cm coaxial 2-way speakers with adjustable silk tweeter - Cento Series

Coaxial speakers represent a significant design challenge, to achieve high performance a great design effort is required, regularly undertaken by the Hertz R&D team.

Hertz CX 130 features a new tweeter with a 24 mm (0.9 in.) Tetolon® dome that delivers a more musical and detailed sound compared to more traditional plastic materials. Thanks to the RHFC™ system, the tweeter is adjustable towards the listening point to optimize the high frequency response. As with woofers in two-way systems, coaxial speakers also use SPP-M (Semi Pressed Paper-Mica) cones with superior acoustic and damping characteristics.

CX 130 Features

  • 24 mm (0.9 in.) soft dome tweeter in Tetolon® with ferrofluid cooled coil, for extended and natural high frequencies.
  • RHFC™ tweeter (Rotary High Frequency Contour) angled and adjustable towards the listener for perfect frequency response in any installation scenario.
  • Tweeter faceplate with geometry optimized by FEM (Finite Element Modeling) simulations, to provide extremely linear off-axis frequency response.
  • 25 mm (1 in.) diameter woofer coil with aluminum former to ensure high excursion and power handling.
  • 130 mm (5 in.) SPP-M semi-pressed paper cone (Semi Pressed Paper-Mica) enriched with Mica powder for excellent balance between lightness and damping.
  • High flux density ferrite magnet combined with low carbon content pole plates, for reduced distortion at high power levels.
  • Compact three-spoke basket acoustically transparent combined with a rubber magnet cover for complete damping of spurious vibrations.
  • Elegant optional grille with high-strength ABS plastic structure and metallized finish combined with a metal protective mesh (see accessories).

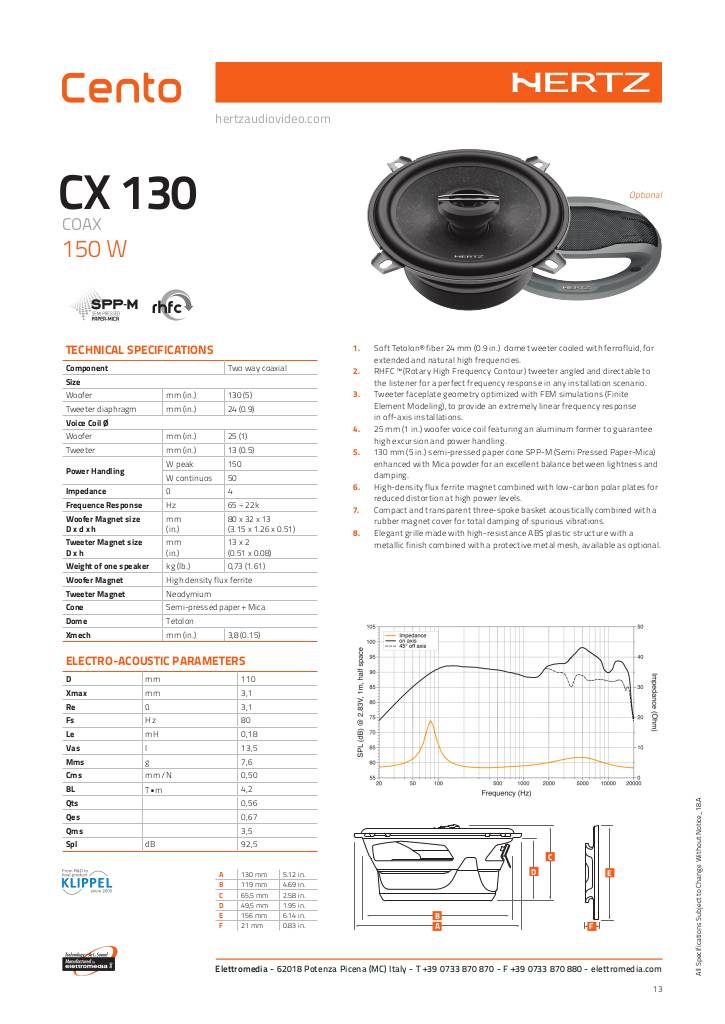

scheda tecnica

n-20190628102733-hertz-cx130-tech-sheet-rev18a.pdf

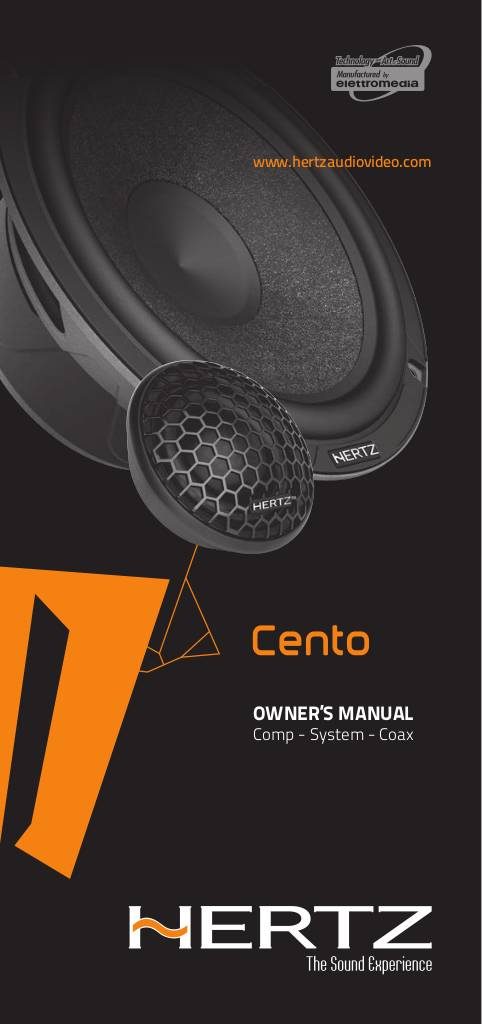

Manuale di installazione

n-20190628102733-hertz-cento-owners-manual-speaker-rev18b3.pdf

Hertz CX 130 Technical Specifications

  • Impedance Ω 4
  • Frequency response Hz 65 ÷ 22k
  • SPL 92 dB
  • Woofer Magnet dimensions D x d x h mm 80 x 32 x 13 (3.15" x 1.26" x 0.51")
  • Tweeter magnet dimensions D x h mm 13 x 2 (0.51" x 0.08")
  • Speaker weight kg (lb.) 0.73 (1.61)
  • Woofer magnet High flux density ferrite
  • Tweeter magnet Neodymium
  • Cone Semi-pressed paper + Mica
  • Dome Tetolon
  • Xmech mm (in.) 3.8 (0.15)
  • Dimensions
    • Woofer mm (in.) 130 (5)
    • Tweeter diaphragm mm (in.) 24 (0.9)
  • Voice coil diameter Ø
    • Woofer mm (in.) 25 (1)
    • Tweeter mm (in.) 13 (0.5)
  • Power handling
    • W peak 150
    • W continuous 50
