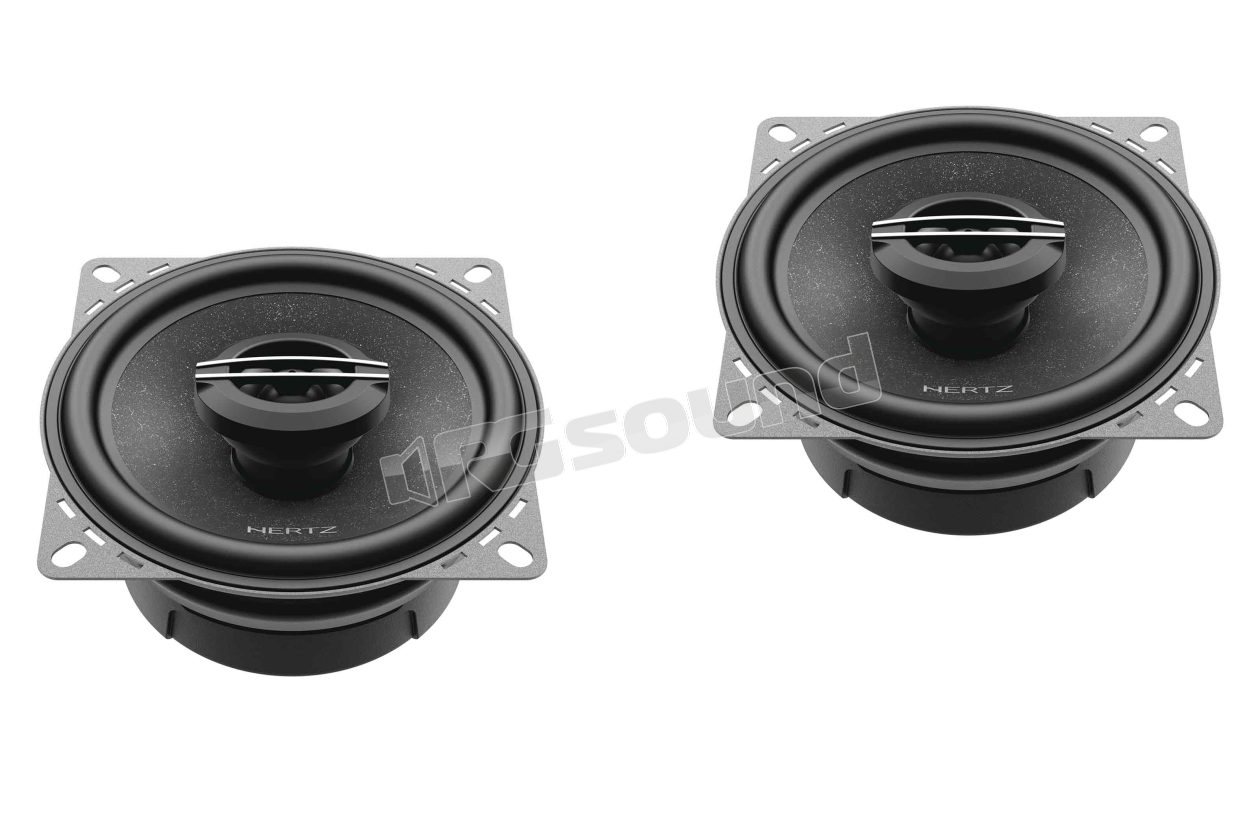

CX 100 10 cm 2-way coaxial speakers, Cento Series

Hertz
Your price:
€ 79,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
80 - 22.000 Hertz
MAX Power
120 Watt
RMS Power
40 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cono in carta semi-pressata
Tweeter Material
Tetolon

Hertz CX 100 Pair of 10cm 2-way coaxial speakers Serie Cento

Coaxial speakers represent a considerable design challenge, achieving high performance requires great design effort, regularly tackled by the Hertz R&D team. Hertz CX 100 features a new tweeter with a 24 mm (0.9 in.) Tetolon® dome with a more musical and detailed sound compared to more traditional plastic materials. Thanks to the RHFC™ system, the tweeter is adjustable toward the listening point to optimize the response to high frequencies. As with the woofers of two-way systems, coaxials also employ cones in SPP-M (Semi Pressed Paper-Mica) with superior acoustic and damping characteristics.

CX 100 Features

  • 24 mm (0.9 in.) soft dome tweeter in Tetolon® with ferrofluide-cooled voice coil, for extended and natural high frequencies.
  • RHFC™ tweeter (Rotary High Frequency Contour) angled and adjustable toward the listener for perfect frequency response in any installation scenario.
  • Tweeter faceplate with geometry optimized through FEM (Finite Element Modeling) simulations, to provide an extremely linear off-axis frequency response.
  • 25 mm (1 in.) diameter woofer voice coil with aluminum former to ensure high excursion and power handling.
  • 100 mm (4 in.) SPP-M semi-pressed paper cone (Semi Pressed Paper-Mica) enriched with Mica powder for excellent balance between lightness and damping.
  • High flux density ferrite magnet combined with low carbon content pole plates, for reduced distortion at high power levels.
  • Compact three-spoke basket acoustically transparent combined with a rubber magnet cover for complete damping of spurious vibrations.
  • Elegant optional grille with high-strength ABS plastic structure and metallized finish combined with a metal protective mesh.

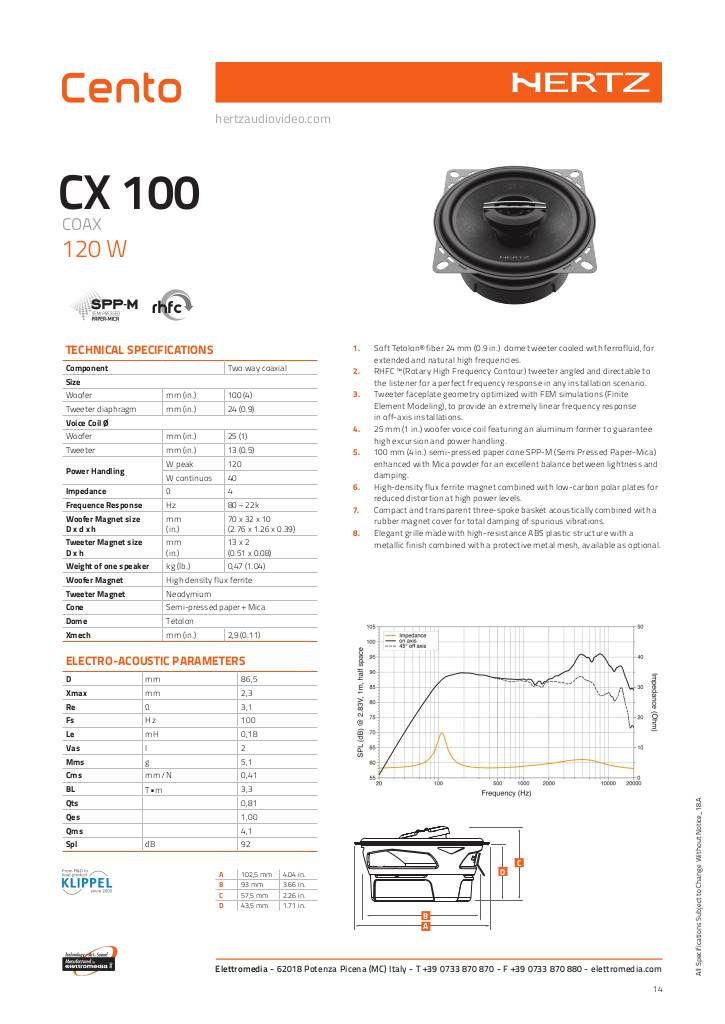

Scheda tecnica

n-20250627174123-cx100.pdf

Hertz CX 100 Technical specifications

  • Component Coaxial speakers
  • Dimensions mm 100
  • Continuous power handling W 40
  • Peak power handling W 120
  • Impedance Ohm 4
  • Woofer voice coil Ø mm 25
  • Tweeter voice coil Ø mm 13
  • Frequency response Hz 80 ÷ 22k
  • Woofer magnet dimensions D x d x h mm 70 x 32 x 10
  • Tweeter magnet dimensions D x h mm 13 x 2
  • Weight of one speaker kg 0.47
  • Woofer magnet High flux density ferrite
  • Tweeter magnet Neodymium
  • Cone Semi-pressed paper + Mica
  • Dome Tetolon
  • Xmech mm 2.9
€ 79,00 Price incl. VAT
