CW387

Ciare
Your price:
€ 250,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
35 -1.500 Hertz
Sensitivity
99 dB
Impedance
4 Ohm
Weight
12 Kg
Installation Depth
161 mm
Woofer Material
Kapton

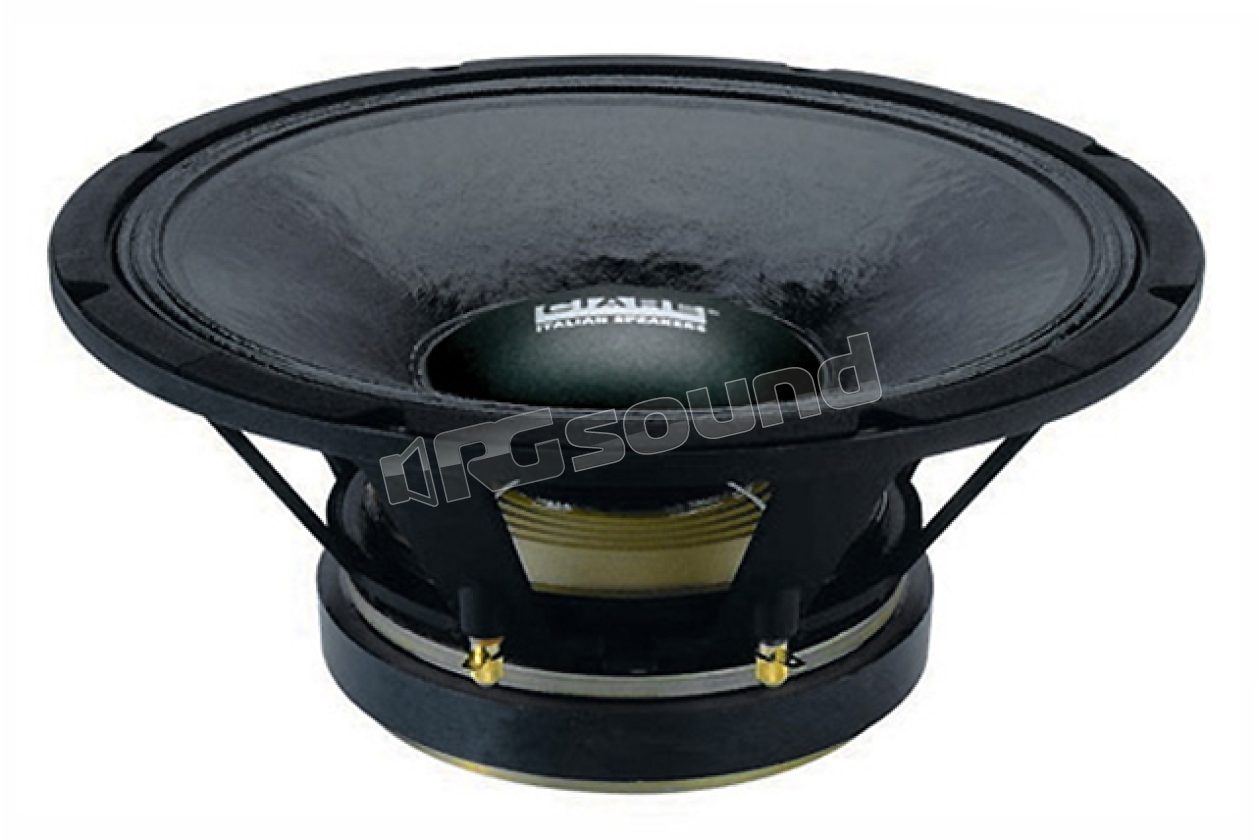

Ciare CW387 woofer 380mm with waterproofed cellulose membrane, canvas suspension with NOMEX ®, sandwich winding with aluminum wire. Ciare is a company constantly keeping pace with technological innovations and under the continuous drive of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CW387 Features

  • Max power: 1000W
  • Nominal power: 500W
  • Nominal impedance: 4Ω
  • Diameter: 380mm
  • Voice coil diameter: 100mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 90 dm3
  • Recommended tuning frequency: 50 Hz

CW387 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Kapton
  • Winding type: Aluminum sandwich
  • Air gap height: 10 mm

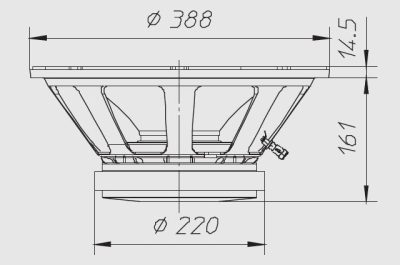

Dimensions CW387

  • Outer diameter: 388 mm
  • Depth under flange: 161 mm
  • Flange thickness: 14.5 mm
  • Panel cutout: 350 mm
  • Number of mounting holes: 8
  • Diameter of mounting holes: 6.5 mm
  • Diameter of mounting hole positions: 370
  • Weight with single packaging: 12.10 Kg

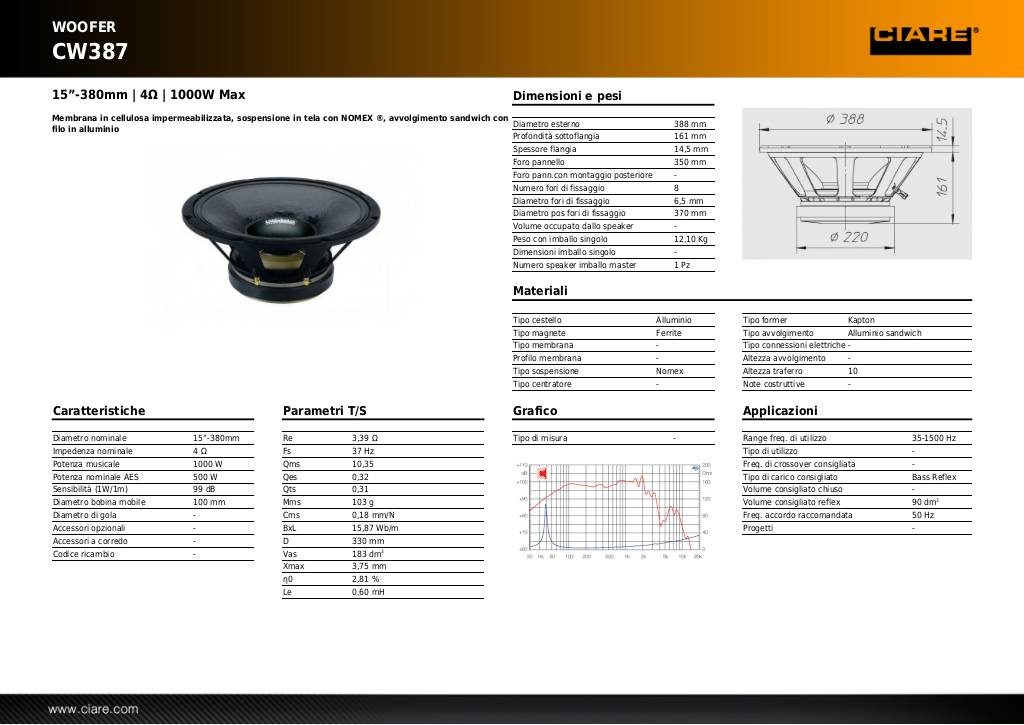

Scheda tecnica

20131030162646-cw387.pdf

1 Ciare woofer speaker CW387
€ 250,00 Price incl. VAT
