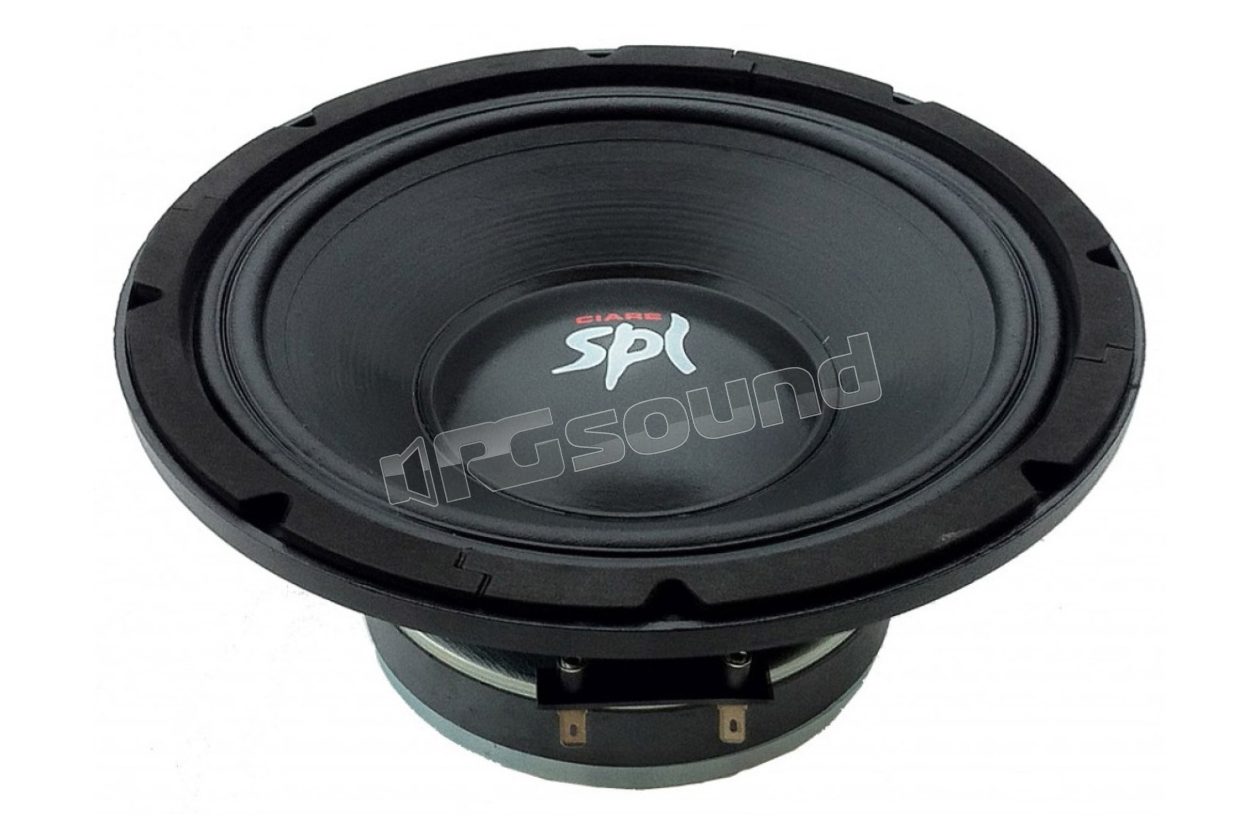

CW261SPL SPL woofer

Ciare
Your price:
€ 128,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt

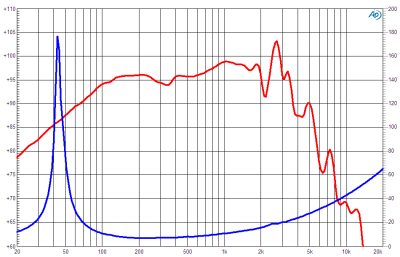

Frequency Response
50 - 3.500 Hertz
Sensitivity
96.5 dB
Impedance
8 Ohm
Weight
4,7 Kg
Installation Depth
103 mm
Woofer Material
Cellulosa trattata

Ciare CW260SPL 250 mm woofer with 64 mm single-layer flat wire voice coil, waterproofed cellulose diaphragm, NOMEX cloth suspension. The main features are a robust die-cast aluminum basket, a 64mm (2.5") diameter voice coil on fiberglass support and power handling that exceeds 600 W musical.

CM202SPL Specifications

Musical power: 600 W
Nominal AES power: 300 W
Nominal diameter: 10''-250mm
Nominal impedance: 8Ω
Voice coil: 64mm
Sensitivity 1W/1m: 96.5 dB
Usage type: Car SPL Competitions
Recommended load type: Bass Reflex
Recommended reflex volume: 29 dm3
Recommended tuning freq: 57 Hz
Freq range of use: 50-3500 Hz

CM202SPL Materials
Basket type: Aluminum
Magnet type: Ferrite
Diaphragm type: Treated cellulose fiber
Suspension type: Nomex
Centering type: Nomex
Former type: Fiberglass
Winding type: Copper
Connection type: Faston

CM202SPL Dimensions
Outer diameter: 266 mm
Depth under flange: 103 mm
Flange thickness: 9.80 mm
Panel hole: 235 mm
Number of mounting holes: 8
Mounting hole diameter: 5 mm
Mounting hole position diameter: 253
Weight with single packaging: 4.7 Kg

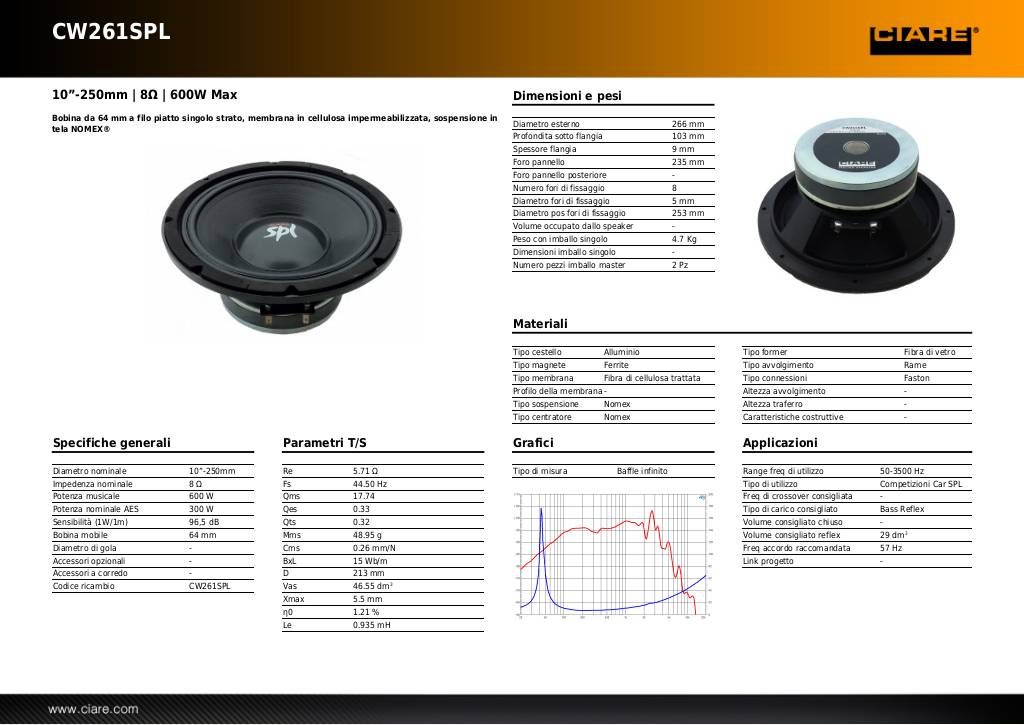

Scheda tecnica

20140411123346-cw261spl.pdf

CW261SPL Woofer
€ 128,00 Price incl. VAT
