CW260SPL SPL Woofer

Ciare

Coming soon

Your price:
€ 128,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
270 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
80 - 3.500 Hertz
Sensitivity
96.5 dB
Impedance
4 Ohm
Weight
4,7 Kg
Installation Depth
103 mm
Woofer Material
Cellulosa trattata

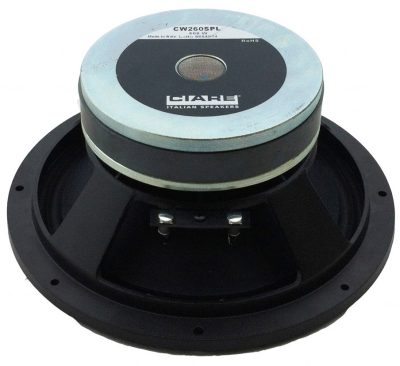

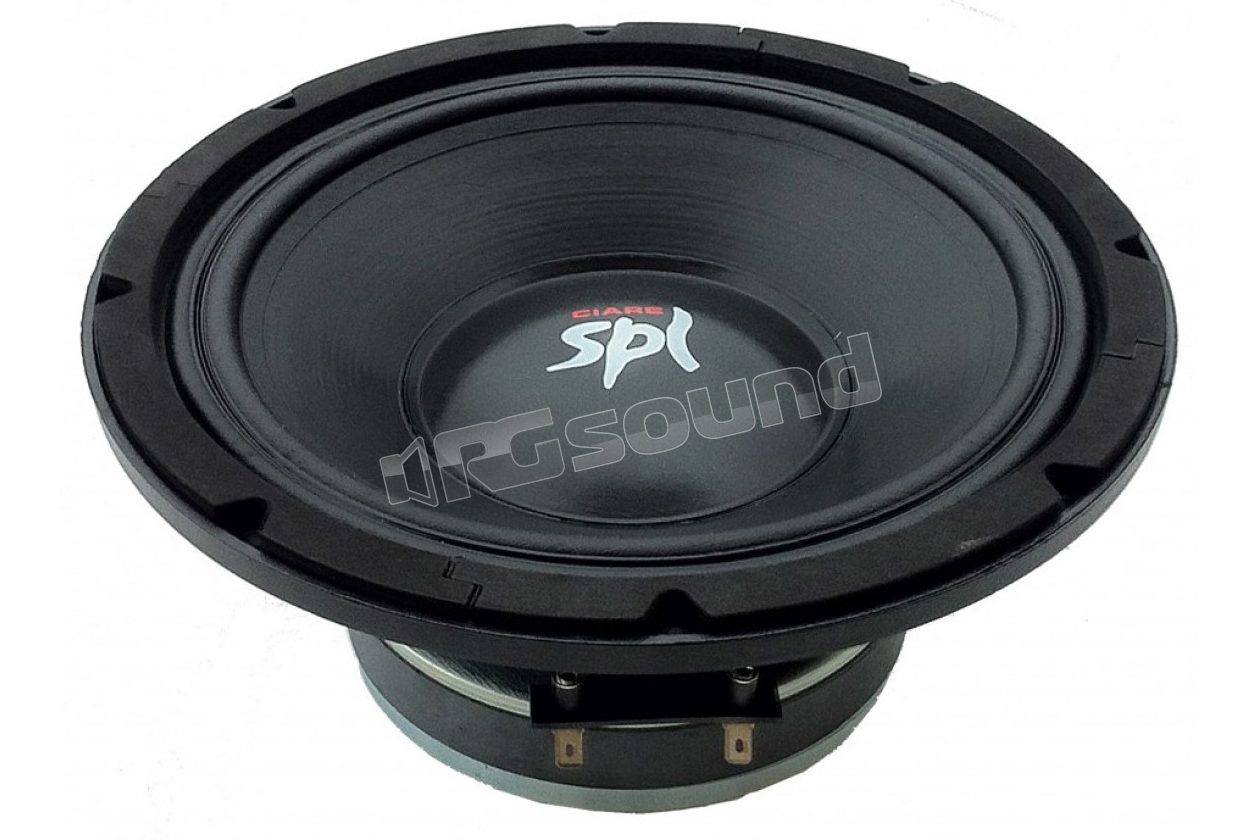

Ciare CW260SPL Woofer 266 mm with 64mm voice coil

266 mm woofer with 64mm voice coil, waterproofed cellulose membrane, NOMEX cloth suspension. The main features are a robust die-cast aluminum basket, a 64mm (2.5") diameter voice coil on fiberglass support and a power handling that exceeds 600 W musical.

CM202SPL Specifications

  • Musical power: 600 W
  • Nominal AES power: 300 W
  • Nominal diameter: 10''-250mm
  • Nominal impedance: 4 Ohm
  • Moving voice coil: 64mm
  • Sensitivity 1W/1m: 96.5 dB
  • Type of use: Car SPL Competitions
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 8 dm3
  • Recommended tuning frequency: 97 Hz
  • Frequency range of use: 80-3500 Hz

CM202SPL Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Membrane type: Treated cellulose fiber
  • Suspension type: Nomex
  • Dust cap type: Nomex
  • Former type: Fiberglass
  • Winding type: Copper
  • Connection type: Faston

CM202SPL Dimensions

  • Outer diameter: 266 mm
  • Depth under flange: 103 mm
  • Flange thickness: 9.80 mm
  • Panel hole: 235 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 253
  • Weight with single package: 4.7 Kg

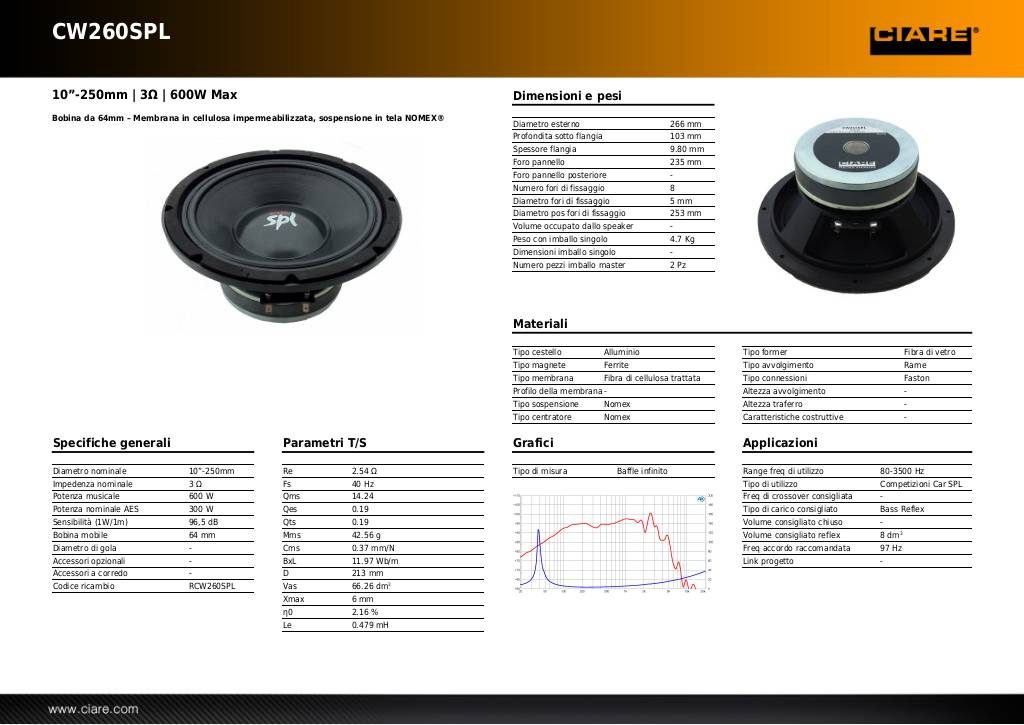

Scheda tecnica

20140411122734-cw260spl.pdf

2 CW260SPL woofers
Coming soon
