CW170Z 165mm woofer, 50W RMS / 120W max power

Ciare
Your price:
€ 26,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
120 Watt
RMS Power
50 Watt

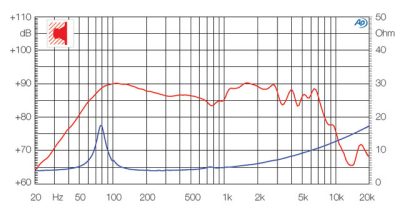

Frequency Response
50 -7.000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Weight
0,72 Kg
Installation Depth
60 mm
Woofer Material
Alluminio

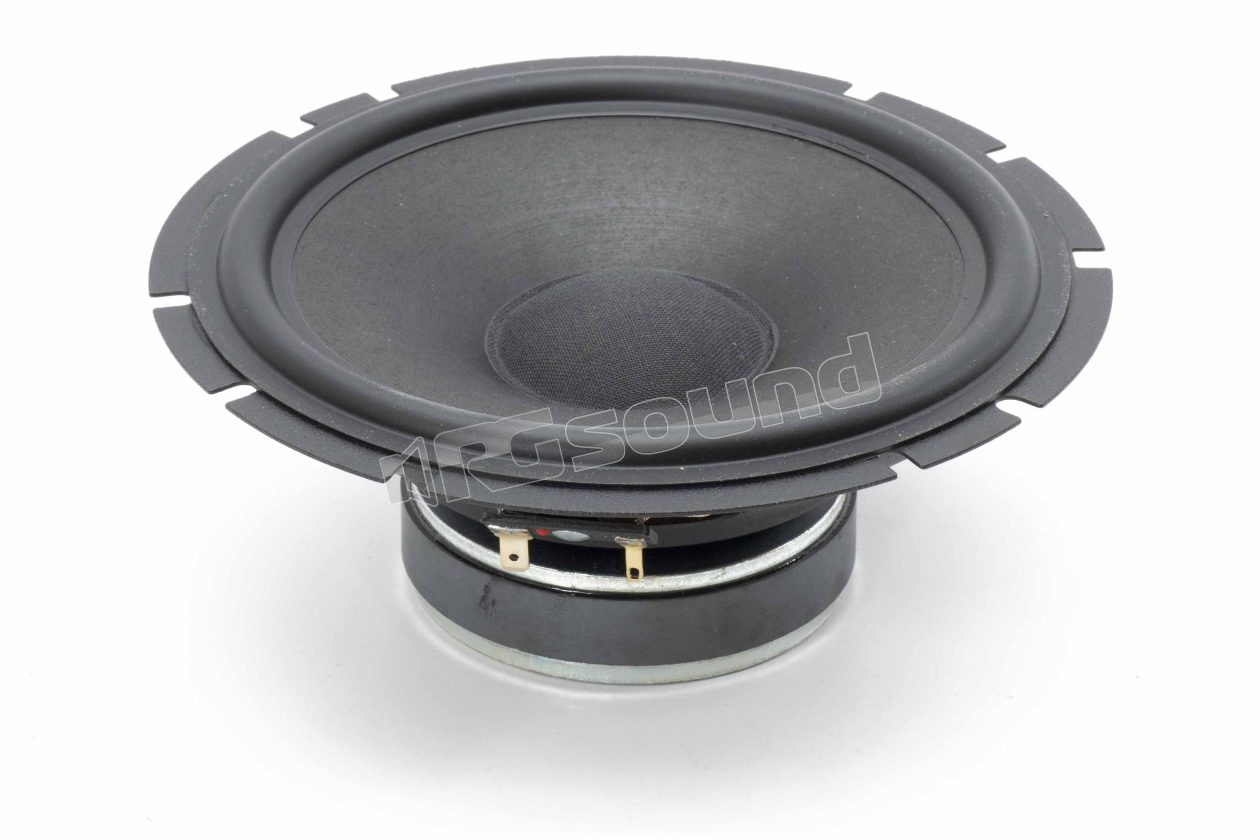

Ciare CW170Z 165mm woofer with damped cellulose membrane and rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

CW170Z Features

  • Max power: 120W
  • Nominal power: 50W
  • Nominal impedance: 4Ω
  • Diameter: 165mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB

CW170Z Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 4 mm

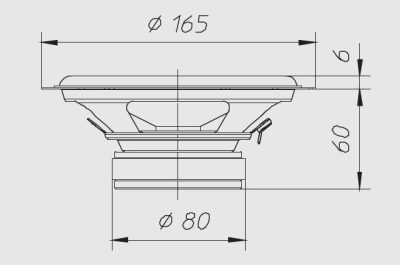

CW170Z Dimensions

  • Outer diameter: 165 mm
  • Depth below flange: 60 mm
  • Flange thickness: 6 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 157
  • Weight with single packaging: 0.72 Kg

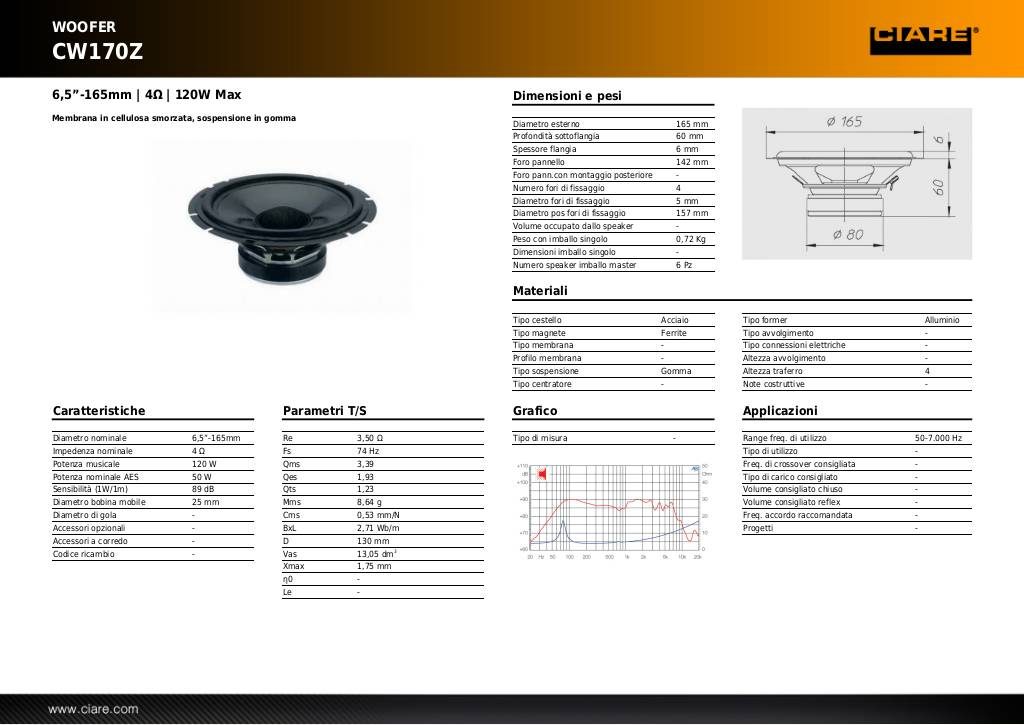

Scheda tecnica

20131029175826-cw170z.pdf
