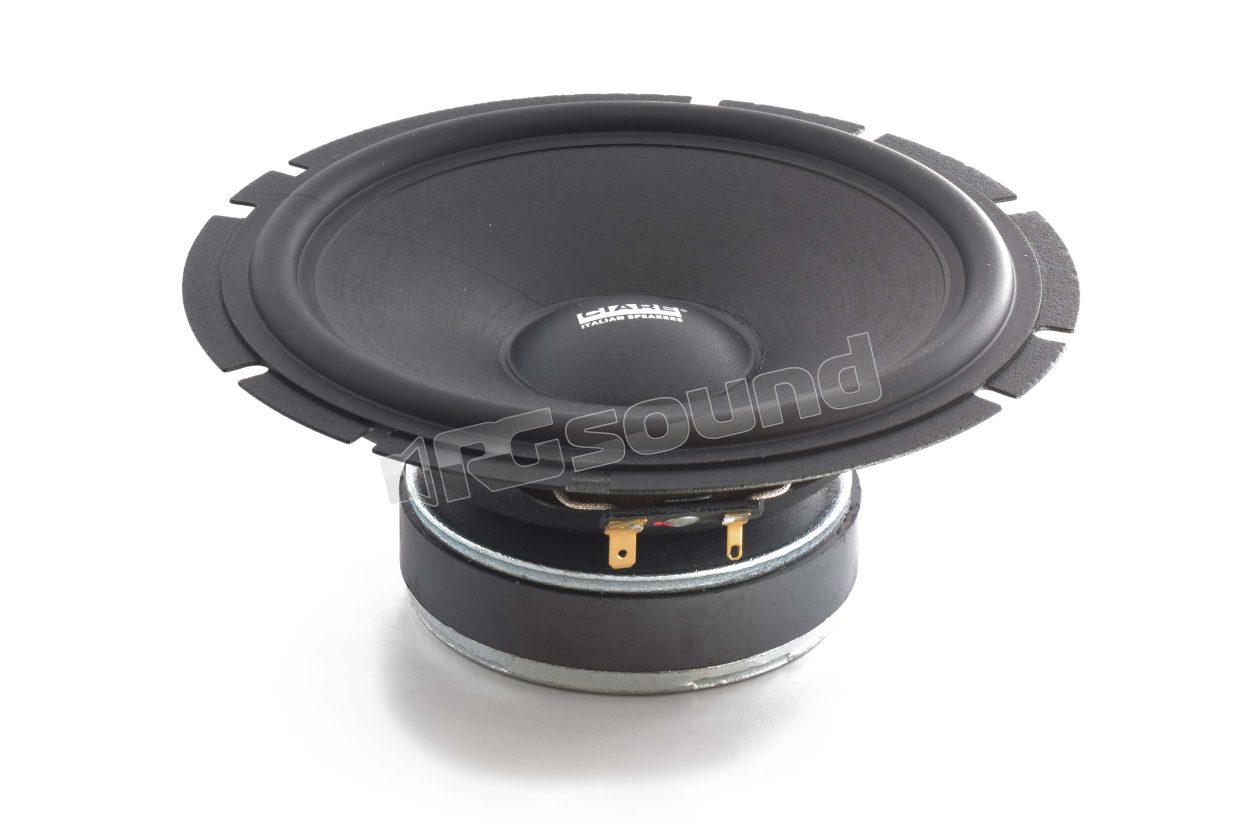

CW170 165mm woofer, 60W RMS / 150W max power

Ciare
Your price:
€ 45,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
150 Watt
RMS Power
60 Watt
Frequency Response
45 - 20.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
1 Kg
Installation Depth
64 mm
Woofer Material
Alluminio

Ciare CW170 woofer 165mm with damped cellulose membrane and rubber suspension, RMS power 60W, maximum 150W

Ciare CW170 is a woofer speaker with a nominal diameter of 165 mm (6.5″), and can be considered as the "enlarged" version of the Ciare CW170Z. Its construction structure involves the use of a steel sheet basket with a ferrite magnetic complex with a diameter of 86 mm. The depth under the flange of this Ciare woofer is 64 mm, and this makes its installation compatible with most car doors. Alternatively to the door, the CW170 can also be installed on a panel or in a closed enclosure. The CW170Z is fixed by means of 4 slots obtained directly on the front flange of the basket.

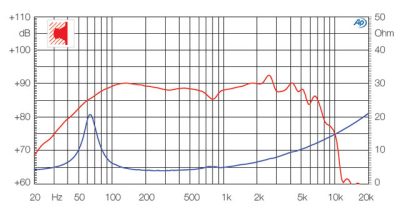

The use of rubber makes the moving group of this woofer longer lasting over time. In fact, rubber suspensions do not suffer from the problem of rapid wear of those in polyurethane foam. Moreover, the coil that completes the moving group has a nominal diameter of 25 mm and a nominal impedance of 4 Ω, and the electrical power that the coil can handle is 60 WattAES. Finally, the frequency range of use declared by Ciare for this woofer ranges from 45 Hz to 5 kHz, with an average nominal sensitivity of 90 dBSPL 1W/1m.

CW170 Features

  • Max power: 150W
  • Nominal power: 60W
  • Nominal impedance: 4 Ohm
  • Diameter: 165mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended load type: Closed enclosure
  • Recommended reflex volume: 16 dm3

CW170 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Voice gap height: 5 mm

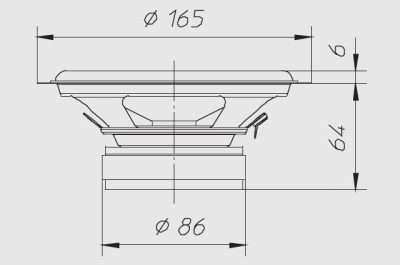

CW170 Dimensions

  • Outer diameter: 165 mm
  • Depth under flange: 64 mm
  • Flange thickness: 6 mm
  • Panel hole: 142 mm
  • Mounting hole diameter: 5 mm
  • Mounting hole pos. diameter: 156
  • Weight with single packaging: 1 Kg

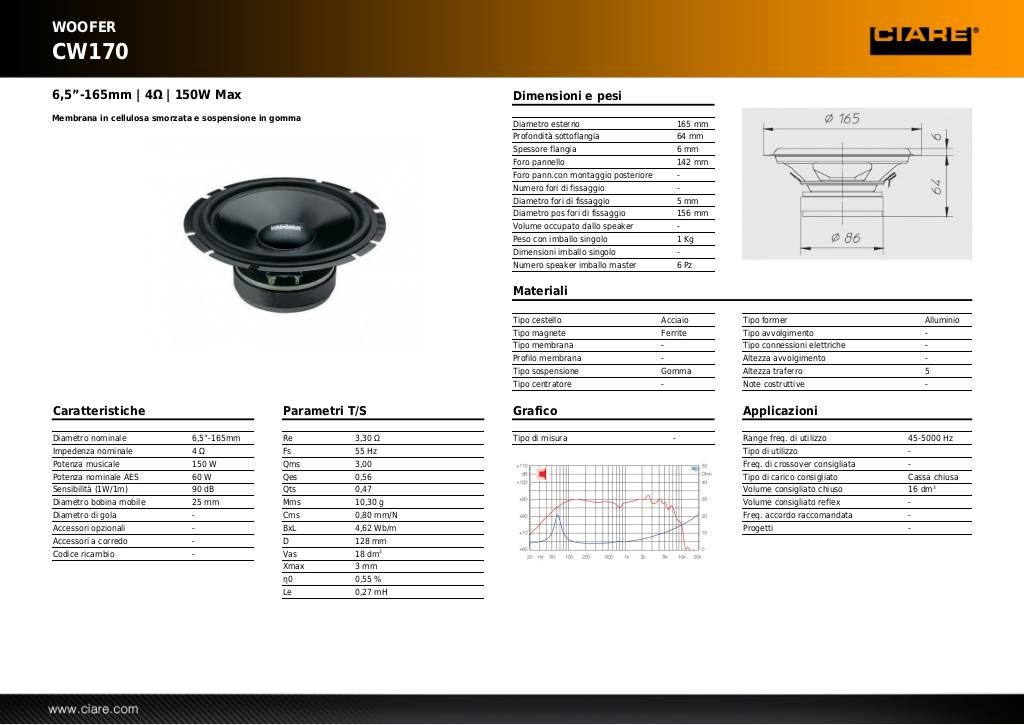

Scheda tecnica

20131029174800-cw170.pdf

1 Ciare woofer speaker CW170
€ 45,00 Price incl. VAT
