CW169 165mm woofer with 90W RMS power

Ciare
Your price:
€ 65,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
180 Watt
RMS Power
90 Watt
Frequency Response
40 - 5.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
1,78 Kg
Installation Depth
71,5 mm
Woofer Material
Alluminio

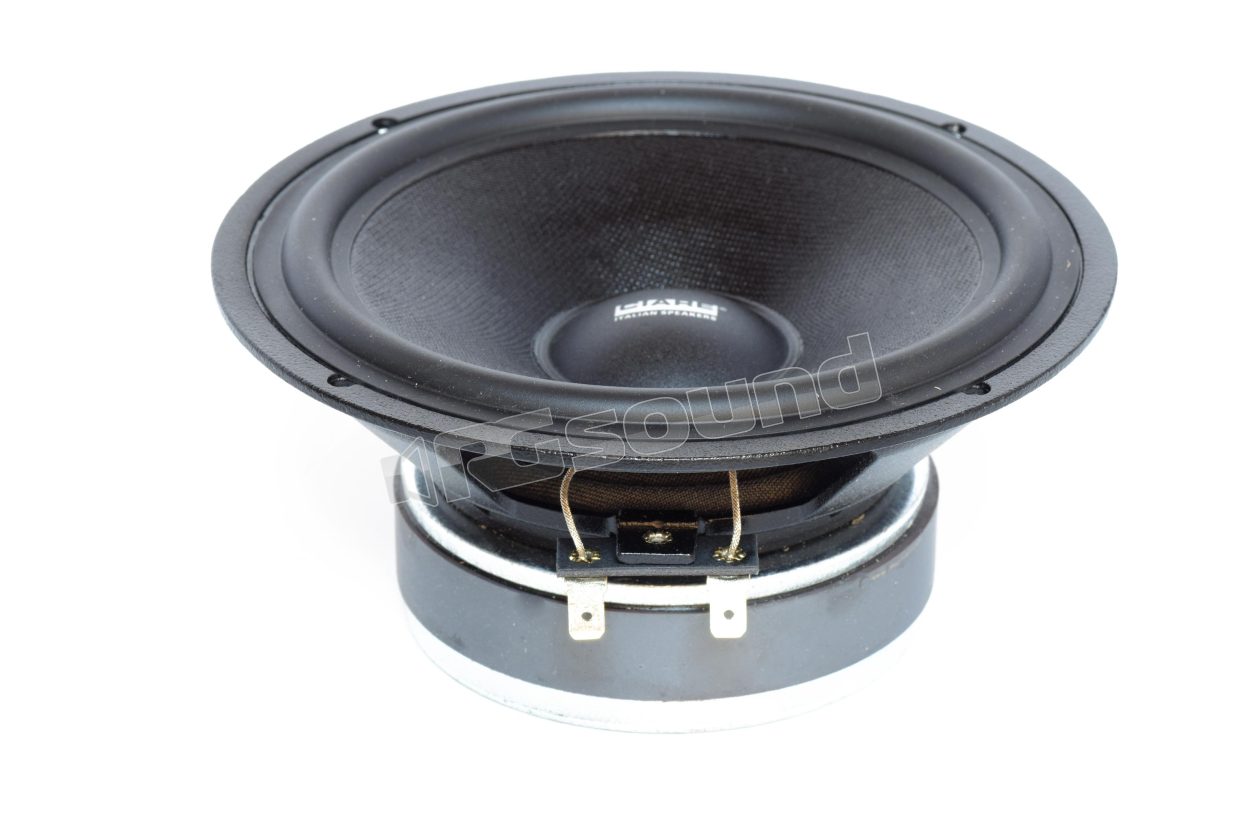

Ciare CW169 woofer 165mm with damped cellulose membrane and rubber surround, 4 Ohm impedance, 90 Watt RMS rated power

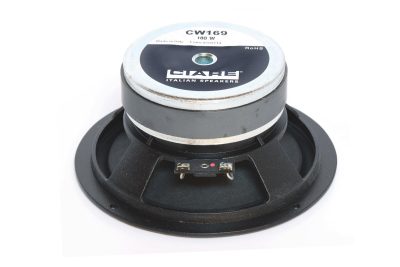

Ciare CW169 is a woofer speaker with a nominal diameter of 165 mm (6.5″), and stands out for its excellent linearity up to 5 kHz. Its construction features a steel basket with a powerful ferrite magnet assembly with a diameter of 102 mm. The depth under flange of this Ciare woofer is 71.5 mm, and for this reason you need to consider the useful space in the car door if you plan to install it in a car. As an alternative to the door, this woofer can also be installed in an enclosure of about 13 liters, bass reflex tuned approximately at 58 Hz. In fact, the CW169 is an excellent component for use in Home Audio and Hi-Fi systems as well. When you need components with a nominal impedance of 4 Ω to optimize amplifier output, this woofer could be an excellent choice.

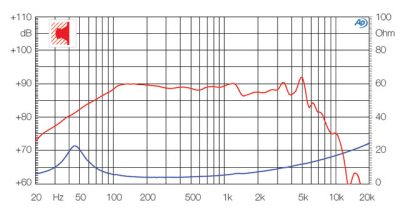

Furthermore, the moving part of the Ciare CW169 features a damped cellulose membrane coupled with rubber surrounds. The use of rubber makes the moving part of this woofer more durable over time. In fact, rubber surrounds do not suffer from the problem of rapid wear of polyurethane foam ones. Moreover, the voice coil that completes the moving part has a nominal diameter of 32 mm and a nominal impedance of 4 Ω. The electrical power that the voice coil can dissipate is 90 Watt AES. Finally, the frequency range of use declared by Ciare for this woofer goes from 40 Hz to 5 kHz, with an average nominal sensitivity of 90 dB SPL 1W/1m.

CW169 Features

  • Max power: 200W
  • Rated power: 90W
  • Nominal impedance: 4 Ohm
  • Diameter: 165mm
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 91 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 6 dm3
  • Recommended tuning frequency: 75 Hz

CW169 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Surround type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm

CW169 Dimensions

  • External diameter: 165.5 mm
  • Depth under flange: 73 mm
  • Flange thickness: 7.5 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 156
  • Weight with individual packaging: 2.40 Kg

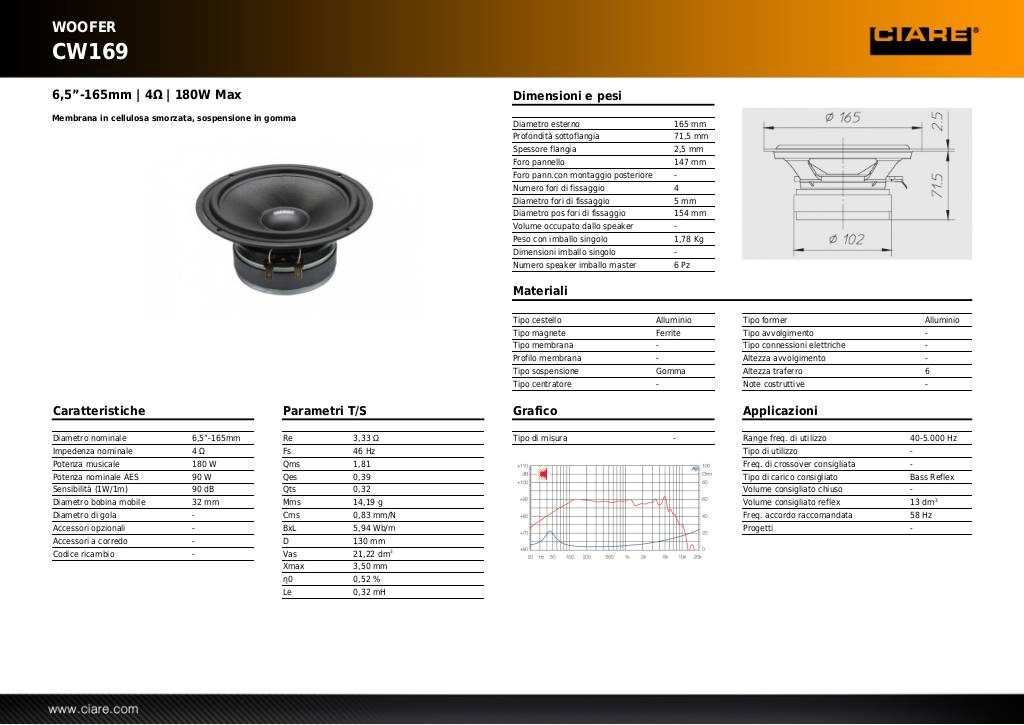

Scheda tecnica

20131029173732-cw169.pdf
