CW162

Ciare
Your price:
€ 64,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
200 Watt
RMS Power
90 Watt
Frequency Response
55 - 2000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Weight
2,4 Kg
Installation Depth
73 mm
Woofer Material
Alluminio

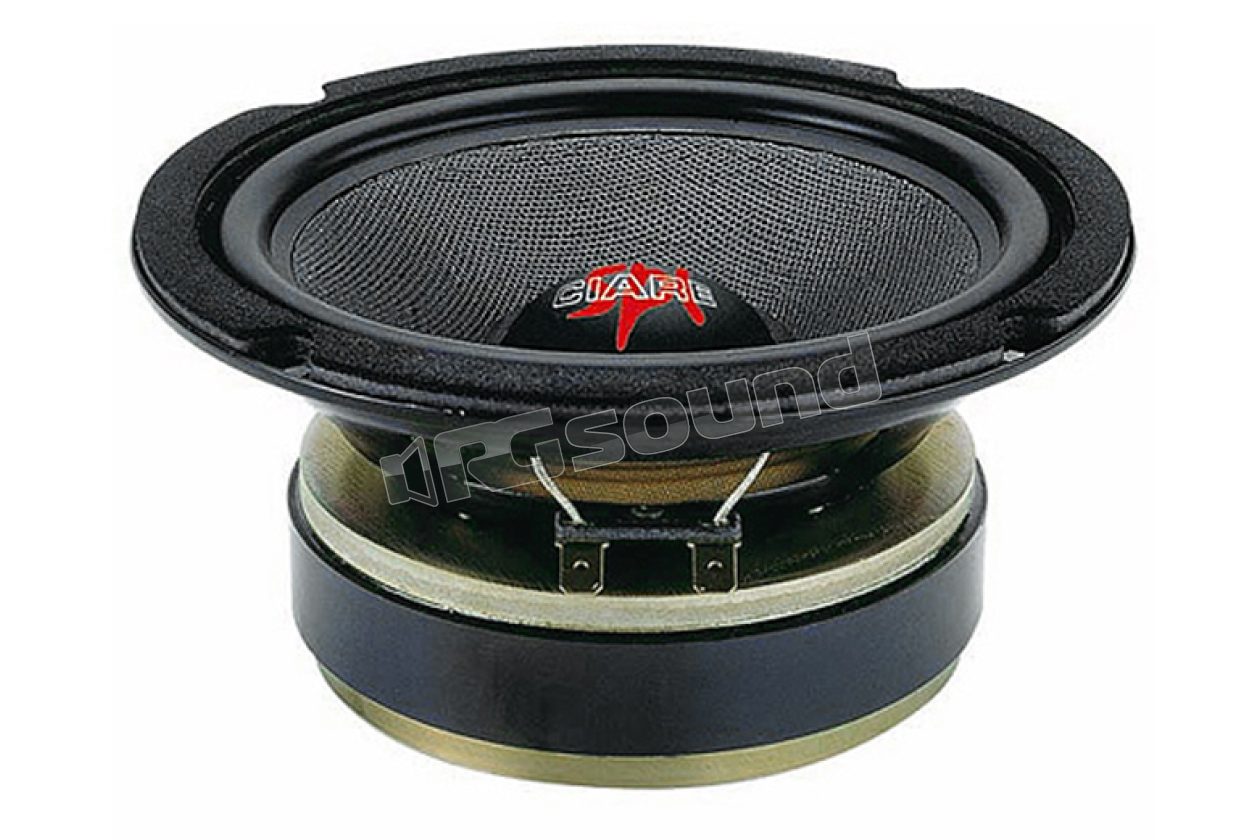

Ciare CW162 midwoofer with damped cellulose diaphragm and rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product manufacturing, allowing the company to achieve the highest quality standards in the realization of every component.

CW162 Features

  • Max power: 200W
  • Nominal power: 90W
  • Nominal impedance: 4Ω
  • Diameter: 165mm
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 91 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 6 dm3
  • Recommended tuning frequency: 75 Hz

CW162 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm

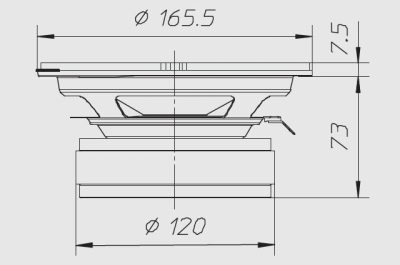

CW162 Dimensions

  • External diameter: 165.5 mm
  • Depth under flange: 73 mm
  • Flange thickness: 7.5 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 156
  • Weight with individual packaging: 2.40 Kg

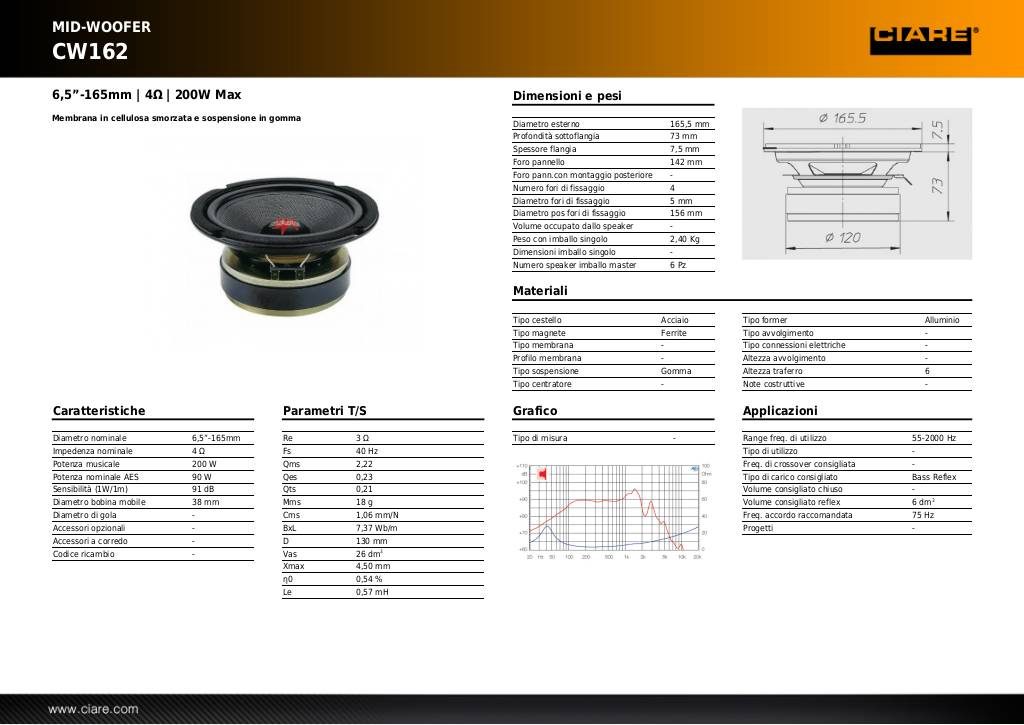

Scheda tecnica

20131029172837-cw162.pdf
