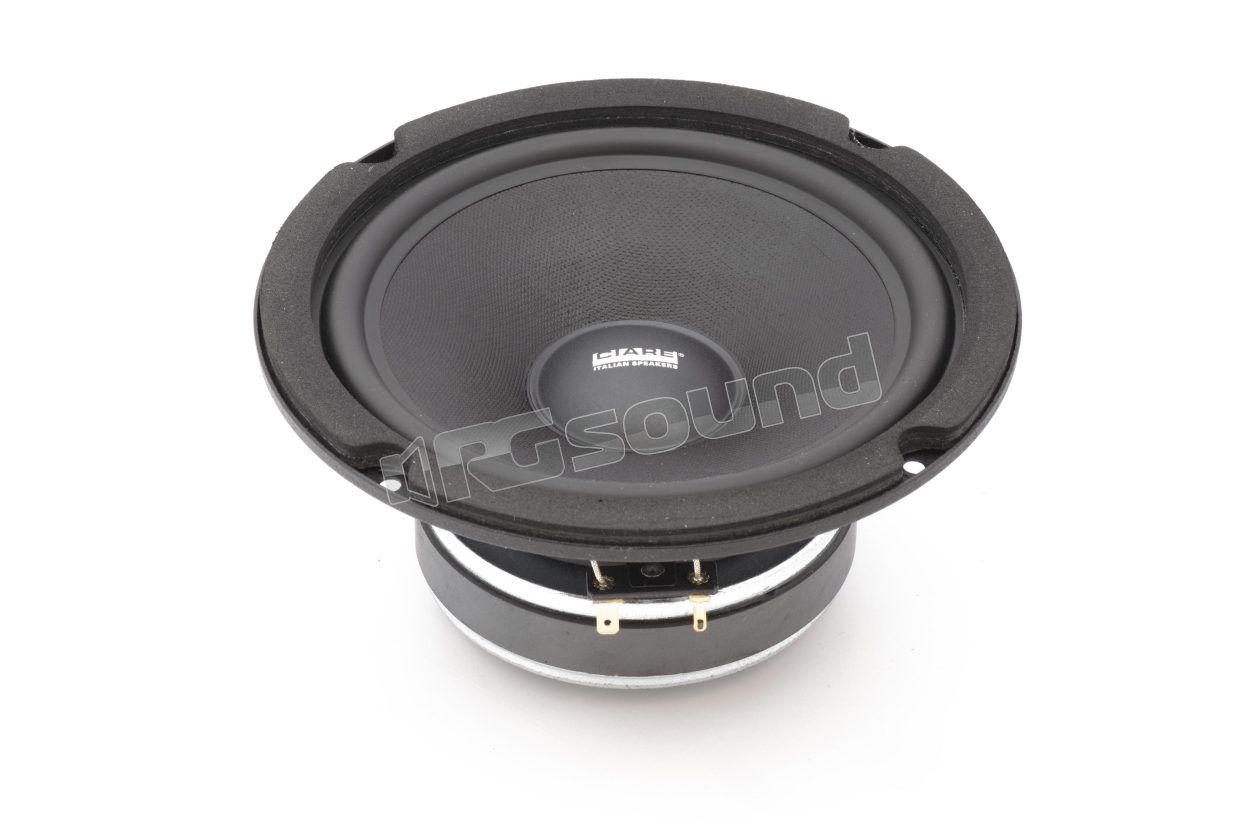

CW161N 165mm woofer with 80W RMS power

Ciare
Your price:
€ 50,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
180 Watt
RMS Power
80 Watt
Frequency Response
45 - 5.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
1,4 Kg
Installation Depth
73,5 mm
Woofer Material
Alluminio

Ciare CW161N woofer 165mm with damped cellulose membrane and rubber surround. Ciare is a company constantly keeping pace with technological innovations and under continuous stimulus from market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The structure of the Ciare CW161N features a steel basket with a powerful ferrite magnetic complex with a diameter of 102 mm. The depth under flange of this Ciare woofer is 73.5 mm, and for this reason you need to consider the useful space in the door if you plan to install it in a car.

As an alternative to the door, this woofer can also be installed in a box of approximately 13 liters, tuned bass reflex approximately at 62 Hz. In fact, the CW161N is an excellent component also for use in Home Audio and Hi-Fi systems, when you need components with nominal impedance of 4 Ω. For this reason, the CW161N can be considered as the 4 Ω version of the Ciare Hi-Fi woofer HW161N.

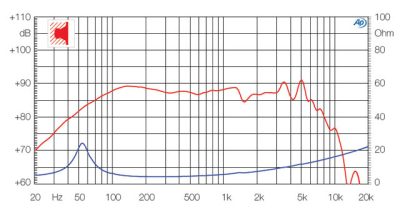

Furthermore, the moving assembly of the Ciare CW161N features a damped cellulose membrane coupled with rubber surrounds. The use of rubber makes the moving assembly of this woofer more long-lasting over time. In fact, rubber surrounds do not suffer from the problem of rapid wear of polyurethane foam ones. Moreover, the voice coil that completes the moving assembly has a nominal diameter of 32 mm and a nominal impedance of 4 Ω. The electrical power that the voice coil can handle is 80 WattAES. Finally, the frequency range of use declared by Ciare for this woofer goes from 45 Hz to 5 kHz, with a nominal average sensitivity of 90 dB SPL 1W/1m.

CW161N Features

  • Max power: 180W
  • Nominal power: 80W
  • Nominal impedance: 4 Ohm
  • Diameter: 165mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 13 dm3
  • Recommended tuning frequency: 62 Hz

CW161N Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Surround type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm

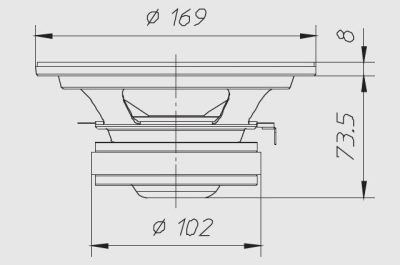

CW161N Dimensions

  • External diameter: 169 mm
  • Depth under flange: 73.5 mm
  • Flange thickness: 8 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 158
  • Weight with individual packaging: 1.40 Kg

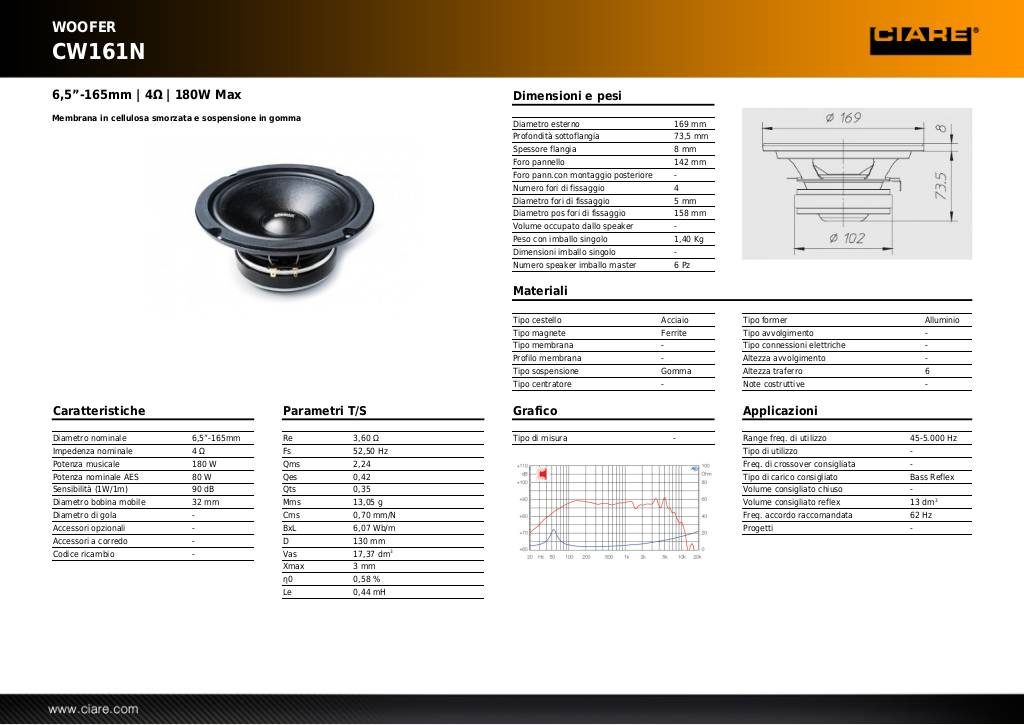

Scheda tecnica

20131029171955-cw161n.pdf
