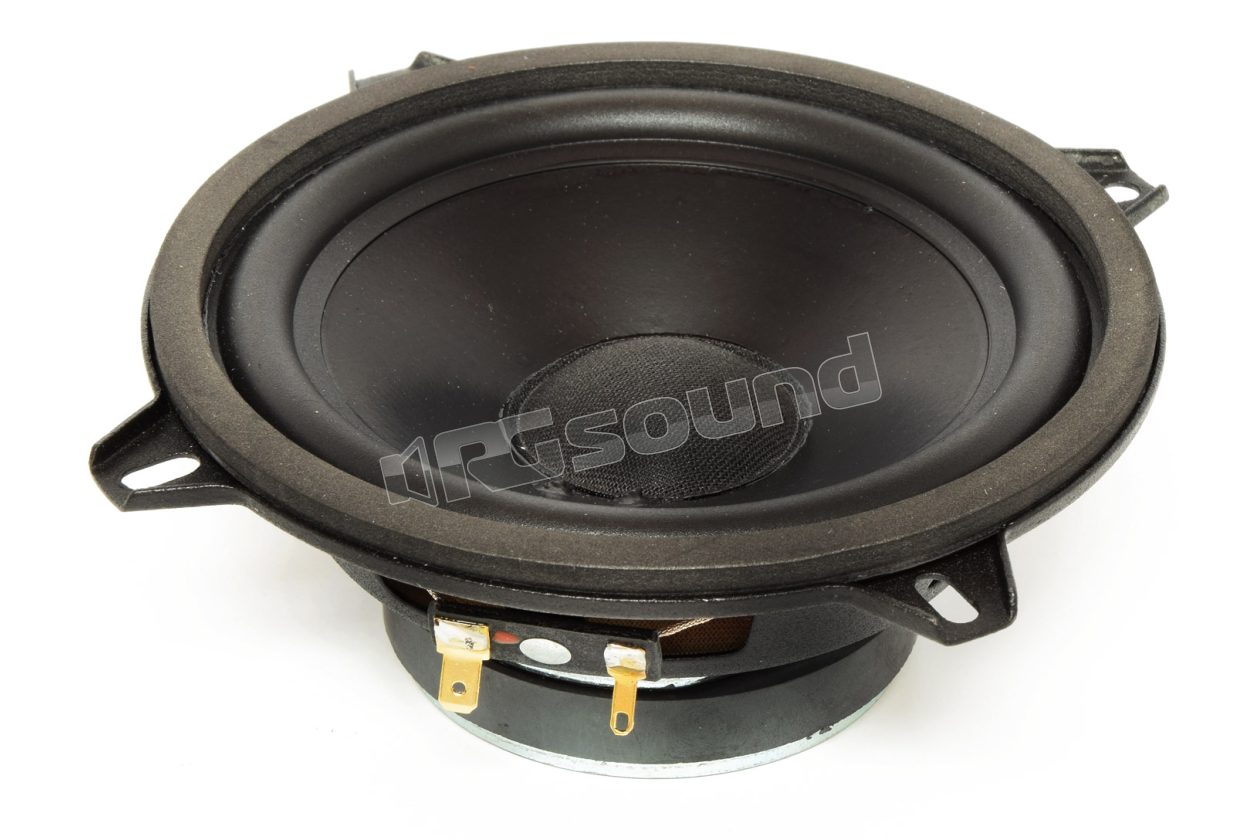

CW130Z 13 cm woofer

Ciare
Your price:
€ 21,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
100 Watt
RMS Power
50 Watt

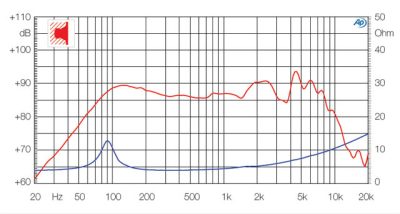

Frequency Response
55 - 8.000 Hertz
Sensitivity
88 dB
Impedance
4 Ohm
Weight
0,49 Kg
Installation Depth
47 mm
Woofer Material
cellulosa

Ciare CW130Z woofer 130mm with damped cellulose membrane, rubber surround. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulation of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allows the company to achieve the highest standards of quality in the realization of every component.

CW130Z Features

  • Max power: 100W
  • Nominal power: 50W
  • Nominal impedance: 4Ω
  • Diameter: 130mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 88 dB
  • Recommended load type: Sealed enclosure
  • Recommended sealed volume: 10 dm3

CW130Z Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Surround type: Rubber
  • Former type: Aluminum
  • Gap height: 4 mm

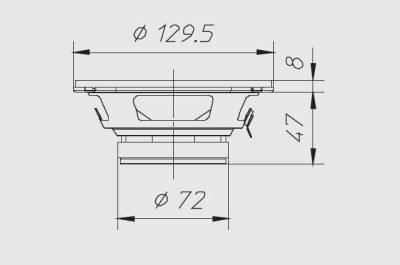

CW130Z Dimensions

  • Outer diameter: 129.5 mm
  • Depth below flange: 47 mm
  • Flange thickness: 8 mm
  • Panel hole: 112 mm
  • Number of fixing holes: 4
  • Diameter of fixing holes: 5 mm
  • Position diameter of fixing holes: 140
  • Weight with single package: 0.49 Kg

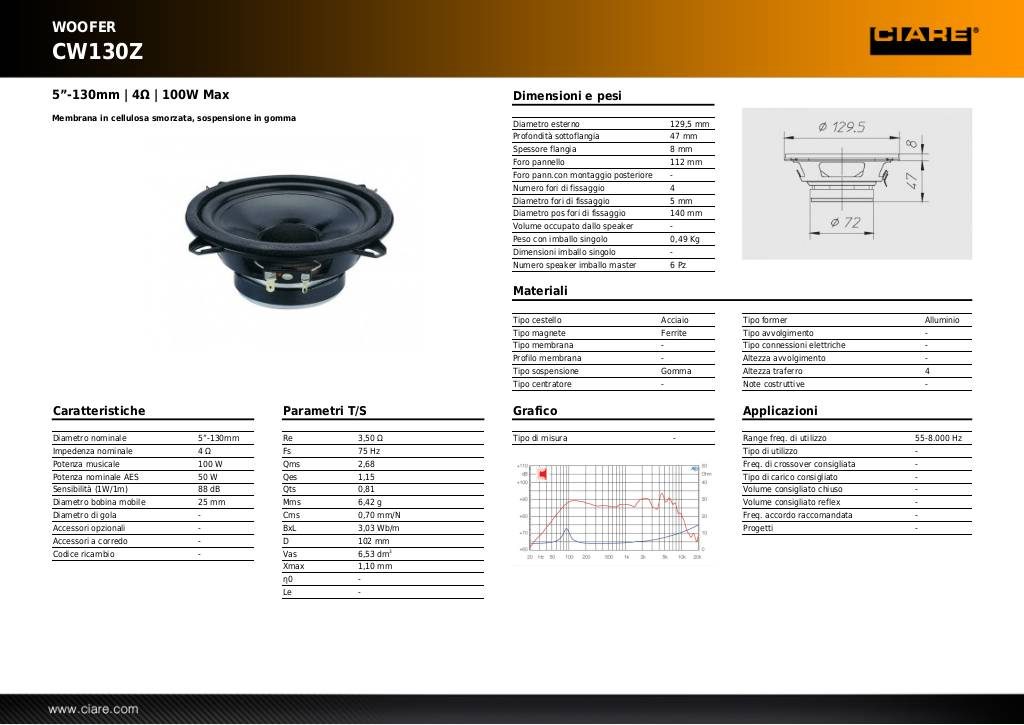

Scheda tecnica

20131029170139-cw130z.pdf
