CW100Z

Ciare
Your price:
€ 20,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
100 mm
MAX Power
100 Watt
RMS Power
40 Watt
Frequency Response
80 - 8.000 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Weight
0,44 Kg
Installation Depth
42 mm
Woofer Material
Alluminio

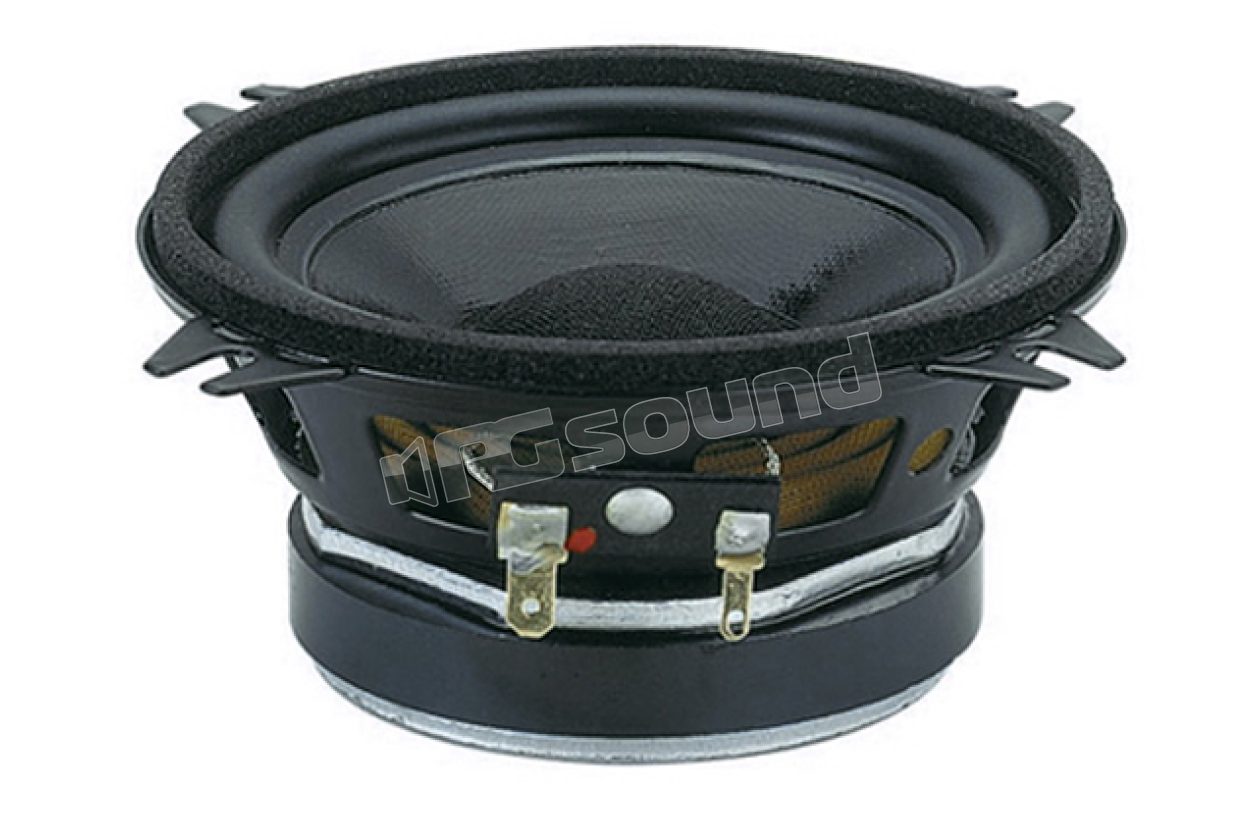

Ciare CW100Z Woofer 100mm with damped cellulose membrane

Ciare CW100Z 100mm woofer with damped cellulose membrane, rubber suspension, removable mounting brackets.Ciare is a company constantly keeping pace with technological innovations and under continuous pressure from market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence. The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

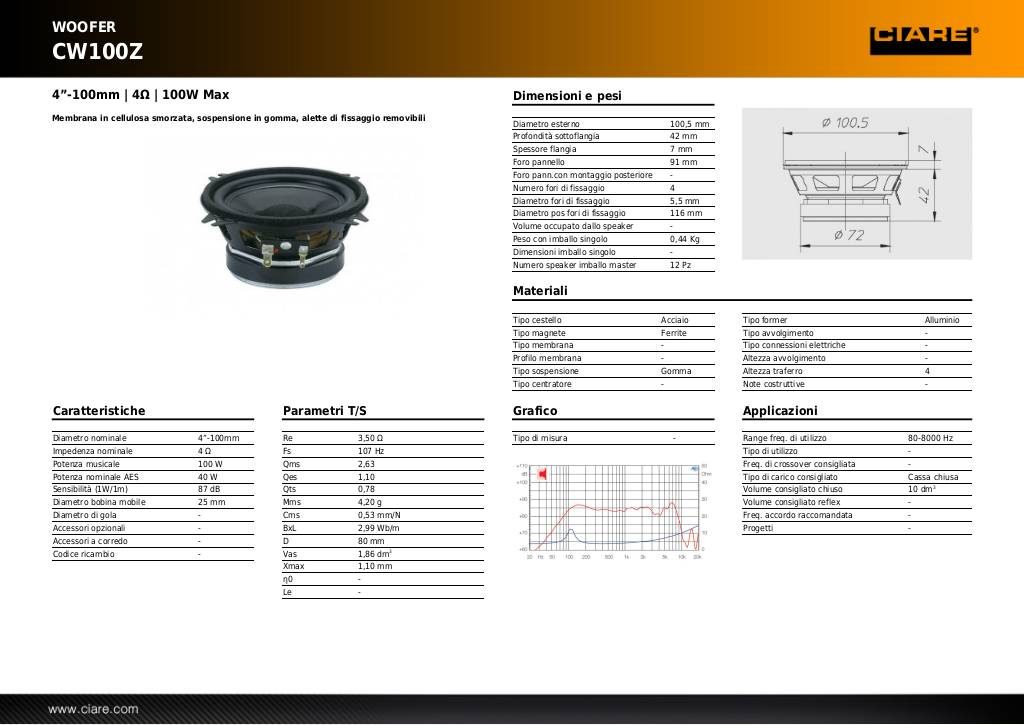

    Scheda tecnica

    20131029165129-cw100z.pdf

    1 Ciare woofer speaker CW100Z

    Ciare CW100Z Technical Specifications

    • Max power: 100W
    • Nominal power: 40W
    • Nominal impedance: 4Ohm
    • Diameter: 100mm
    • Voice coil diameter: 25mm
    • Sensitivity 1W/1m: 87 dB
    • Recommended load type: closed enclosure
    • Recommended closed volume: 10 dm3

    CW100Z Materials

    • Basket type: Steel
    • Magnet type: Ferrite
    • Suspension type: Rubber
    • Former type: Aluminum
    • Air gap height: 4 mm

    CW100Z Dimensions

    • External diameter: 100.5 mm
    • Depth under flange: 42 mm
    • Flange thickness: 7 mm
    • Panel hole: 91 mm
    • Number of mounting holes: 4
    • Mounting hole diameter: 5.5 mm
    • Mounting hole position diameter: 116
    • Weight with single packaging: 0.44 Kg
    € 20,00 Price incl. VAT
