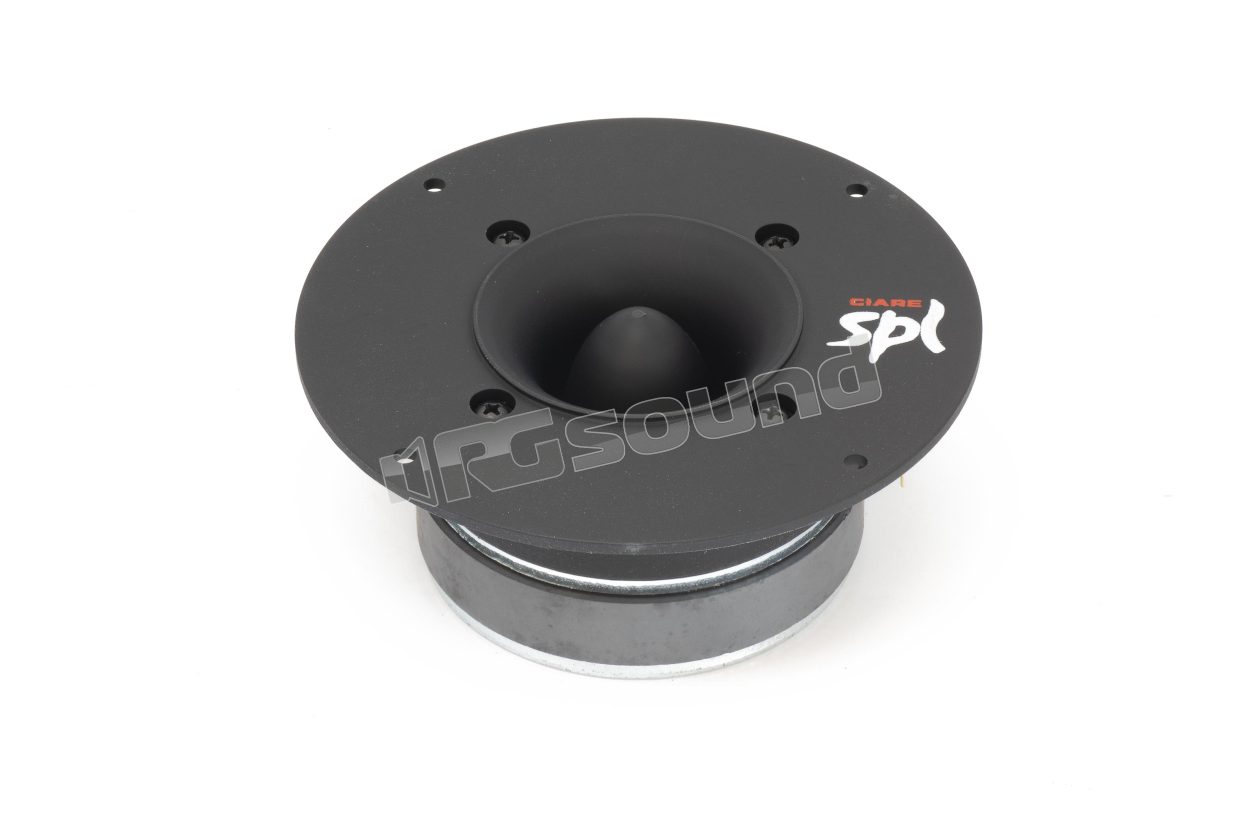

CT382 38mm horn tweeter with 6 Ohm impedance

Ciare
Your price:
€ 59,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Super Tweeter
Dome Size
38 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
4.000 - 20.000 Hertz
Sensitivity
105 dB
Impedance
6 Ohm
Outer Diameter
150 mm
Installation Depth
60 mm
Tweeter Material
Alluminio

Ciare CT382 tweeter horn 38mm with aluminum diaphragm, with ferrofluid. Appealing total black look. Ciare is a company constantly keeping up with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to autonomously manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CT382 Features

  • Musical power: 400 W
  • Nominal AES power: 200 W
  • Nominal diameter: 1.5"-38mm
  • Nominal impedance: 6 Ohm
  • Voice coil: 38mm
  • Sensitivity 1W/1m: 105 dB
  • Frequency range of use: 4,000-20,000 Hz

CT382 Materials

  • Magnet type: Ferrite
  • Diaphragm type: Aluminum
  • Former type: Kapton
  • Connection type: Faston
  • Diaphragm profile: Flat
  • Air gap height: 3 mm

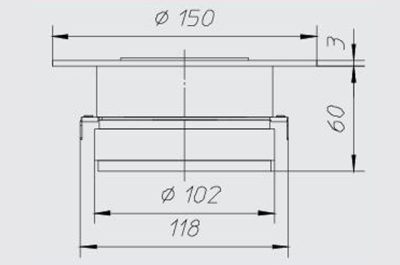

CT382 Dimensions

  • Outer diameter: 150 mm
  • Depth under flange: 59.6 mm
  • Flange thickness: 6 mm
  • Panel hole: 105 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 135
  • Weight with single packaging: 2.00 Kg

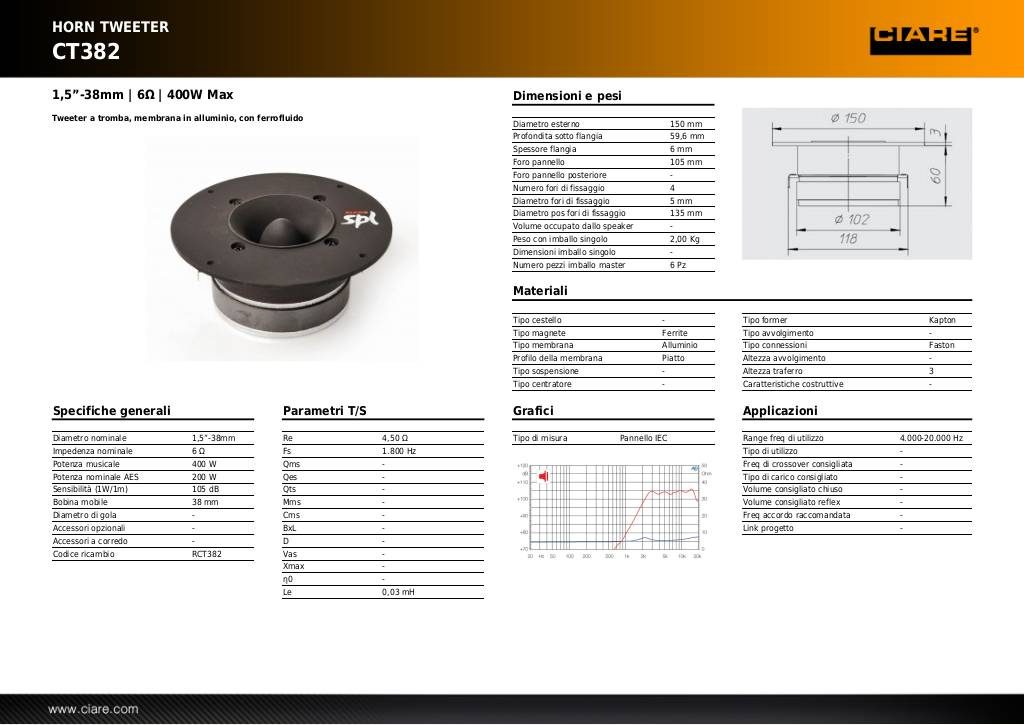

Scheda tecnica

20140228162342-ct382.pdf
