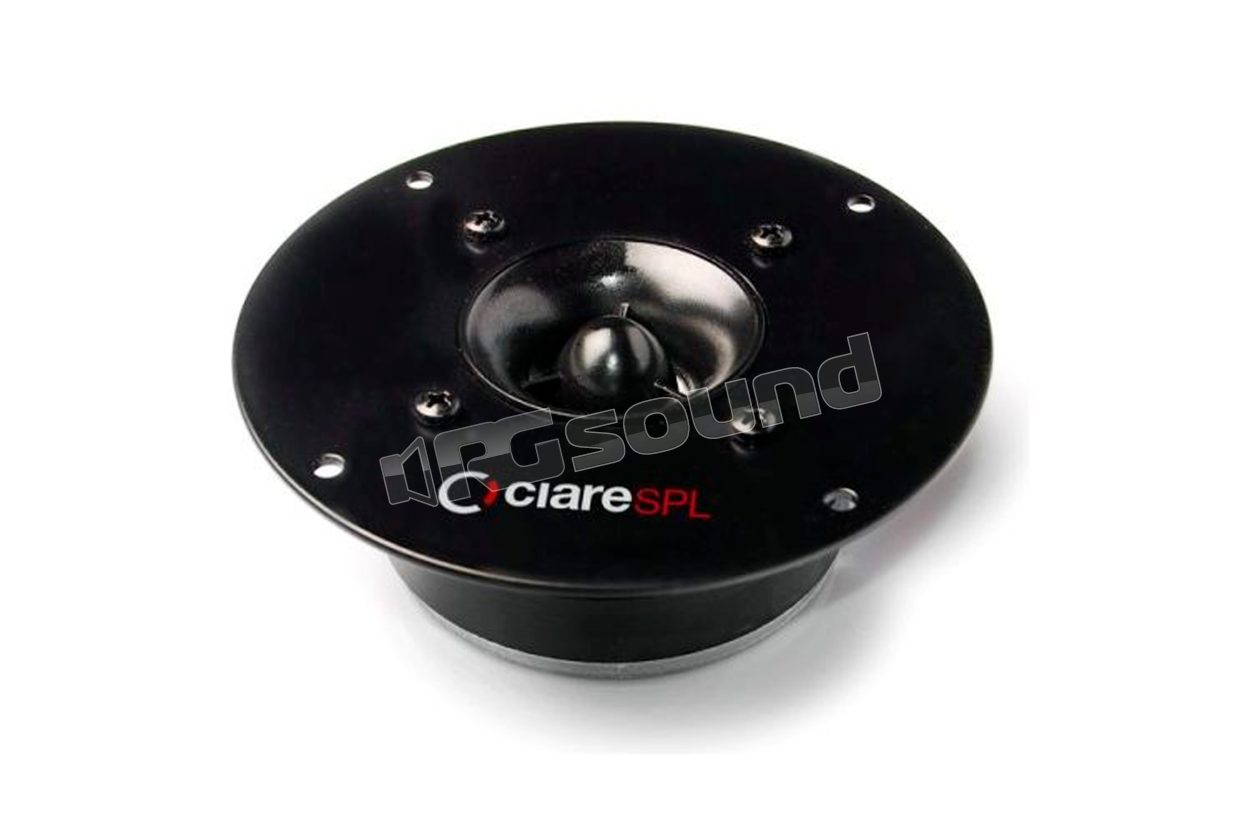

CT267 compression tweeter

Ciare
Your price:
€ 50,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Super Tweeter
Dome Size
25 mm
MAX Power
300 Watt
RMS Power
150 Watt

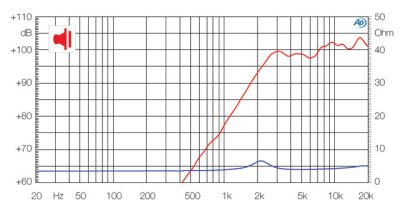

Frequency Response
3.000 - 20.000 Hertz
Sensitivity
105 dB
Impedance
4 Ohm
Outer Diameter
130 mm
Installation Depth
42,5 mm
Tweeter Material
Kapton

Ciare CT267 25mm compression tweeter, aluminum diaphragm, with ferrofluuid. Striking all-black look. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence. The experience gained over years of activity and the ability to independently manage all phases of product development allow the company to achieve the highest quality standards in the creation of each component.

CT267 Features

  • Max Power: 300W
  • Nominal Power: 150W
  • Nominal Impedance: 4Ω
  • Dome Diameter: 25mm
  • Voice Coil Diameter: 25mm
  • Sensitivity 1W/1m: 105 dB
  • Recommended Crossover Frequency: 5.000 Hz

CT267 Materials

  • Magnet Type: Ferrite
  • Diaphragm Type: Aluminum
  • Former Type: Kapton
  • Electrical Connection Type: Faston
  • Diaphragm Profile: Flat
  • Pole Piece Height: 4 mm

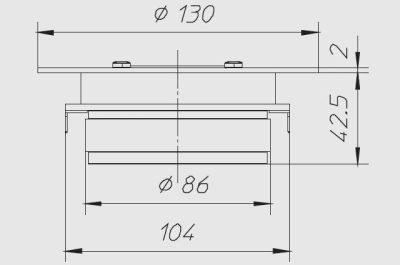

CT267 Dimensions

  • Outer Diameter: 130 mm
  • Depth Below Flange: 42.5 mm
  • Flange Thickness: 2 mm
  • Panel Hole: 95 mm
  • Number of Mounting Holes: 4
  • Mounting Hole Diameter: 5 mm
  • Mounting Hole Position Diameter: 116
  • Weight with Single Packaging: 1.15 Kg

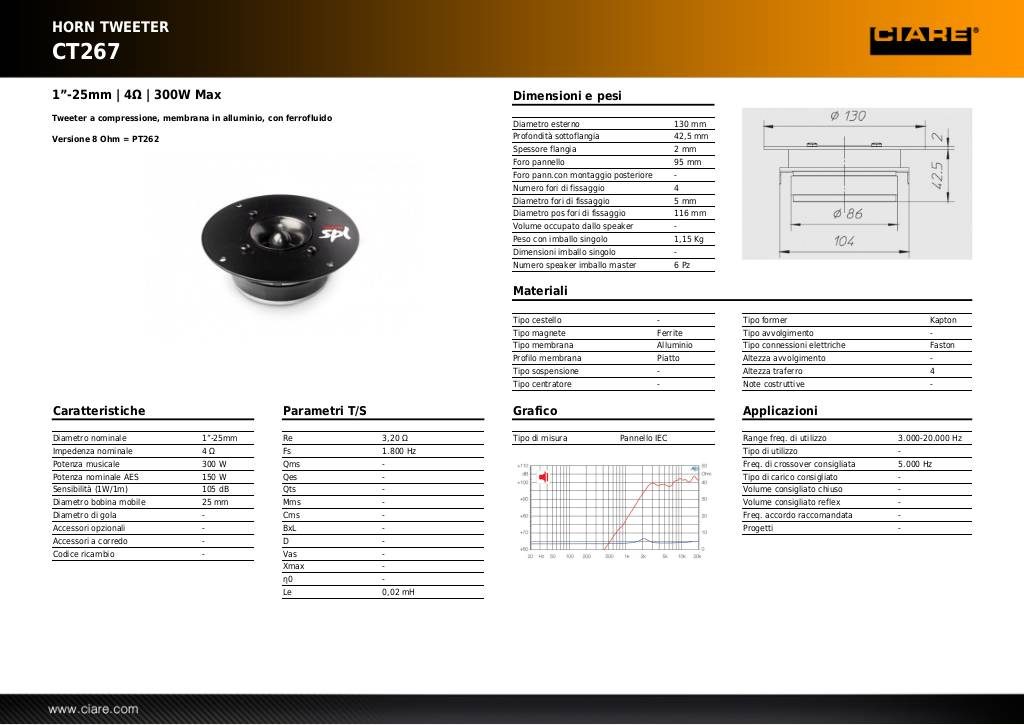

Scheda tecnica

20131029154340-ct267.pdf
