CT263

Ciare
Your price:
€ 39,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
25 mm
MAX Power
250 Watt
RMS Power
100 Watt
Frequency Response
2.500 - 20.000 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Outer Diameter
100 mm
Installation Depth
26 mm
Tweeter Material
Alluminio e cupola in seta

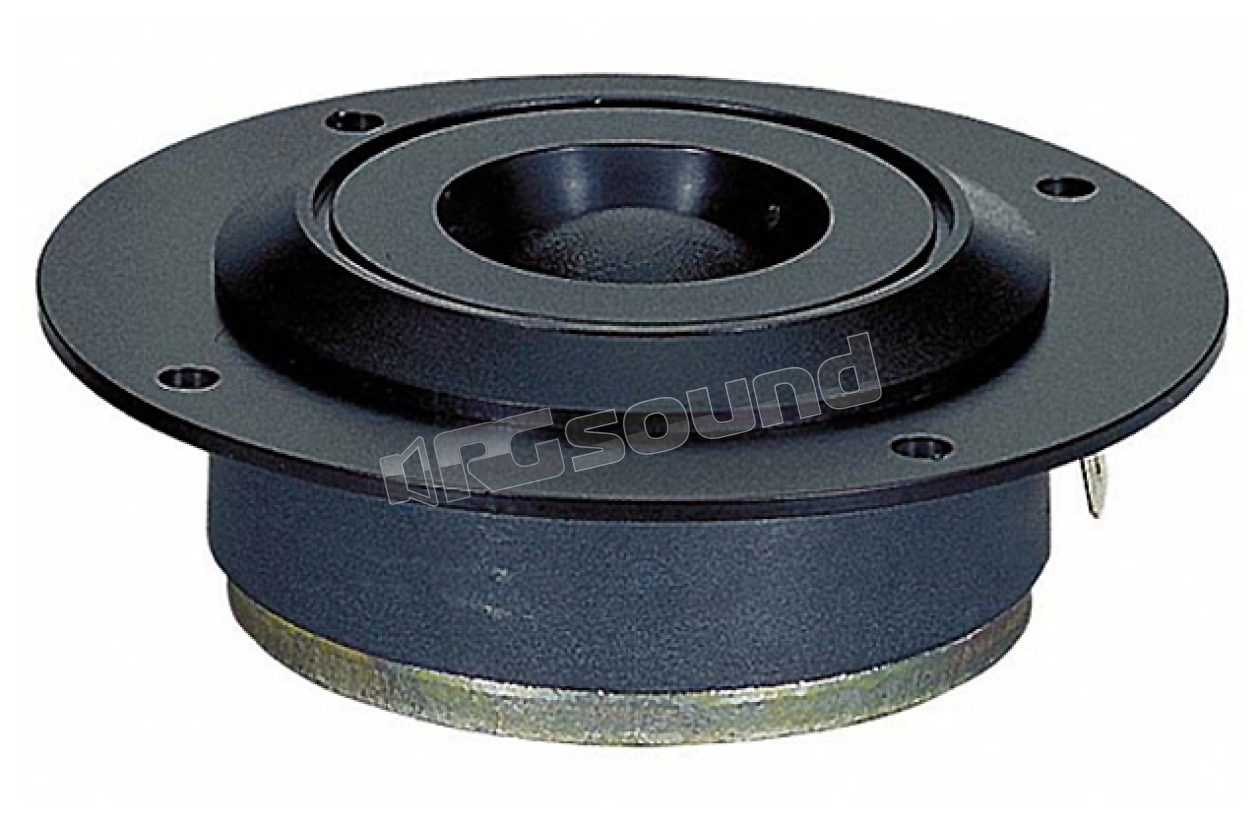

Ciare CT263 soft dome tweeter in polyamide. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization allow the company to achieve the highest quality standards in the realization of every component.

CT263 Features

  • Max power: 250W
  • Nominal power: 100W
  • Nominal impedance: 4Ω
  • Dome diameter: 25 mm
  • Voice coil diameter: 25 mm
  • Sensitivity 1W/1m: 93 dB
  • Recommended crossover frequency: 3,000 Hz

CT263 Materials

  • Magnet type: Ferrite
  • Diaphragm type: Silk
  • Former type: Aluminum
  • Electrical connections type: Faston
  • Diaphragm profile: Dome
  • Air gap height: 3 mm

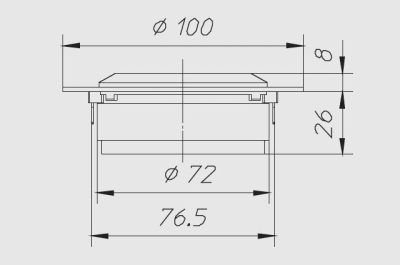

CT263 Dimensions

  • Outer diameter: 100 mm
  • Sub-flange depth: 26 mm
  • Flange thickness: 8 mm
  • Panel hole: 75 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 88
  • Weight with single packaging: 0.64 Kg

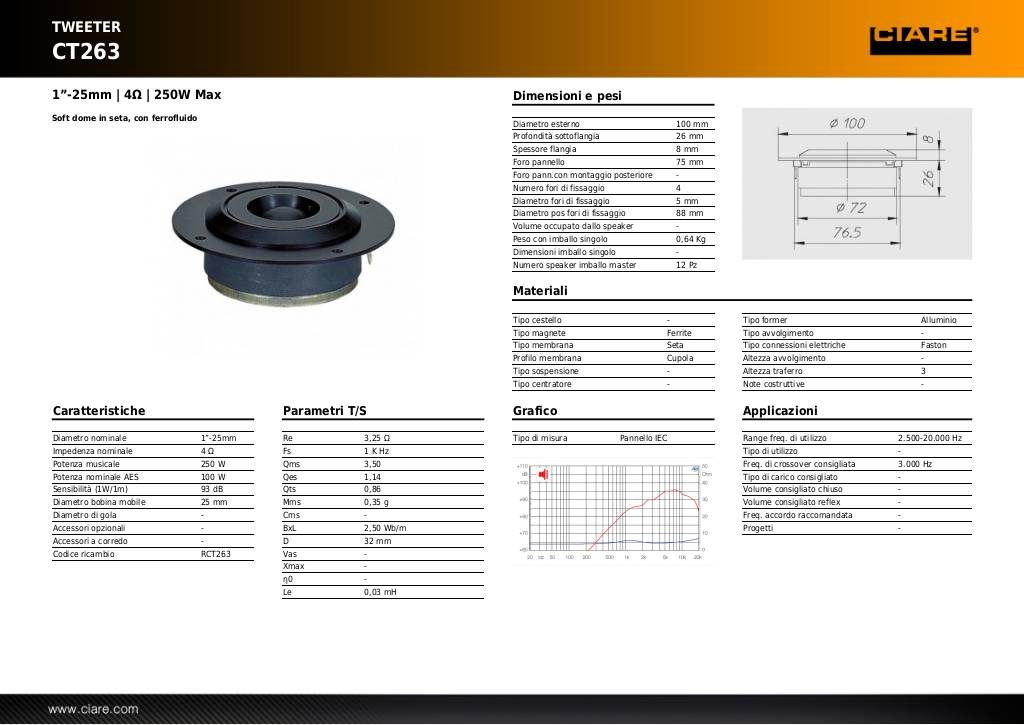

Scheda tecnica

20131029152418-ct263.pdf

1 Ciare tweeter speaker CT263
€ 39,00 Price incl. VAT
