CT200

Ciare
Your price:
€ 32,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
23 mm
MAX Power
100 Watt
RMS Power
60 Watt

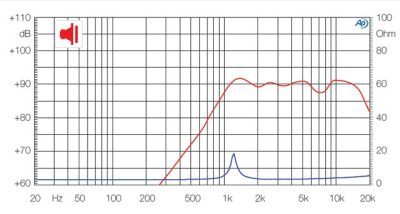

Frequency Response
2.500 - 20.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Outer Diameter
90 x 78 mm
Installation Depth
21 mm
Tweeter Material
Kapton

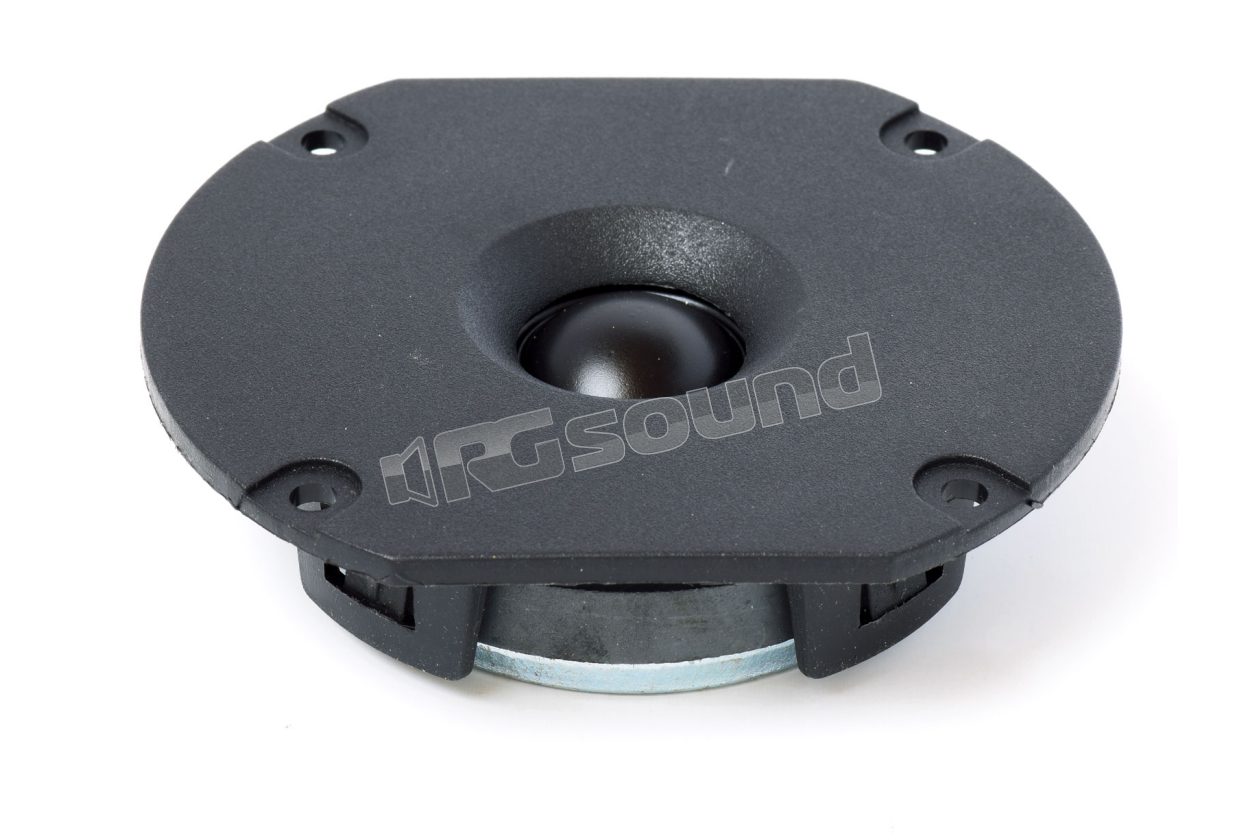

Ciare CT200 soft dome tweeter in polyamide. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute faithfulness to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization allow the company to achieve the highest quality standards in the creation of every component.

CT200 Features

  • Max power: 100W
  • Nominal power: 60W
  • Nominal impedance: 4Ω
  • Voice coil diameter: 20mm
  • Sensitivity 1W/1m: 90 dB

CT200 Materials

  • Former type: Kapton
  • Gap height: 2 mm

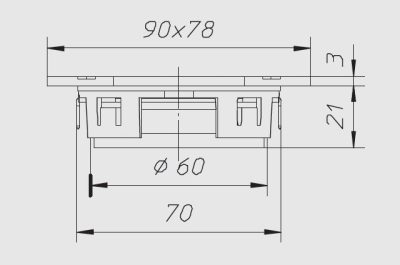

CT200 Dimensions

  • Outer diameter: 90 x 78 mm
  • Sub-flange depth: 21 mm
  • Flange thickness: 3 mm
  • Panel hole: 70 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 4 mm
  • Mounting hole position diameter: 81
  • Weight with single package: 0.28 Kg

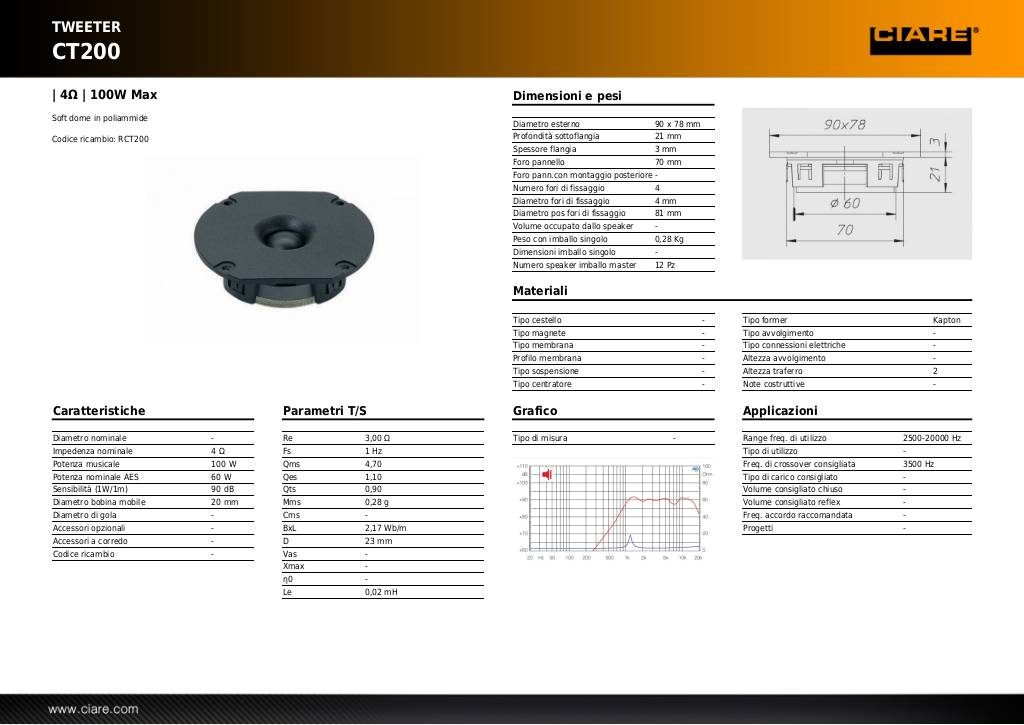

Scheda tecnica

20131029150932-ct200.pdf

1 Ciare CT200 tweeter speaker
€ 32,00 Price incl. VAT
