CT198N

Ciare
Your price:
€ 69,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
20 mm
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
5.000 - 20.000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Outer Diameter
37 mm
Installation Depth
24 mm
Tweeter Material
Neodimio e Seta

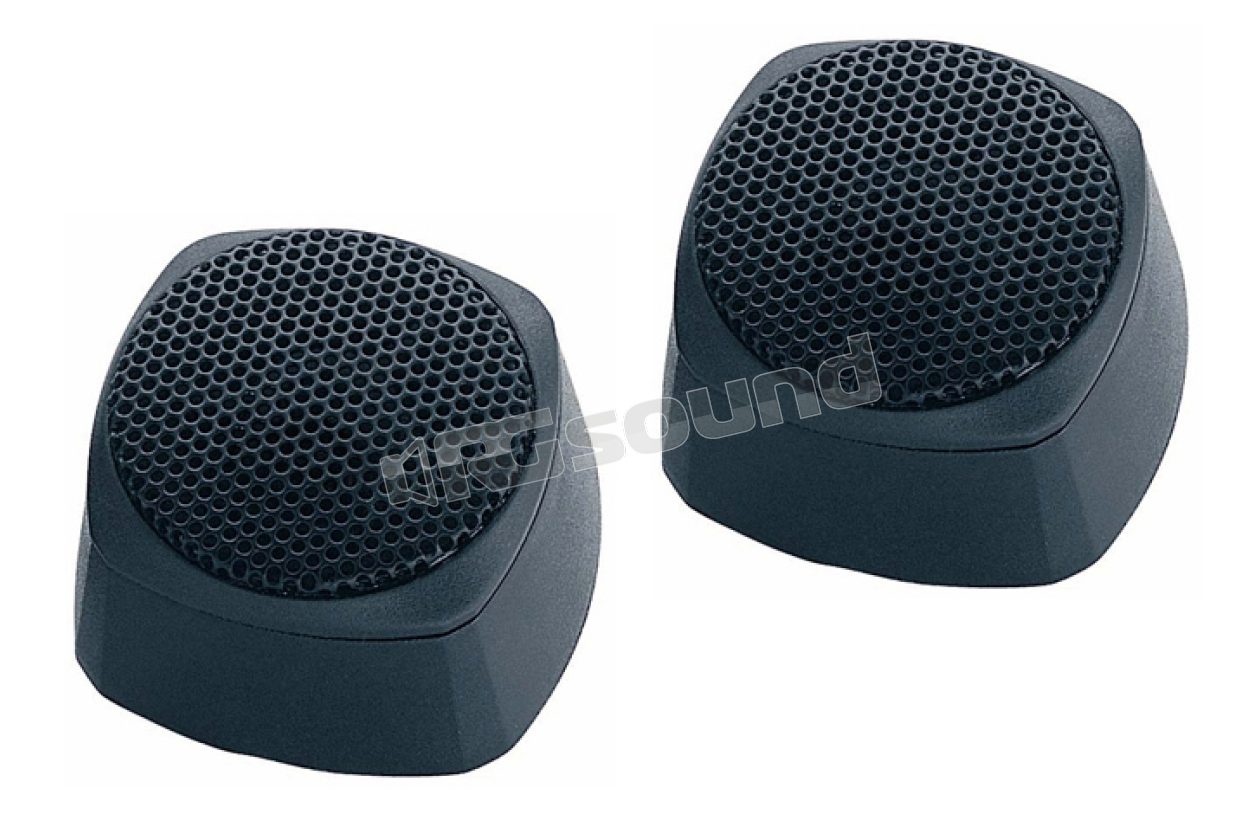

Ciare CT198N Tweeter soft dome in silk, ferrofluids, neodymium magnet, with bracket. Ciare is a company that constantly keeps pace with technological innovations and is under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage all phases of product realization completely autonomously, allowing the company to achieve the highest quality standards in the realization of every component.

CT198N Features

  • Music power: 100 W
  • Rated power AES: 50 W
  • Nominal diameter: 0.75"-20 mm
  • Nominal impedance: 4 Ω
  • Voice coil: 20 mm
  • Sensitivity 1W/1m: 89 dB
  • Type of use: CAR Hi-Fi
  • Recommended crossover freq: 6,000 Hz
  • Freq range of use: 5,000-20,000 Hz

CT198N Materials

  • Magnet type: Neodymium
  • Membrane type: Silk
  • Former type: Kapton
  • Membrane profile: Dome
  • Air gap height: 1.5 mm

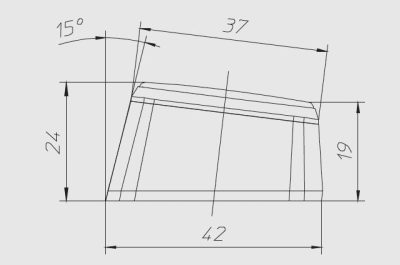

CT198N Dimensions

  • External diameter: 37 mm
  • Depth under flange: 24 mm
  • Panel hole: 33 mm
  • Weight with individual packaging: 0.06 kg

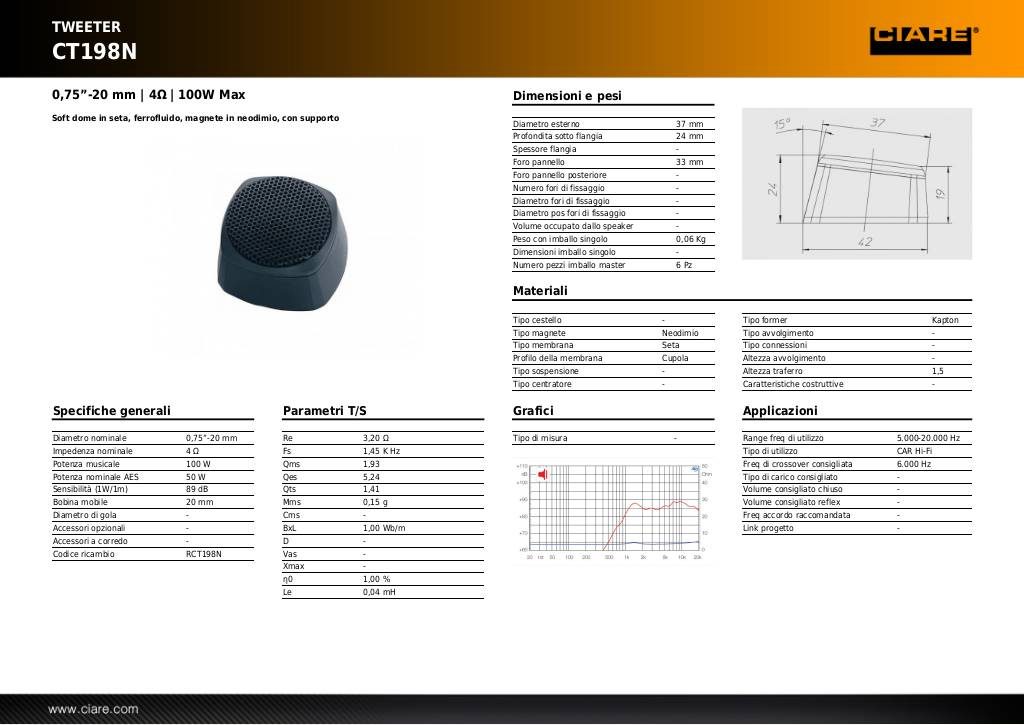

Scheda tecnica

20140228165023-ct198n.pdf
