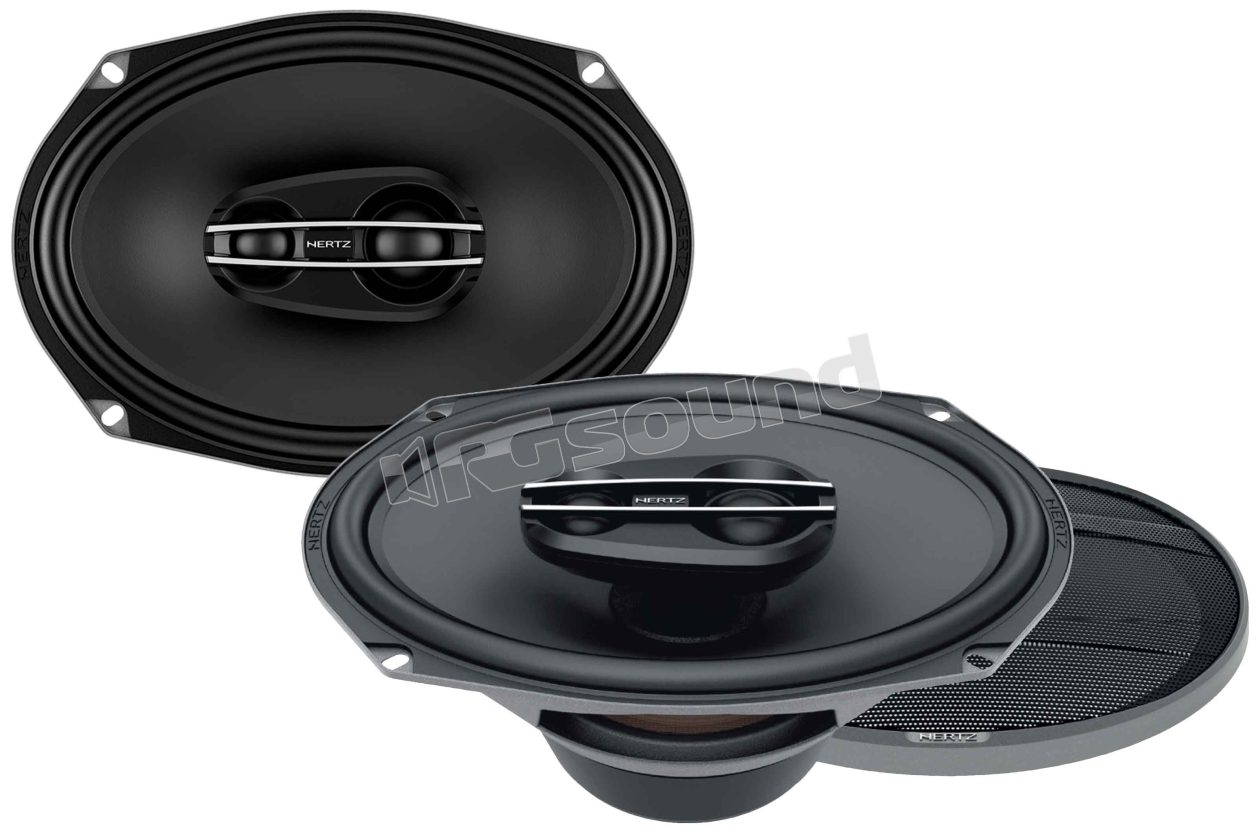

CPX 690 6x9'' three-way coaxial speakers with grilles

Hertz
Your price:
€ 209,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
35 - 24.000 Hertz
MAX Power
360 Watt
RMS Power
120 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
Polipropilene
Tweeter Material
Neodimio

Hertz CPX 690 Pair of 6x9" three-way coaxial speakers Cento Pro Series

These coaxial speakers are the best solution for enthusiasts who love highly dynamic listening with low frequencies. Both the tweeter and supertweeter are equipped with neodymium magnets and tetraflex domes, respectively 32 mm and 24 mm. The elegant faceplate is designed to maximize off-axis emissions and thus optimize horizontal installation.

As for the Tweeter and Supertweeter of the CPX 690, they boast the technology of the radial ventilation system for exceptional cooling and acoustic performance. The robust basket with radial ventilation keeps operating temperatures low. The grille is made with a high-strength ABS plastic support and metal mesh to guarantee a high level of protection with a Hi-tech design.

CPX 69 Features

  • Pressed paper cone with optimized FEM geometry that combines rigidity and lightness for a colorless sound.
  • Wide rubber surround designed for long excursion and excellent sound damping.
  • High-density ferrite magnet in combination with low-carbon pole plates for reduced distortion at high power levels.
  • Basket with combined metal finish with an anti-vibration rubber magnet for overall damping of spurious vibrations.
  • Neodymium tweeter with soft tetraflex fiber dome with 28 mm voice coil, for distortion-free reproduction of mid-high frequencies.
  • Neodymium supertweeter in tetraflex fiber with 20 mm voice coil, to compensate for the natural drop in high frequency response in horizontal installations.
  • Optimized faceplate geometry with FEM technology (Finite Element Modeling) for linear frequency response in off-axis installations.
  • Elegant grille with high-strength ABS plastic frame with combined metal finish with a protective metal mesh.

Scheda tecnica

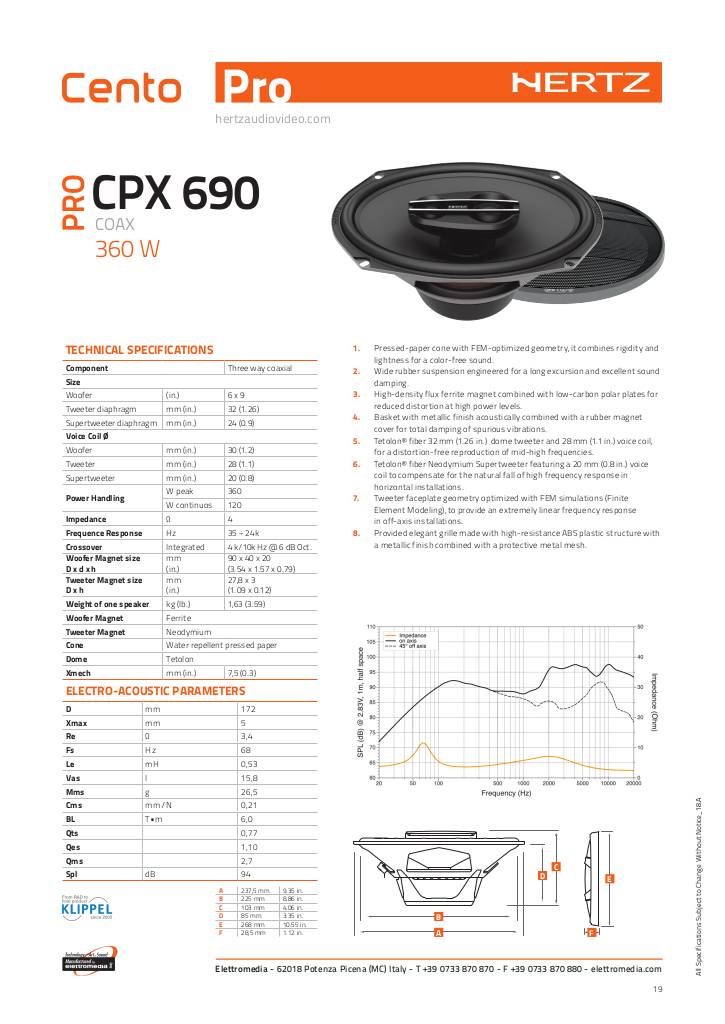

n-20190924124924-hertzaudio-cpx690-tech-sheet-18a.pdf

Hertz CPX 690 Technical Specifications

  • Maximum power handling W 360
  • Nominal power handling W 120
  • Impedance Ω 4
  • Frequency response Hz 35 ÷ 24k
  • Sensitivity dB SPL 94
  • Woofer size mm (inches) (6 x 9)
  • Tweeter size mm (inches) 32 (1.26)
  • Supertweeter size mm (inches) 24 (0.9)
  • Woofer voice coil Ø mm (inches) 30 (1.2)
  • Tweeter voice coil Ø mm (inches) 28 (1.1)
  • Woofer magnet Ferrite
  • Tweeter magnet Neodymium
  • Woofer cone Water-repellent pressed paper
  • Tweeter dome Tetraflex
€ 209,00 Price incl. VAT
