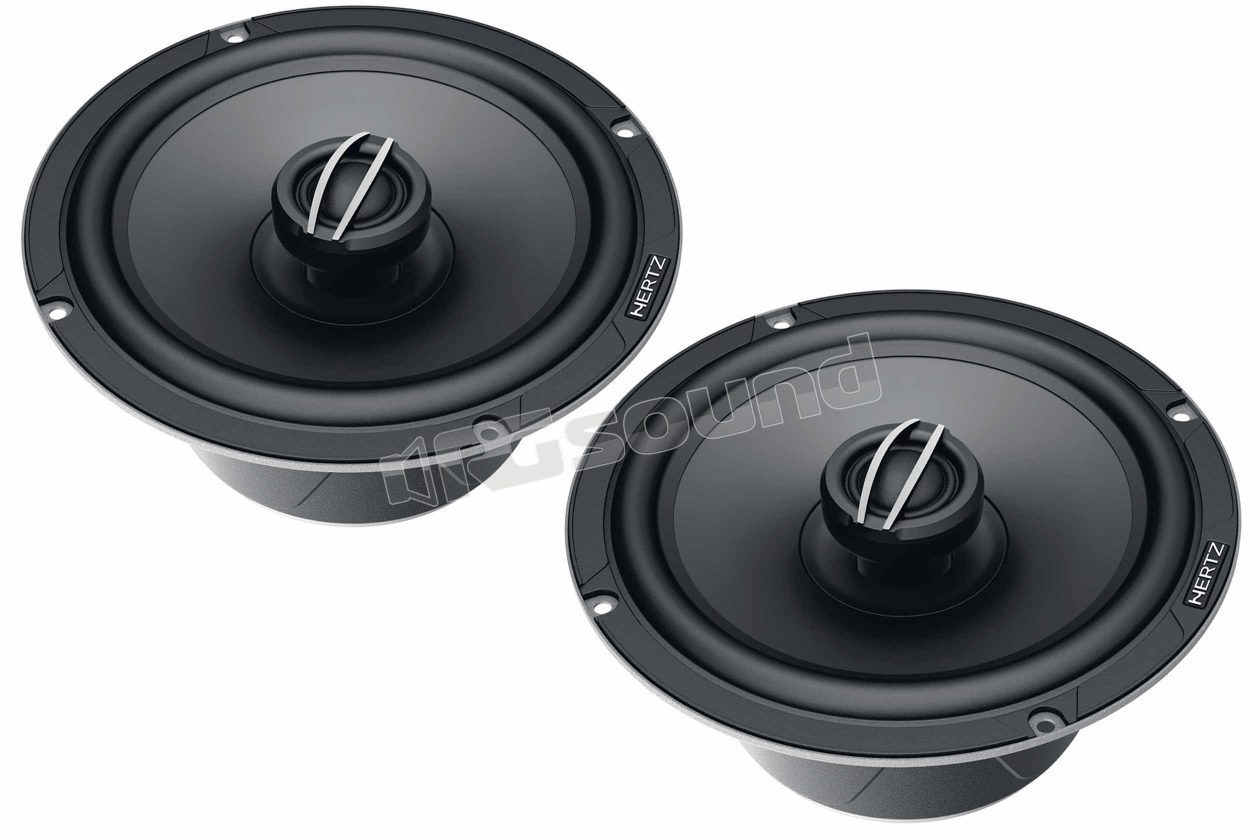

CPX 165 16.5 cm two-way coaxial speakers

Hertz
Your price:
€ 139,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
45 - 22.000 Hertz
MAX Power
285 Watt
RMS Power
95 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cono in cellulosa pressata
Tweeter Material
Neodimio

Hertz CPX 165 Pair of 16.5 cm two-way coaxial speakers Cento Pro Series

The CPX 165 coaxial speakers feature a tweeter with Tetolon dome and the Neodymium magnet has exceptional off-axis dispersion characteristics and frequency extension for airy and detailed sound.

The Radial Venting System technology ensures optimal cooling of the coil thanks to eight holes placed at the base of the motor that allow air exchange with the tweeter support. This acts as a rear chamber, sized for low Fs, to ensure a natural midrange and allow low crossover frequency with the woofer.

The pressed-paper cone and butyl rubber surround offer extended low-end response and excellent punch. The basket with design inspired by the Mille has the magnet coated in damping and protective rubber. The grille, available as an optional, is composed of a sturdy high-resistance ABS frame and metallic protective mesh.

CPX 165 Features

  • Soft dome tweeter in Tetolon fiber with 20 mm voice coil cooled with ferrofluid, for extended and natural high frequencies.
  • Radial Venting System technology with eight ventilation holes for optimal coil cooling and natural midrange obtained, from the tweeter's low Fs, thanks to air exchange with the support which acts as a large tuning chamber.
  • Pure copper coil 25 mm in diameter to ensure high excursion.
  • Pressed-paper cone with optimized geometry using FEM technique, combines rigidity and lightness for a coloration-free sound.
  • High flux density ferrite magnet combined with low carbon content pole pieces, for lower distortion at high power levels.
  • Compact 3-spoke basket acoustically transparent combined with a magnet cover in anti-vibration rubber for total damping of spurious vibrations.
  • Elegant grille with high-resistance ABS plastic structure with combined metallic finish

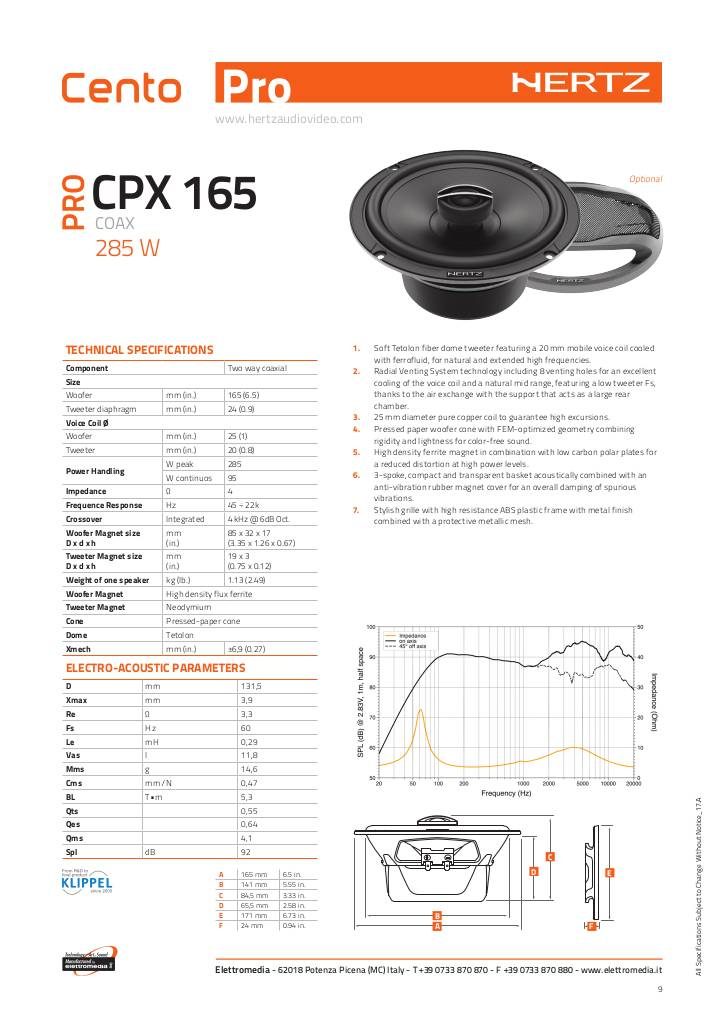

Scheda tecnica

n-20230412125116-hertz-cento-pro-cpx165-tech-sheet.pdf

Hertz CPX 165 Technical Specifications

  • Woofer 165 mm (6.5")
  • Tweeter diaphragm 24 mm (0.9")
  • Woofer voice coil 25 mm (1")
  • Tweeter voice coil 20 mm (0.8")
  • Maximum power 285 W
  • Nominal power 95 W
  • Impedance 4 Ohm
  • Frequency response 45 ÷ 22k Hz
  • Crossover 4 kHz @ 6dB Oct.
  • Woofer magnet dimensions D x d x h 85 x 32 x 17 mm (3.35 x 1.26 x 0.67")
  • Tweeter magnet dimensions D x d x h 19 x 3 mm (0.75 x 0.12")
  • Weight of each speaker 1.13 kg (2.49 lb)
  • Woofer Magnet High density flux ferrite
  • Tweeter Magnet Neodymium
  • Cone Pressed-paper cone
  • Dome Tetolon
  • Xmech mm (in.) ±6.9 (0.27)
