CPK 165 Two-way system consisting of woofer, tweeter and integrated crossovers

Name: CPK 165 Two-way system consisting of woofer, tweeter and integrated crossovers
Brand: Hertz
SKU: 34-41279
Price: 219.00 EUR
Availability: InStock

CPK 165 Two-way system consisting of woofer, tweeter and integrated crossovers Hertz

Official Italian warranty

Your price:

€ 219,00

Price per single item (VAT included)

In stock, ready to ship

Calculating shipping costs to

Product code: #041279
Type: Speaker Systems - 2-Way Speaker Kits
Manufacturer: Hertz
Website: https://www.hertzaudiovideo.com

Type: 2-way separate kit
Frequency Response: 45 - 22.500 Hertz
Woofer Size: 165 mm
Tweeter Size: 29 millimetri
MAX Power: 315 Watt
RMS Power: 105 Watt
Sensitivity: 92,5 dB
Impedance: 4 Ohm
Woofer Material: Cono in cellulosa pressata
Tweeter Material: Cupola morbida in fibra

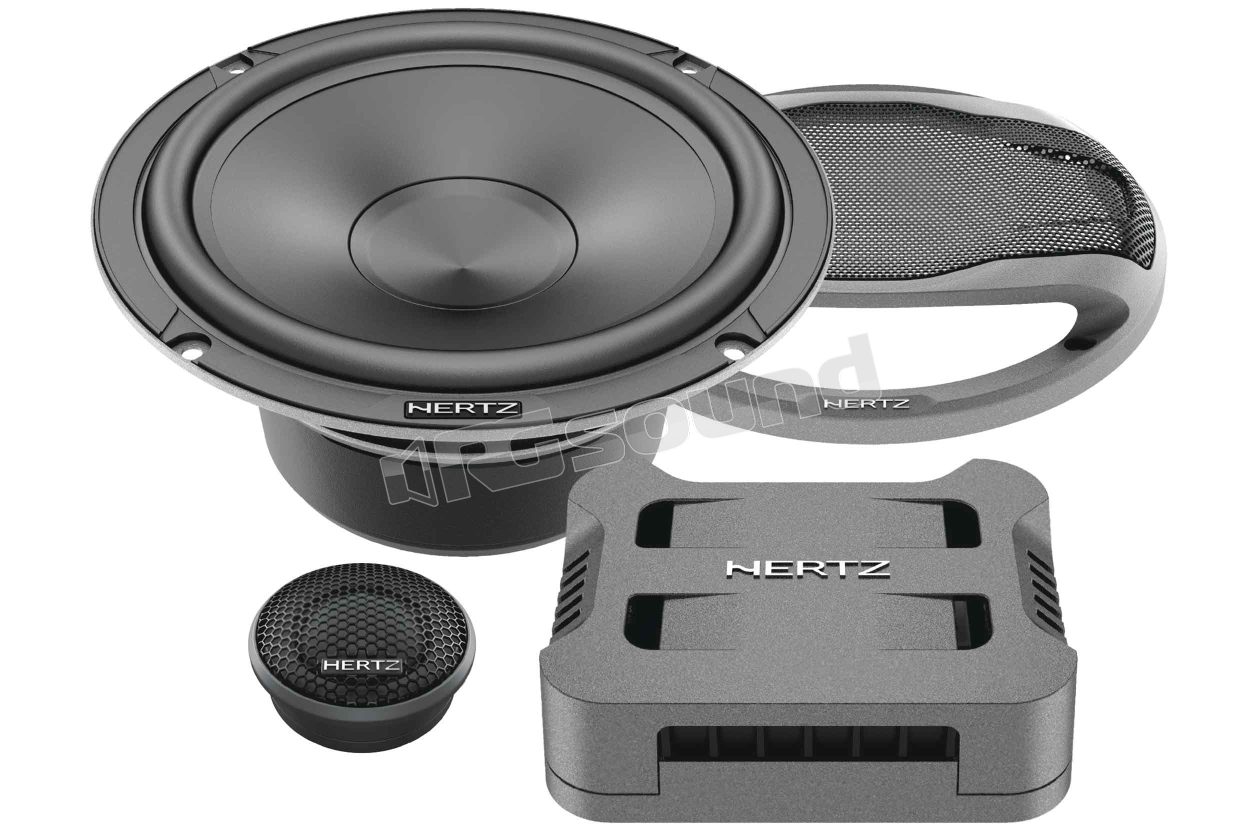

Hertz CPK 165 Two-way kit with woofer CP 165, tweeter CP 25 crossover CPCX 2

The tweeters of the CPK 165 kit are made with a Tetolon dome and 25 mm voice coil, elements that give it a very extended and linear frequency response. The CP 25 woofers, in turn, benefit from the "Center Tuning Duct" technology: the tunnel at the center of the powerful Neodymium magnetic circuit allows low-resistance air exchange between the dome and the rear loading chamber, perfectly tuning its acoustics.

This results in a low resonant frequency, functional for crossover with the woofer, to the advantage of the sound stage which remains wide in height. The sophisticated design of the mobile group and suspensions of the CP 165 woofer, with resonant frequency calibrated at 60 Hz, gives it a powerful mid-bass with excellent punch, making listening to genres rich in low frequencies a unique experience. The basket respects the Mille family-feeling with the addition of damping and protective rubber: the cone material derives from the Mille Pro, as does the butyl rubber of the suspensions and the Tetolon fiber of the tweeter dome.

These materials have excellent damping and lightness characteristics, producing a balanced sound, free from resonance peaks. The CPCX 2 crossover with 12 dB/Oct. cut-off uses hi-grade components such as air-wound inductances and 160v polyester capacitors. It allows three tweeter level adjustments (-2, 0, +2 dB) ensuring optimal and customizable tonal balance, all in a compact high-resistance ABS case with metallized finish. Included in the package are the woofer grilles made from a combination of metal mesh and high-resistance ABS plastic frame. The combination of these two elements allows you to customize the installation with a refined and elegant design.

The Kit consists of:

Tweeter CP 25

Soft 29 mm tetolon fiber dome, for natural and at the same time detailed reproduction of musical nuances.
"Center Tuning Duct" geometry, for a lower resonant frequency and reduced harmonic distortion.
Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
25 mm voice coil cooled with ferrofluid.
Rear chamber filled with selected and sized damping material for low resonance, ensuring a natural midrange and low crossover frequency with the woofer.
Faceplate geometry optimized with FEM (Finite Element Modeling) technique for linear frequency response in off-axis installations.
Wide range of accessories, for easy integration in pre-installation.

Woofer CP 165

Pressed paper cone with geometry optimized using FEM technique, combines rigidity and lightness for a sound free from colorations.
High flux density ferrite magnet combined with low carbon content polar plates, for less distortion at high power levels.
Pure copper 25mm diameter voice coil to ensure high excursions.
Compact 3-spoke basket and acoustically transparent combined with a vibration-damping rubber magnet cover for complete suppression of spurious vibrations.
Elegant grille with high-resistance ABS plastic structure with metallized finish combined with a metal protection mesh.

Crossover CPCX 2

Tweeter level adjustment via three-position switch (-2, 0, +2 dB) for optimal and user-customizable tonal balance.
Metallized 160 V polyester film capacitors of extremely high quality with ultra-low DF value and low-resistance pure copper inductances, for maximum sound transparency and clear high frequencies.
Compact design with metallized finish for the benefit of installation simplicity, with air vents for efficient heat dissipation.
