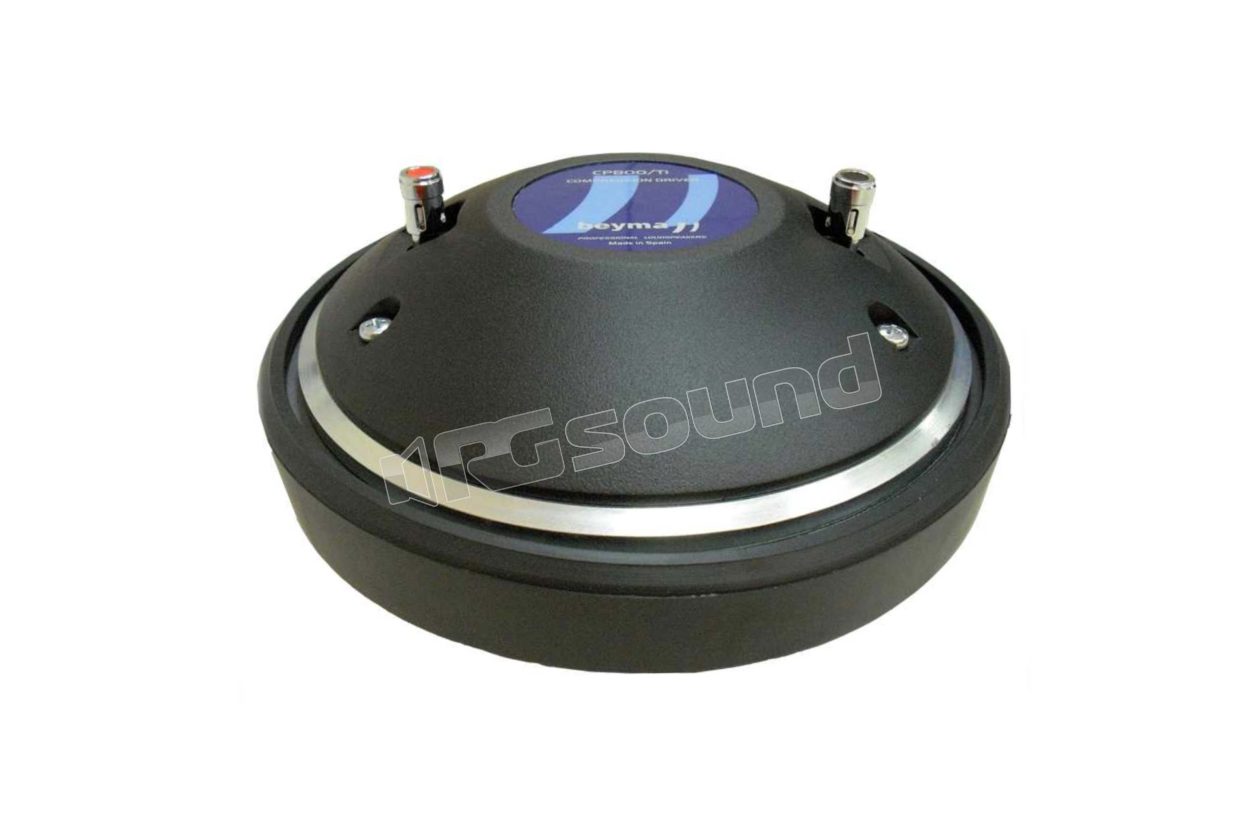

CP-800/Ti 10 cm compression tweeter

Beyma
Your price:
€ 477,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
100 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
500 - 20.000 Hertz
Sensitivity
112 dB
Impedance
8 Ohm
Weight
10 Kg
Installation Depth
117 mm
Voice Coil Diameter
101 mm

Beyma CP-800/Ti 10 cm compression tweeter 8 Ohm

Features

  • Throat diameter 50.8 mm 2 in
  • Nominal impedance 8 Ohm
  • Minimum impedance 7 ohm @ 0.8 kHz
  • Ri 5.6 ohm
  • Power handling 100 W AES above 500 Hz
  • Program power 200 W above 500 Hz
  • Sensitivity 112 dB 1 W @ 1 m coupled to horn
  • Frequency range 500-20000 Hz
  • Recom. crossover frequency 500 Hz or higher (minimum slope 12 dB / oct.)
  • Voice coil diameter 101.6 mm 4 in
  • Flux density 1.75 T
  • BL factor 15 N / A
  • Diaphragm material Titanium
  • Ferrite magnet
  • External diameter 228 mm 9 in
  • Depth 117 mm 4.6 inches
  • Mounting: four M6 threaded holes. 90º apart
  • Diameter of 101.6 mm (4 inches).
  • Mounting hardware is supplied in the package
  • Net weight 10.3 kg 20.6 pounds
  • Total weight 11 kg 22 pounds

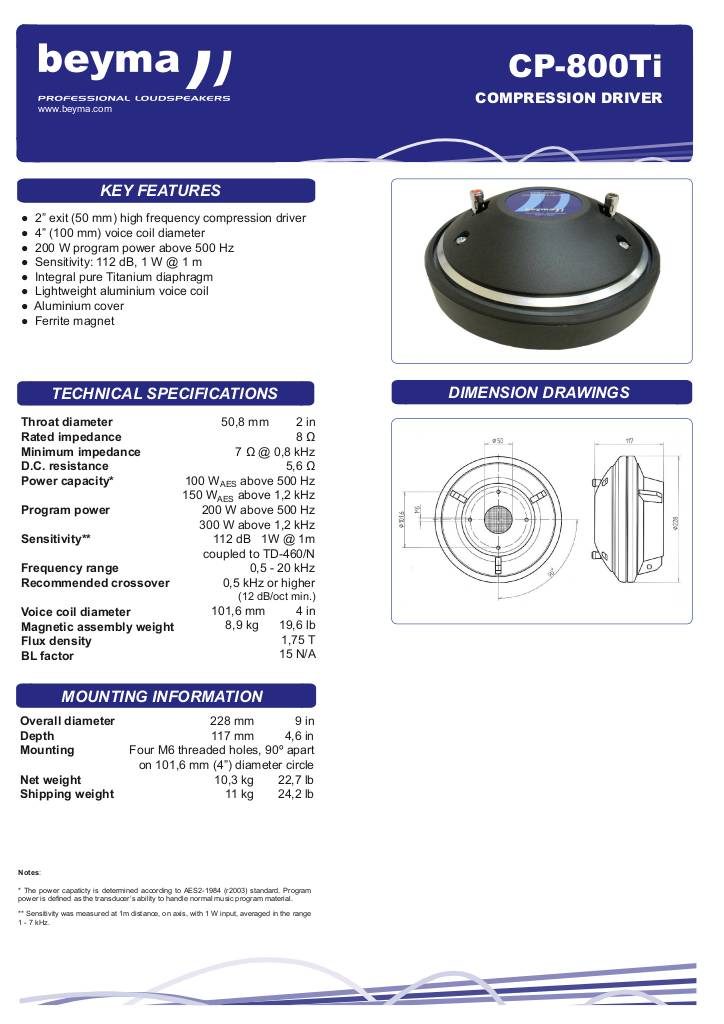

Scheda tecnica

n-20180919125208-cp-800-ti.pdf
€ 477,00 Price incl. VAT
