CP-755TI

Beyma
Your price:
€ 259,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
150 mm
MAX Power
120 Watt
RMS Power
60 Watt
Frequency Response
600 - 20.000 Hertz
Sensitivity
112 dB
Impedance
8 Ohm
Weight
3 Kg
Installation Depth
65 mm
Voice Coil Diameter
72 mm

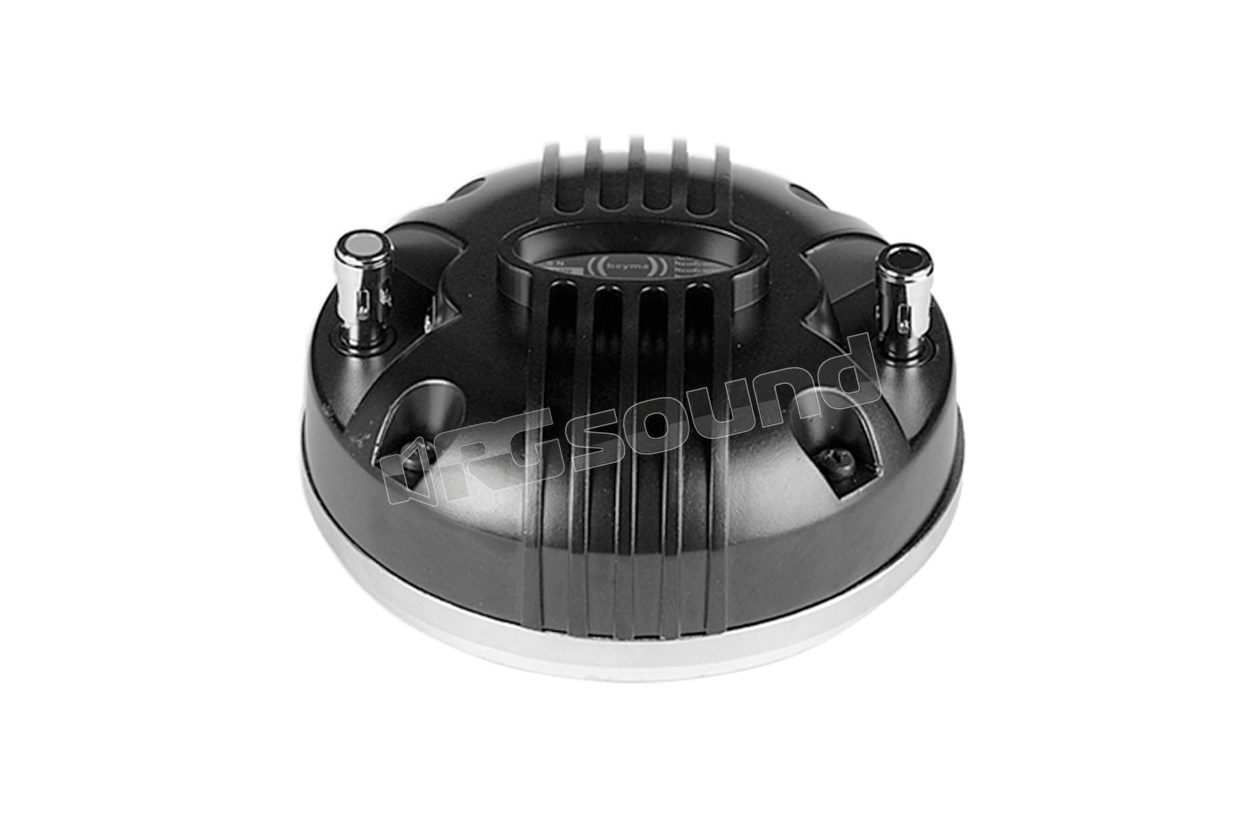

Beyma CP-755TI compression driver 8 Ohm

Throat diameter 36 mm 1.4 inches
Nominal impedance 8 Ohm
Minimum impedance 7.3 ohm @ 3.5 kHz
Ri 5.5 ohm
Power handling 60 W AES above 800 Hz
Program power 120 W above 800 Hz
Sensitivity 112 dB 1 W @ 1 m coupled to horn
Frequency range 600-20000 Hz
Recom. crossover frequency 800 Hz or higher (minimum slope of 12 dB / oct.)
Voice coil diameter 72.2 mm 2.9 inches
Flux density 2.2 T
BL factor 11.5 N / A
Diaphragm material aluminum dome with polyester coating
External diameter 145 mm 5.7 in
Depth 65 mm 2.56 inches
Mounting four threaded holes M6. 90º apart
Circle diameter of 101.6 mm (4 inches)
Mounting hardware is supplied in the package
Net weight 2.96 kg 6.51 pounds
Total weight 3.21 kg 7.06 pounds
Neodymium magnet

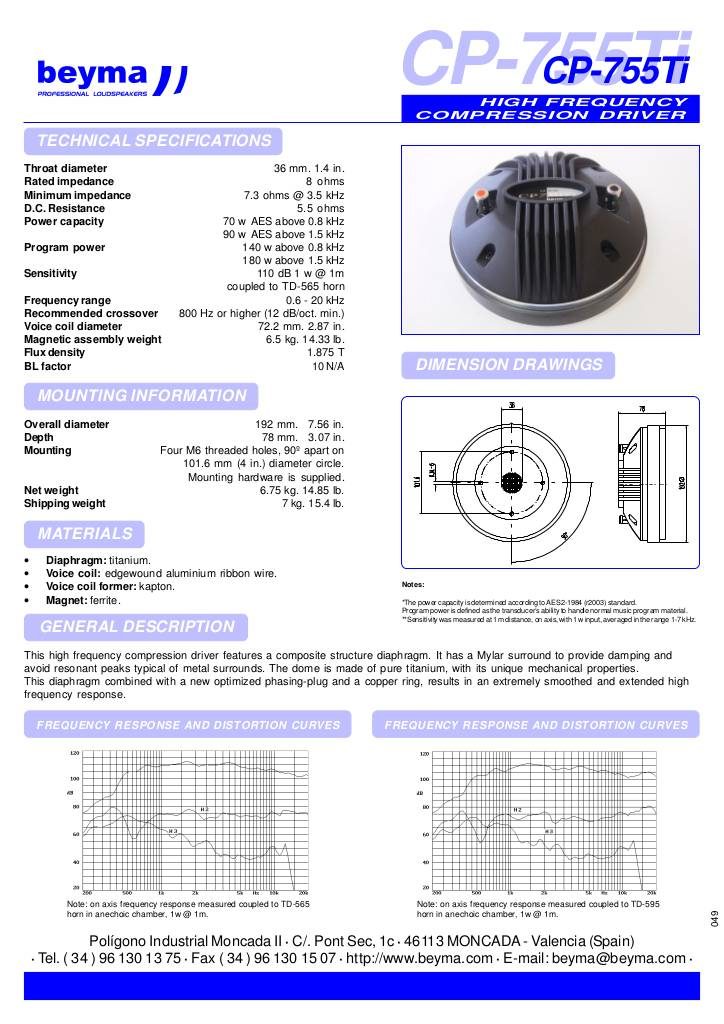

Scheda tecnica

n-20180919125939-cp-755ti.pdf
€ 259,00 Price incl. VAT
