CP-755Nd

Beyma
Your price:
€ 421,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
150 mm
MAX Power
120 Watt
RMS Power
60 Watt
Frequency Response
600 - 20.000 Hertz
Sensitivity
112 dB
Impedance
8 Ohm
Weight
3 Kg
Installation Depth
65 mm
Voice Coil Diameter
72 mm

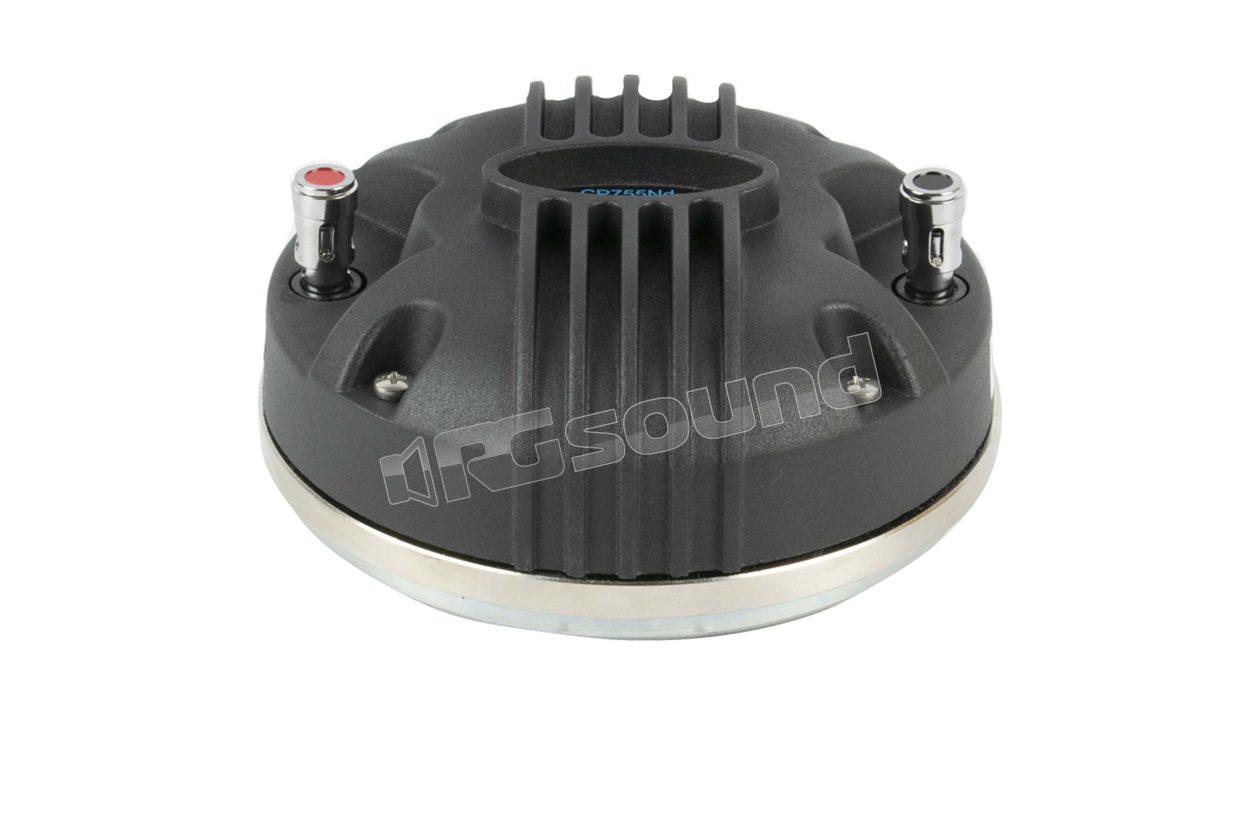

Beyma CP-755Nd compression tweeter 8 Ohm

Throat diameter 36 mm 1.4 inches

Nominal impedance 8 Ohm

Minimum impedance 7.3 ohm @ 3.5 kHz

Ri 5.5 ohm

Power handling 60 W AES above 800 Hz

Program power 120 W above 800 Hz

Sensitivity 112 dB 1 W @ 1 m coupled to horn

Frequency range 600-20000 Hz

Recom. crossover frequency 800 Hz or higher (minimum slope of 12 dB/oct.)

Voice coil diameter 72.2 mm 2.9 inches

Flux density 2.2 T

BL factor 11.5 N/A

Diaphragm material titanium dome with polyester coating

Diameter 145 mm 5.7 in

Depth 65 mm 2.56 inches

Mounting four M6 threaded holes. 90º apart

Mounting hardware is supplied

Net weight 2.96 kg 6.51 pounds

Total weight 3.21 kg 7.06 pounds

Neodymium magnet

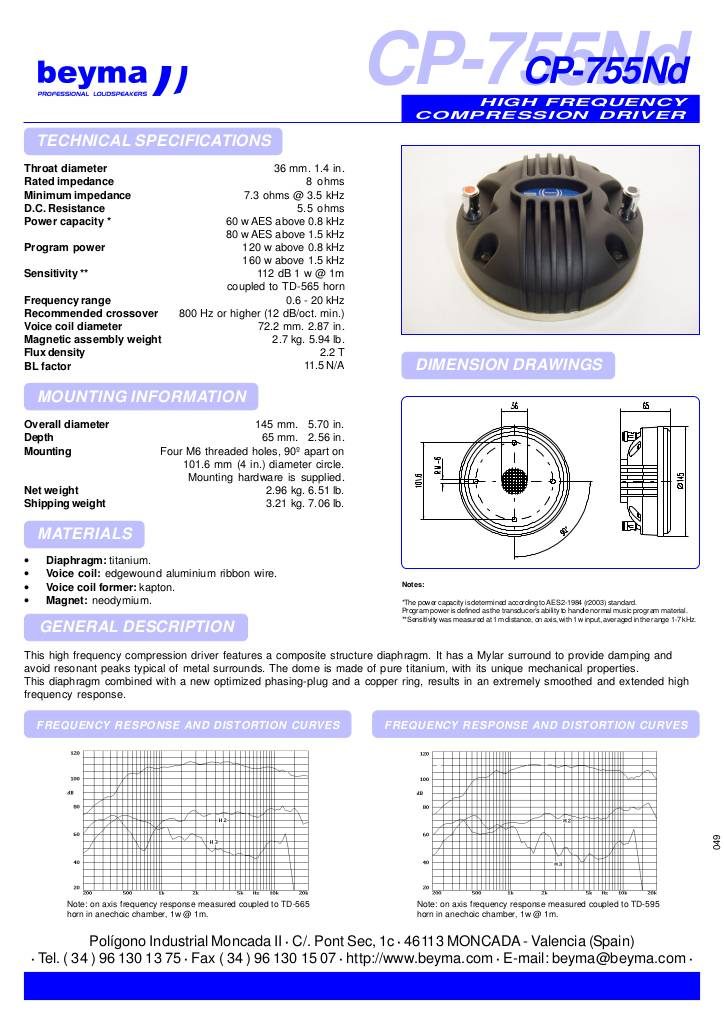

Scheda tecnica

n-20180919125739-cp-755nd.pdf
€ 421,00 Price incl. VAT
