CP-22

Beyma
Your price:
€ 106,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
100 mm
MAX Power
50 Watt
RMS Power
20 Watt
Frequency Response
4.000 - 20.000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
1,6 Kg
Installation Depth
71 mm
Voice Coil Diameter
37,6 mm

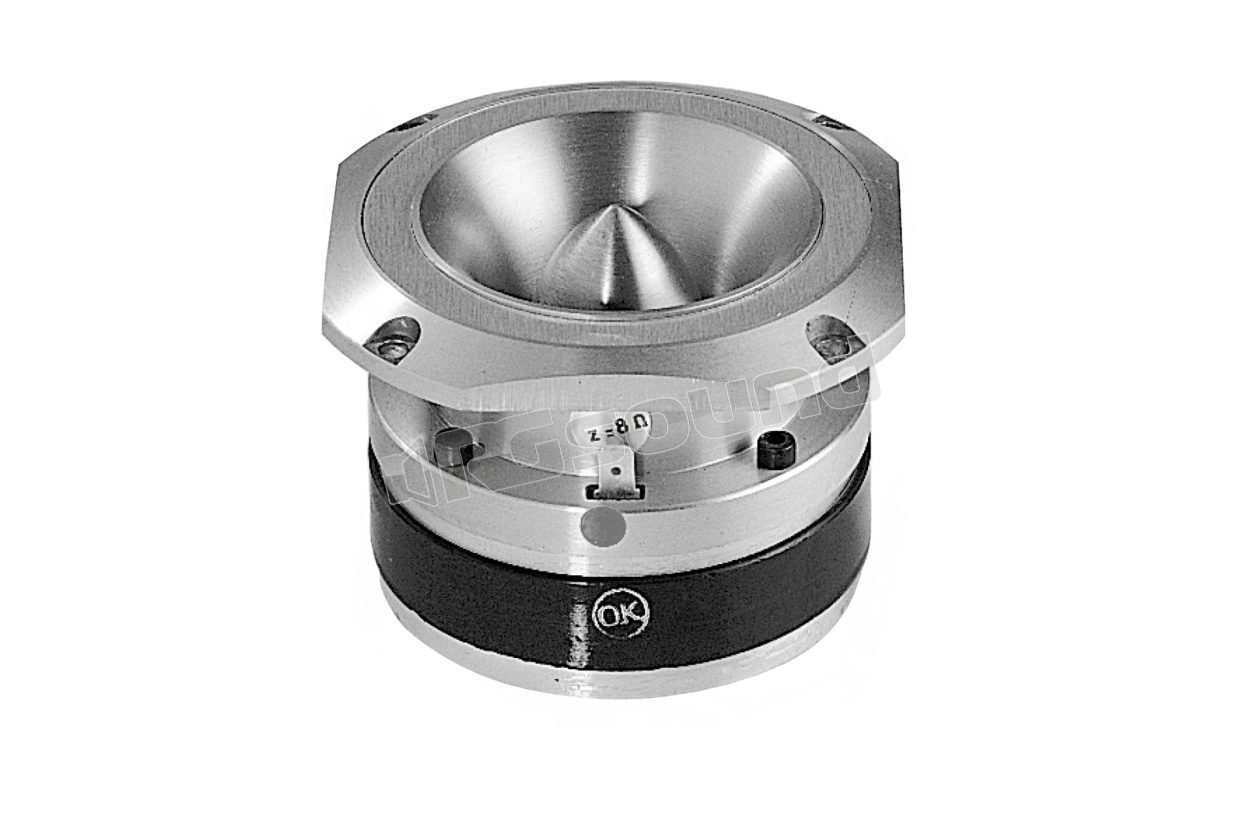

Beyma CP-22 compression tweeter 10 cm with high sensitivity of 107 dB, impedance 8 Ohm

This compression tweeter is designed for use in speaker systems and sound amplification applications that require high output, controlled dispersion. This model produces a very high output level with flat response and excellent transient attack. This unit is equipped with an aluminum voice coil diaphragm assembly.

Beyma CP22 technical features

Nominal impedance 8 Ohm

Minimum impedance 8.5 ohm @ 9 kHz

Re 6.1 ohm

Power capacity 25 W AES

Program power 50 W

Sensitivity 107 dB 1 W @ 1 m

Frequency range 4000-20000 Hz

Recom. crossover frequency 5 kHz or higher (12 dB/oct. min slope)

Dispersion HxV 40º conical

Voice coil diameter 37.6 mm 1.5 in

Flux density 1.55 T

BL factor 5.2 N/A

Diaphragm material Aluminium

External diameter 102x102 mm 4x4 in

Depth 71 mm 2.79 in

Cutout diameter ø 92 mm 3.62 in

Bolt circle diameter 107 mm 4.21 in

Net weight 1.6 kg 3.5 lb

Total weight 1.67 kg 3.67 lb

Magnet Ferrite

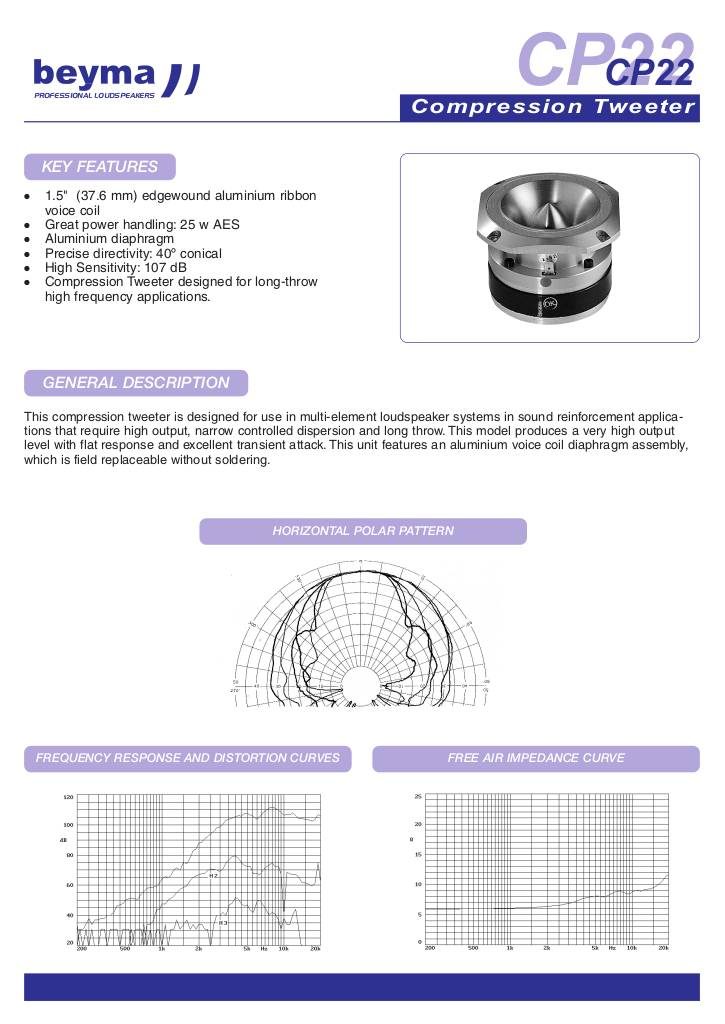

Scheda tecnica

n-20180511142930-cp-22.pdf
