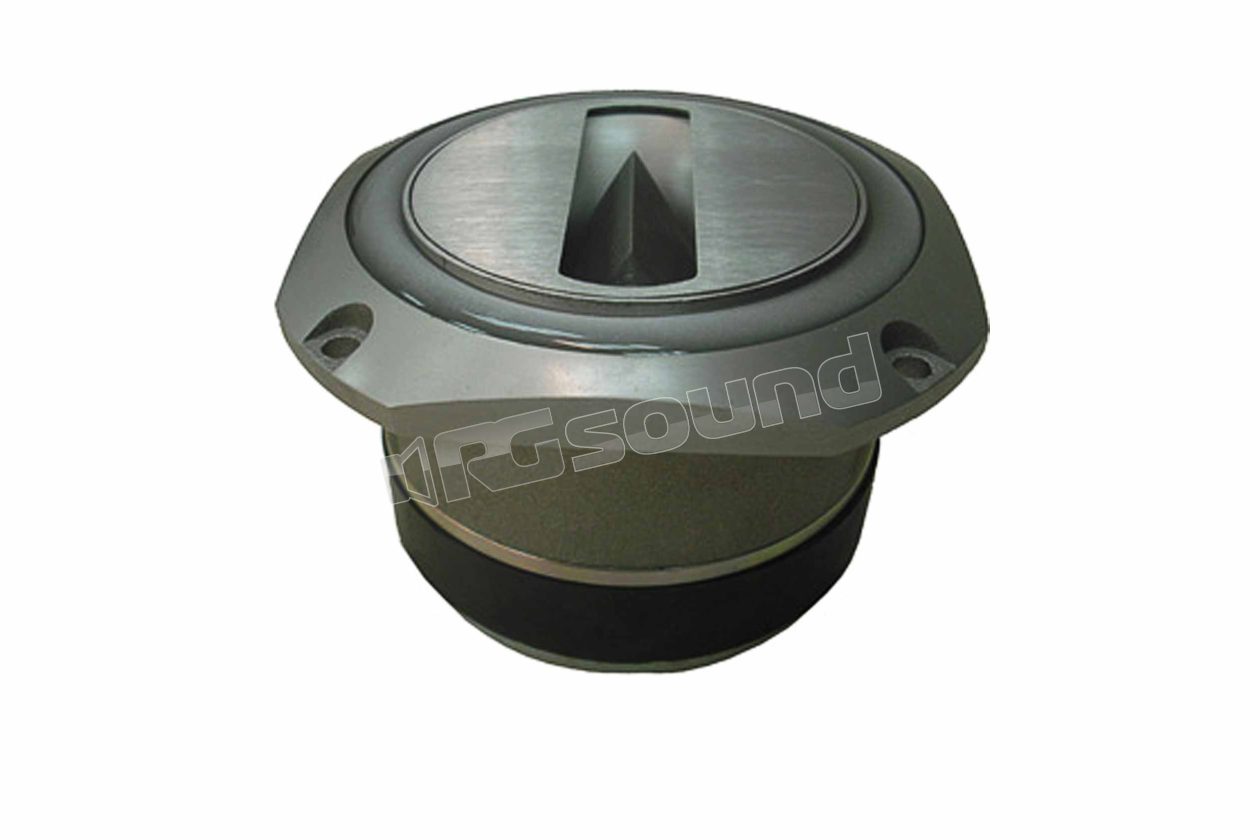

CP-21/F Compression tweeter

Beyma
Your price:
€ 111,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
100 mm
MAX Power
50 Watt
RMS Power
25 Watt
Frequency Response
3500 - 20.000 Hertz
Sensitivity
105 dB
Impedance
8 Ohm
Weight
1,7 Kg
Installation Depth
72 mm
Voice Coil Diameter
38 mm

Beyma CP-21/F Compression tweeter 10 cm, 8 Ohm impedance, with 38 mm aluminum voice coil

CP-21/F Features

  • Excellent power handling: 25 WAES
  • High sensitivity: 105 dB (1W / 1m)
  • Aluminum diaphragm
  • Wide horizontal dispersion: 140º
  • Designed for applications requiring wide horizontal space
  • Suitable for sound reinforcement, also in studioBeyma CP21F Technical Specifications
    Nominal impedance 8 Ohm
    Minimum impedance 8 ohm @ 9 kHz
    Re 6.1 ohm
    Nominal power 25 W AES
    Program power 50 W
    Sensitivity 105 dB 1 W @ 1 m coupled to horn
    Frequency range 3500 - 20000 Hz
    Recommended crossover frequency 5 kHz or higher (12 dB/oct.
    min. slope)
    Dispersion HxV 140x40º
    Voice coil diameter 37.6 mm 1.5 inches
    Flux density 1.55 T
    BL factor 5.2 N/A
    Diaphragm material Aluminum
    External diameter 102x102 mm 4x4 inches
    Depth 72 mm 2.83 inches
    Hole diameter ø 92 mm 3.62 inches
    Bolt circle diameter 107 mm 4.21 inches
    Net weight 1.7 kg 3.75 pounds
    Total weight 1.75 kg 3.85 pounds
    Magnet Ferrite

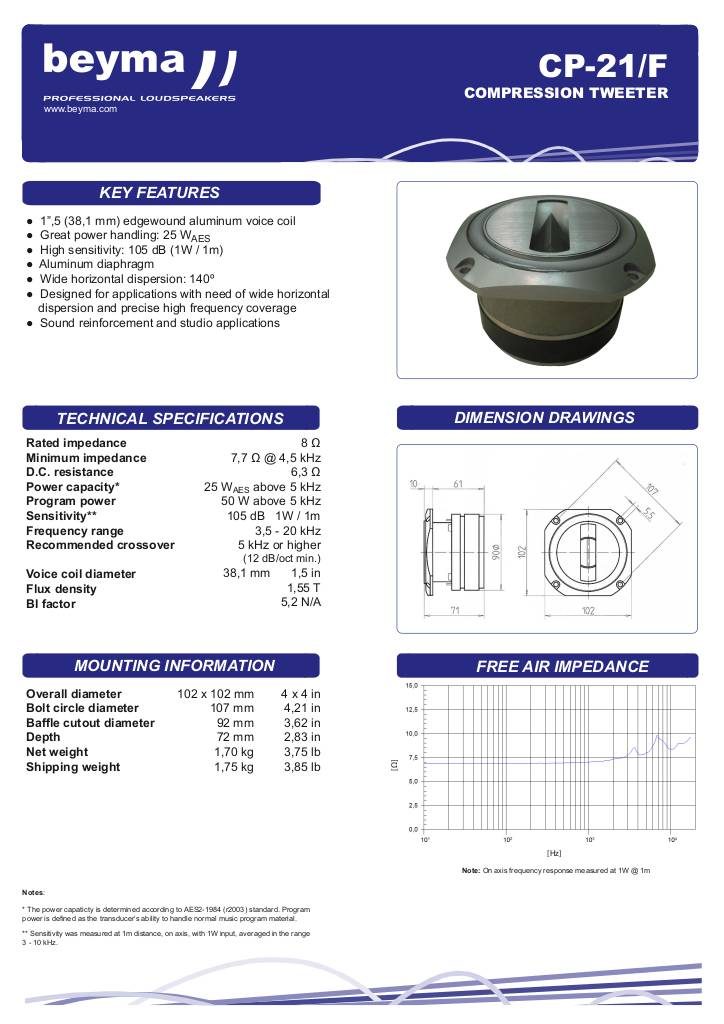

Scheda tecnica

n-20180511110537-cp-21-f.pdf

Beyma CP21F Technical Specifications

  • Nominal impedance 8 Ohm
  • Minimum impedance 8 ohm @ 9 kHz
  • Re 6.1 ohm
  • Nominal power 25 W AES
  • Program power 50 W
  • Sensitivity 105 dB 1 W @ 1 m coupled to horn
  • Frequency range 3500 - 20000 Hz
  • Recommended crossover frequency 5 kHz or higher (12 dB/oct.
  • min. slope)
  • Dispersion HxV 140x40º
  • Voice coil diameter 37.6 mm 1.5 inches
  • Flux density 1.55 T
  • BL factor 5.2 N/A
  • Diaphragm material Aluminum
  • External diameter 102x102 mm 4x4 inches
  • Depth 72 mm 2.83 inches
  • Hole diameter ø 92 mm 3.62 inches
  • Bolt circle diameter 107 mm 4.21 inches
  • Net weight 1.7 kg 3.75 pounds
  • Total weight 1.75 kg 3.85 pounds
  • Magnet Ferrite
€ 111,00 Price incl. VAT
