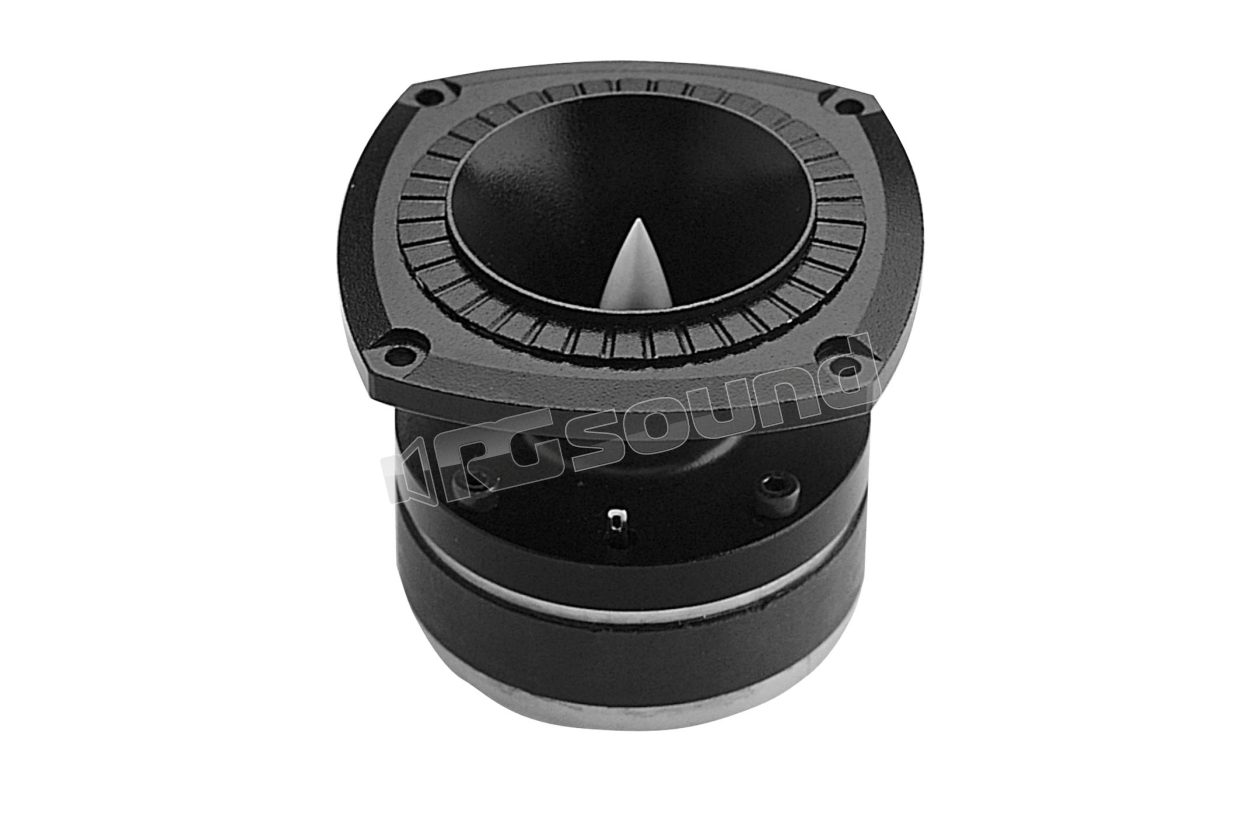

CP-12/N

Beyma
Your price:
€ 48,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
87 mm
MAX Power
30 Watt
RMS Power
15 Watt
Frequency Response
3.000 - 20.000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
0,75 Kg
Installation Depth
72 mm
Voice Coil Diameter
25,8 mm

Beyma CP-12/N compression tweeter with 1" (25.8 mm) aluminum voice coil, 8 Ohm impedance, 15 W nominal power, high sensitivity 107 dB.

Designed for outdoor applications, semi-professional and high fidelity systems.

Beyma CP12/N technical features

Nominal impedance 8 Ohm

Minimum impedance 8 ohm @ 8 kHz

Re 5 ohm

Power capacity 15 W AES

Program power 30 W

Sensitivity 107 dB 1 W @ 1 m

Frequency range 3000-20000 Hz

Recom. crossover frequency 6 kHz or higher (12 dB/oct. min slope)

Dispersion HxV 40º conical

Voice coil diameter 25.8 mm 1 in

Flux density 1.4 T

BL factor 4 N/A

Diaphragm material Aluminium

External diameter 87x87 mm 3.4x3.4 in

Depth 72 mm 2.83 in

Cutout diameter ø 74 mm 2.9 in

Bolt circle diameter 91 mm 3.58 in

Net weight 0.75 kg 1.65 lb

Total weight 0.85 kg 1.87 lb

Magnet Ferrite

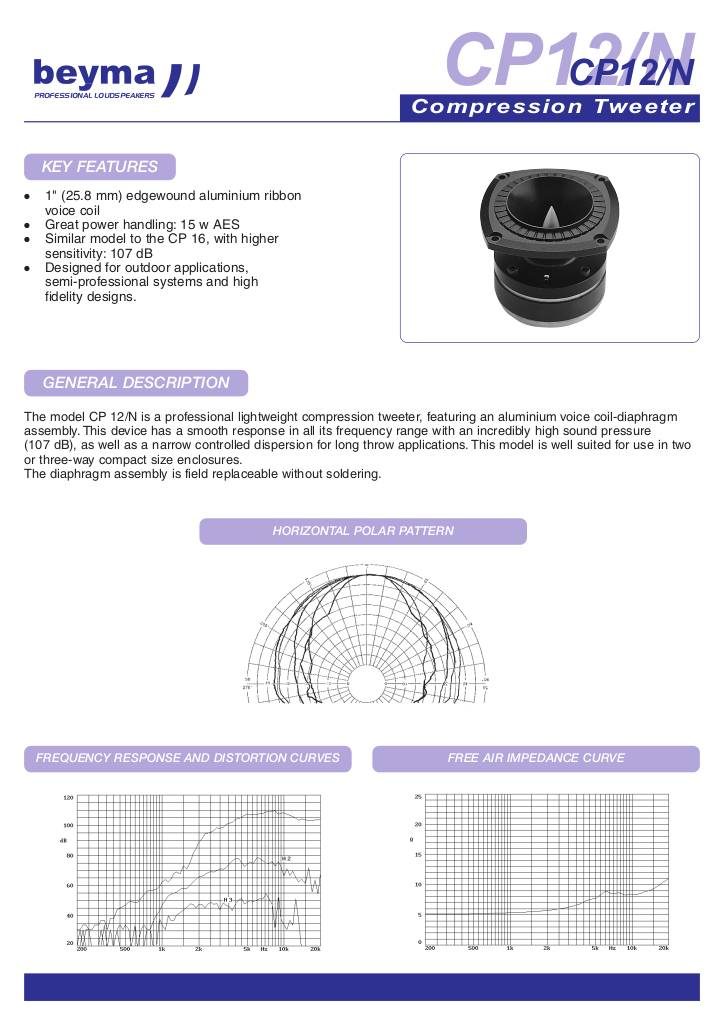

Scheda tecnica

n-20180511145220-cp-12-n.pdf
€ 48,00 Price incl. VAT
