CP-09

Beyma
Your price:
€ 56,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
100 mm
MAX Power
30 Watt
RMS Power
15 Watt
Frequency Response
2.000 - 20.000 Hertz
Sensitivity
104 dB
Impedance
8 Ohm
Weight
0,75 Kg
Installation Depth
96 mm
Voice Coil Diameter
25,8 mm

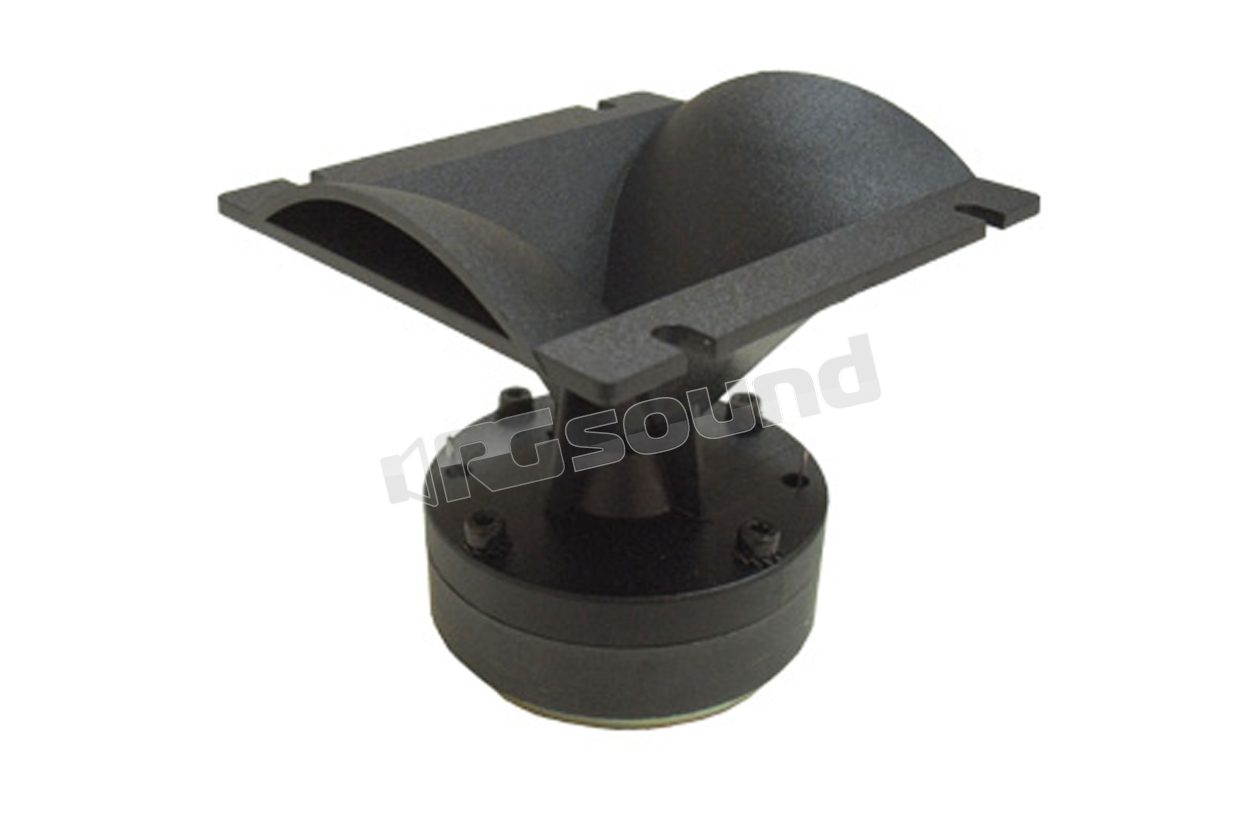

Beyma CP-09 horn tweeter with 8 Ohm impedance, rated power 15 W and high sensitivity of 104 dB

Extended frequency range: 2 - 20 kHz, 1" (25.4 mm) aluminum diaphragm and voice coil. Excellent transient response, constant directivity horn to achieve extended coverage angle: 90º x 60º.

Beyma CP09 technical specifications

Nominal impedance 8 Ohm

Minimum impedance 7.5 ohm @ 8 kHz

Re 5 Ohm

Power capacity 15 W AES

Program power 30 W

Sensitivity 104 dB 1 W @ 1 m coupled to horn

Frequency range 2000 - 20000 Hz

Recom. crossover frequency 6 kHz or higher (12 dB/oct. min slope)

Dispersion HxV 90x60º

Voice coil diameter 25.8 mm 1 in

Flux density 1.4 T

BL factor 4 N/A

Diaphragm material Aluminium

External diameter 98x92 mm 3.85x3.6 in

Depth 96 mm 3.78 in

Cutout diameter 90x70 mm 3.54x2.75 in

Net weight 0.75 kg 1.65 lb

Total weight 0.85 kg 1.87 lb

Magnet Ferrite

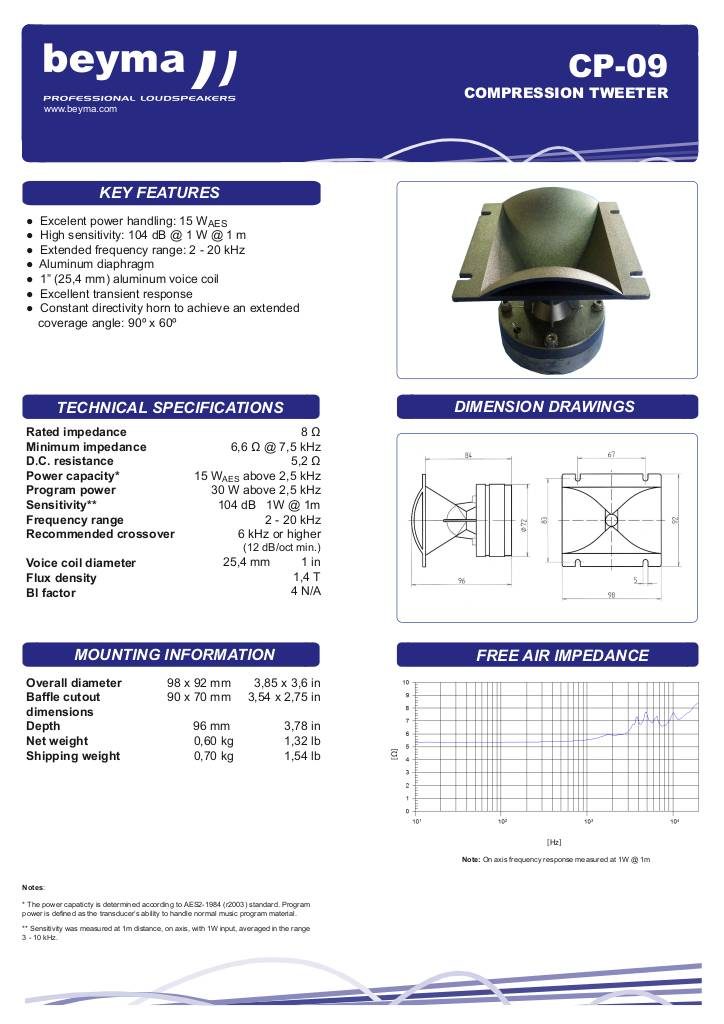

Scheda tecnica

n-20180511161939-cp-09.pdf
