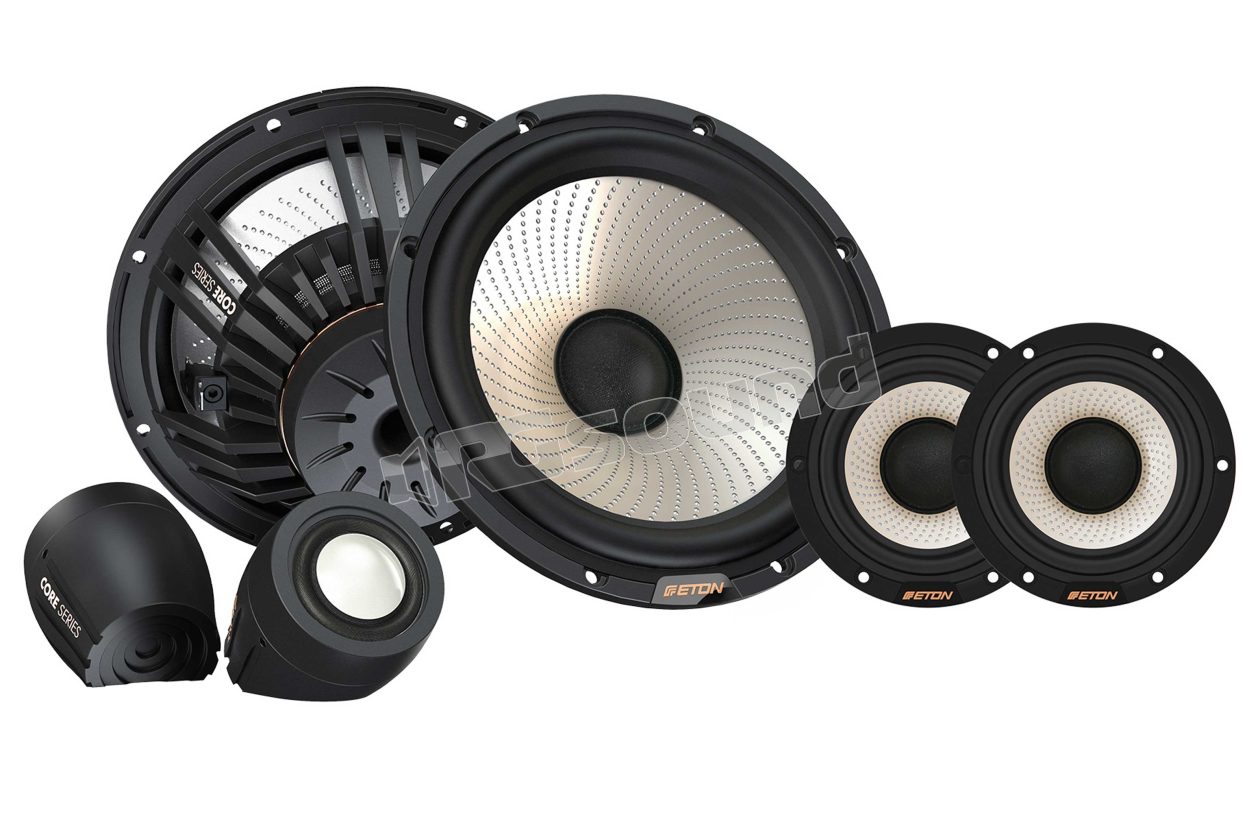

CORE S3 high-end 3-way system with 165 woofer and 80 mm midrange - EISA Award 2019/2020

ETON
Your price:
€ 2999,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
80 millimetri
Tweeter Size
28 millimetri
MAX Power
140 Watt
RMS Power
90 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
Cono in magnesio composito

ETON CORE S3 award-winning 3-way high-end system composed of the 2-way CORE S2 kit and top-of-the-line CORE 80 midrange. CORE S3 is the ultimate sonic expression of ETON and every component is made with high-quality materials in combination with unique design.

CORE stands out for its revolutionary diaphragm technology, which consists of a perforated composite magnesium diaphragm; it is perforated in an extremely complex process and covered with an olefinic film. This treatment creates subtle bubble-shaped curves that act as small vibration dampers and the result is excellent tonal balance with a warm sound.

Die-cast aluminum basket design is optimized for flow and associated with a powerful neodymium drive, equipped with heat dissipation channels, creates an extra-class speaker. The hand-coated fabric dust protection dome has an additional damping effect and gives the system a finer and clearer midrange. Thanks to impedance linearization, distortion has been reduced to a minimum. The tweeters stand out for the 3-layer ceramic magnesium sandwich cone and hand-coated fabric beads. They are vented in multiple stages and are located in a stiffened and asymmetrical coupling volume. This makes them ideal for the finest audio details. A very low resonance frequency with proprietary RCFS technology completes these masterpieces of sound art.

The CORE 80 midrange in magnesium composite convince across the board, they also feature the typical cone perforation and are covered with an olefin film, the dust protection dome with matte coating and the vented pole plate with multiple vented neodymium motor provide for a powerful disk. Combined with a fiberglass voice coil support for reduced eddy current effect, the symmetrically rotational strand guide to avoid rocking effects and the flow-optimized core hole with integrated damping foam, a true high-end midrange driver. The optimal symmetry of the magnetic field with the powder-coated die-cast aluminum basket extremely stable, optimized for flow and optimized for heat is a true jewel!

Eton Core S3 award-winning EISA IN-CAR HIGH-END COMPONENT 2019-2020

"Each of the speakers in the system is hand-crafted in Germany and equipped with innovative technology. This is why the Eton Core S3 represents true high-end in car speaker systems. The 8 cm midranges and 16.5 cm woofers use unique engineering, with perforated magnesium composite cones coated with an ultra-thin film to create a lightweight and rigid assembly with a "rippled" surface to break up resonances. This allows the system to deliver warm and soft sound, while the tweeters use a three-layer ceramic and magnesium sandwich for the dome with multi-stage ventilation to allow them to deliver the finest details. All of this contributes to offering the widest dynamics, neutrality and image quality of sound, for a true high-end in experience."

Manuale woofer e tweeter

n-20191122105446-bda-core-s2-v22-767-20180515-web.pdf

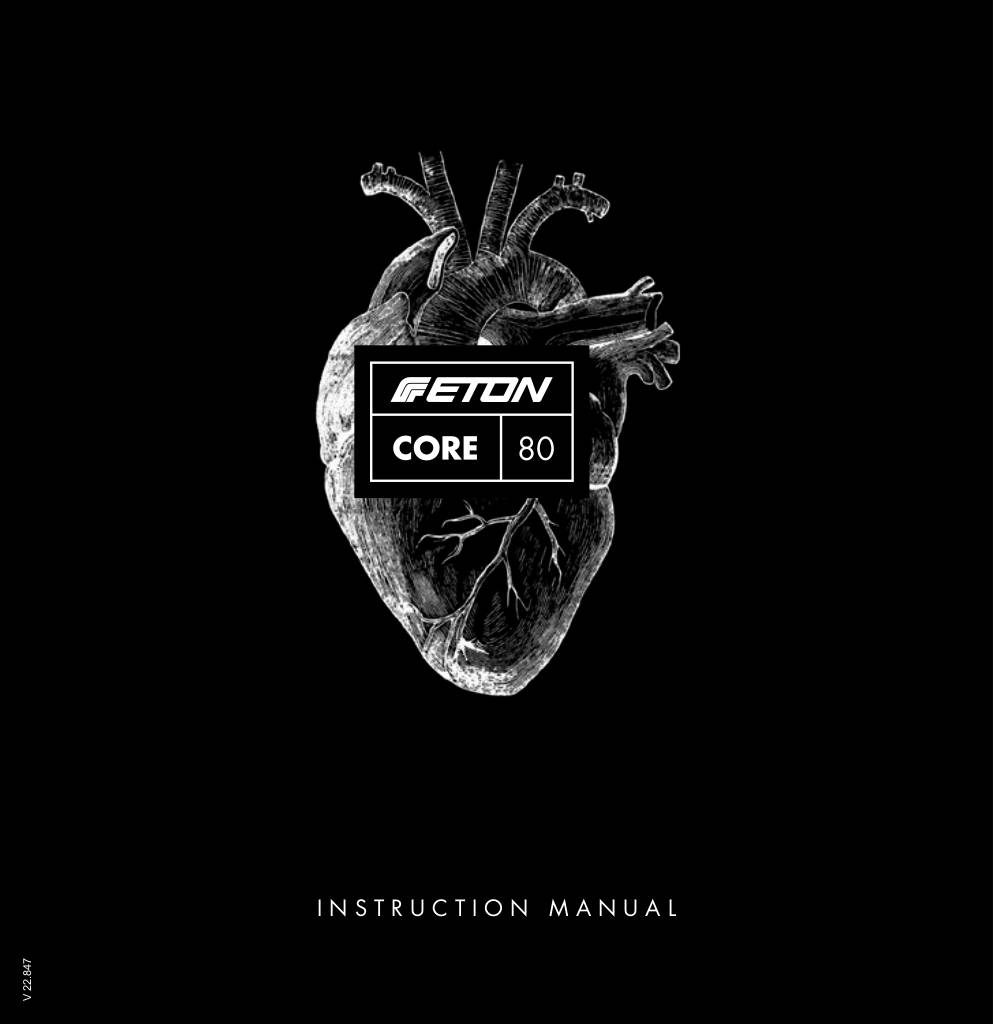

Manuale midrange

n-20191122105446-bda-core-80-bda-web.pdf

Eton Core S3 technical specifications

Midwoofer CORE S2 165 mm (6.5")
Tweeter CORE S2 28 mm (1")
Impedance 4 Ohm
Nominal / musical power 90/140 W.
Sound pressure 88 dB
Midwoofer external diameter 165 mm
Midwoofer installation hole diameter 146 mm
Midwoofer depth 79.5 mm

Midrange CORE 80 80 mm (3")
Impedance 4 Ohm
Nominal / musical power 25/40 W
Sound pressure level 87 dB
External diameter 94 mm
Drilling diameter 77 mm
Installation depth 42 mm
